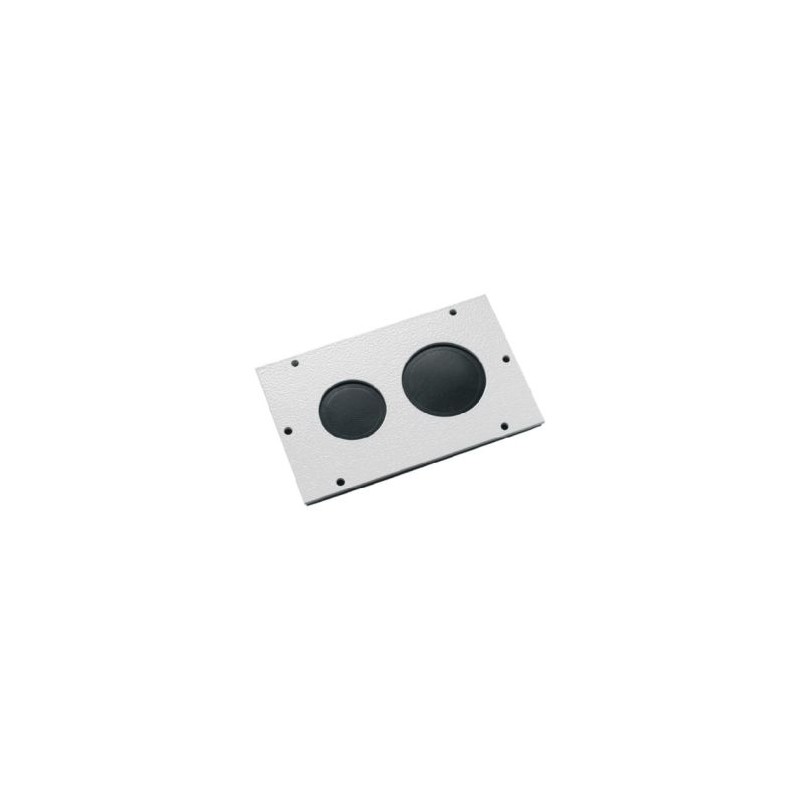

87663003 MURRPLASTIK Cable entry systems and holders cablequick® Type 120 (120x190 mm)
87663003
MURRPLASTIK
Cable entry systems and holders cablequick® Type 120 (120x190 mm)
cablequick ® KDP 120/2 C, ALU
KDP cablequick® Type 120 (120x190 mm)
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Tool-free, efficient connection technology for the electrical power sector. Performance cables and services are sealed and fed into control cabinets or junction boxes and are supported flexibly.
The stainless steel version is particularly suitable for application in the food and chemical areas. Integrated threaded bolts mean that no screws are visible from outside. Mounting set included in delivery.
V4A : 1.4571
ALU : 3.3535
ST : 1.0037
Labs free
-30°C – 90°C
NBR / EPDM
IP 65
CSA approval
| Type | Order No. | Colour | No. Openings | Openings No. Ø mm | MOQ qty. | A mm | B mm | a mm | b mm | c mm | d mm | e mm | g mm | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KDP 120/17 V4A | 87663143 | Smoothed | 17 |
| 1 | 120 | 190 | 164 | 94 | 88 | 53 | 5.5 | 65 | |||||||||||||||||||||
| KDP 120/2 B V4A | 87663141 | Smoothed | 2 |
| 1 | 120 | 190 | 164 | 94 | 88 | 53 | 5.5 | 65 | |||||||||||||||||||||
| KDP 120/2 C V4A | 87663142 | Smoothed | 2 |
| 1 | 120 | 190 | 164 | 94 | 88 | 53 | 5.5 | 65 | |||||||||||||||||||||
| KDP 120/2 V4A | 87663140 | Smoothed | 2 |
| 1 | 120 | 190 | 164 | 94 | 88 | 53 | 5.5 | 65 | |||||||||||||||||||||
| KDP 120/35 V4A | 87663144 | Smoothed | 35 |
| 1 | 120 | 190 | 164 | 94 | 88 | 53 | 5.5 | 65 | |||||||||||||||||||||
| KDP 120/2 ALU | 87663001 | Lichtgrau | 2 |
| 1 | 120 | 190 | 164 | 94 | 88 | 53 | 5.5 | 65 | |||||||||||||||||||||
| KDP 120/2 B ALU | 87663002 | Lichtgrau | 2 |
| 1 | 120 | 190 | 164 | 94 | 88 | 53 | 5.5 | 65 | |||||||||||||||||||||
| KDP 120/2 C ALU | 87663003 | Lichtgrau | 2 |
| 1 | 120 | 190 | 164 | 94 | 88 | 53 | 5.5 | 65 | |||||||||||||||||||||
| KDP 120/17 ALU | 87663004 | Lichtgrau | 17 |
| 1 | 120 | 190 | 164 | 94 | 88 | 53 | 5.5 | 65 | |||||||||||||||||||||
| KDP 120/35 ALU | 87663005 | Lichtgrau | 35 |
| 1 | 120 | 190 | 164 | 94 | 88 | 53 | 5.5 | 65 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87663003 87663003 EN_87663001.pdf | 793 Kbytes |
|
