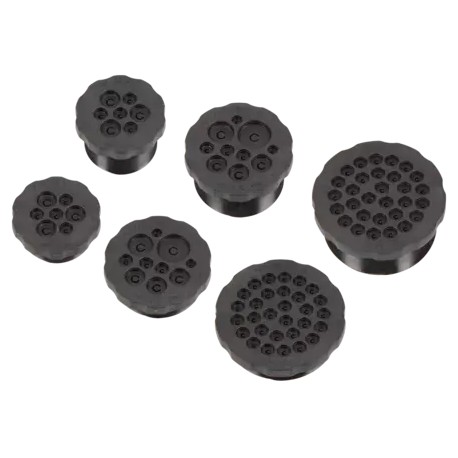

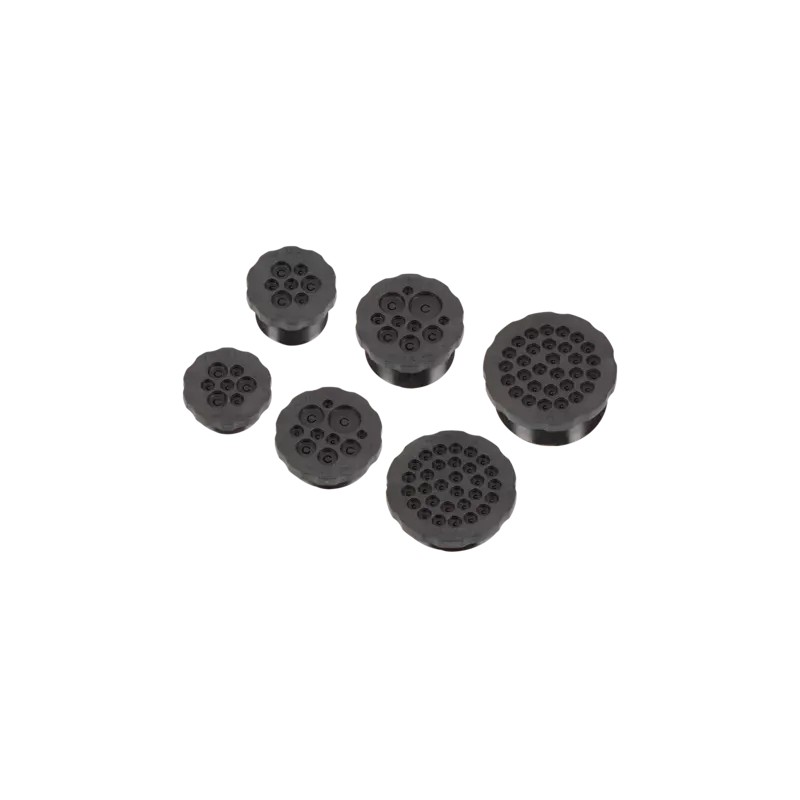

87303162 MURRPLASTIK Cable entry systems and holders Cable entry plate, round, type KDP/ZR Standard Gewinde
87303162
MURRPLASTIK
5
Cable entry systems and holders Cable entry plate, round, type KDP/ZR Standard Gewinde
KDP/ZR 63/18, redonda, sw
Cable entry plate round type KDP/ZR
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The KDP/ZR cable entry plate is made of modified Polypropylene and is a round entry and fastening system for cables without plugs and pneumatic hoses such as those used in control cabinets, plant or machine construction. Wherever quick assembly, cable-protection and high packing density are required, this cable entry plate is used.
The special benefits of the KDP/ZR are:
Enormous time savings in assembly
High packing density
Standardised cut-out dimensions
Large wire diameter ranges
Very flat design
Labs free
-30°C – 70°C
Polypropylene (PP)TPE
HB
IP 65IP 66IP 67
| Type | Order No. | Colour | No. Openings | Openings Quantity / Ø mm | Thread metric | MOQ qty. | b mm | a mm | c mm | d mm | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
small thread | |||||||||||||||||||||||||||||||||||||||||
| KDP/ZR 40/6, KG | 87303130 | Black | 6 |
| M40x1,5 | 5 | 8.5 | 48.5 | 12 | 40.5 | |||||||||||||||||||||||||||||||
| KDP/ZR 40/7, KG | 87303132 | Black | 7 |
| M40x1,5 | 5 | 8.5 | 48.5 | 12 | 40.5 | |||||||||||||||||||||||||||||||
| KDP/ZR 50/10, KG | 87303150 | Black | 10 |
| M50x1,5 | 5 | 8.5 | 58.5 | 12 | 50.5 | |||||||||||||||||||||||||||||||
| KDP/ZR 50/10-1, KG | 87303152 | Black | 10 |
| M50x1,5 | 5 | 8.5 | 58.5 | 12 | 50.5 | |||||||||||||||||||||||||||||||
| KDP/ZR 63/15, KG | 87303170 | Black | 15 |
| M63x1,5 | 5 | 8.5 | 71.5 | 12 | 63.5 | |||||||||||||||||||||||||||||||
| KDP/ZR 63/18, KG | 87303172 | Black | 18 |
| M63x1,5 | 5 | 8.5 | 71.5 | 12 | 63.5 | |||||||||||||||||||||||||||||||
| KDP/ZR 63/30, KG | 87303174 | Black | 30 |
| M63x1,5 | 5 | 8.5 | 71.5 | 12 | 63.5 | |||||||||||||||||||||||||||||||
Standard Thread | |||||||||||||||||||||||||||||||||||||||||
| KDP/ZR 40/6 | 87303120 | Black | 6 |
| M40x1,5 | 5 | 8.5 | 48.5 | 24.5 | 40.5 | |||||||||||||||||||||||||||||||
| KDP/ZR 40/7 | 87303122 | Black | 7 |
| M40x1,5 | 5 | 8.5 | 48.5 | 24.5 | 40.5 | |||||||||||||||||||||||||||||||
| KDP/ZR 50/10 | 87303140 | Black | 10 |
| M50x1,5 | 5 | 8.5 | 58.5 | 24.5 | 50.5 | |||||||||||||||||||||||||||||||
| KDP/ZR 50/10-1 | 87303142 | Black | 10 |
| M50x1,5 | 5 | 8.5 | 58.5 | 24.5 | 50.5 | |||||||||||||||||||||||||||||||
| KDP/ZR 63/15 | 87303160 | Black | 15 |
| M63x1,5 | 5 | 8.5 | 71.5 | 24.5 | 63.5 | |||||||||||||||||||||||||||||||
| KDP/ZR 63/18 | 87303162 | Black | 18 |
| M63x1,5 | 5 | 8.5 | 71.5 | 24.5 | 63.5 | |||||||||||||||||||||||||||||||
| KDP/ZR 63/30 | 87303164 | Black | 30 |
| M63x1,5 | 5 | 8.5 | 71.5 | 24.5 | 63.5 | |||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87303162 87303162 EN_87303130.pdf | 820 Kbytes |
|
