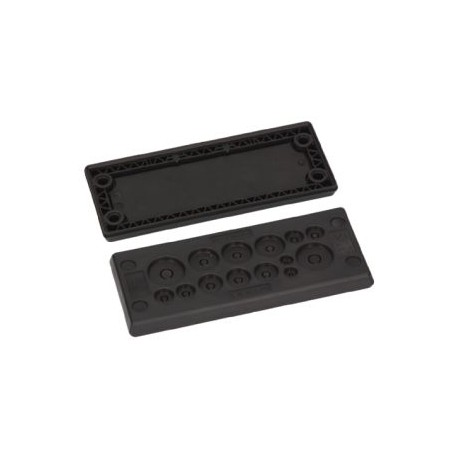

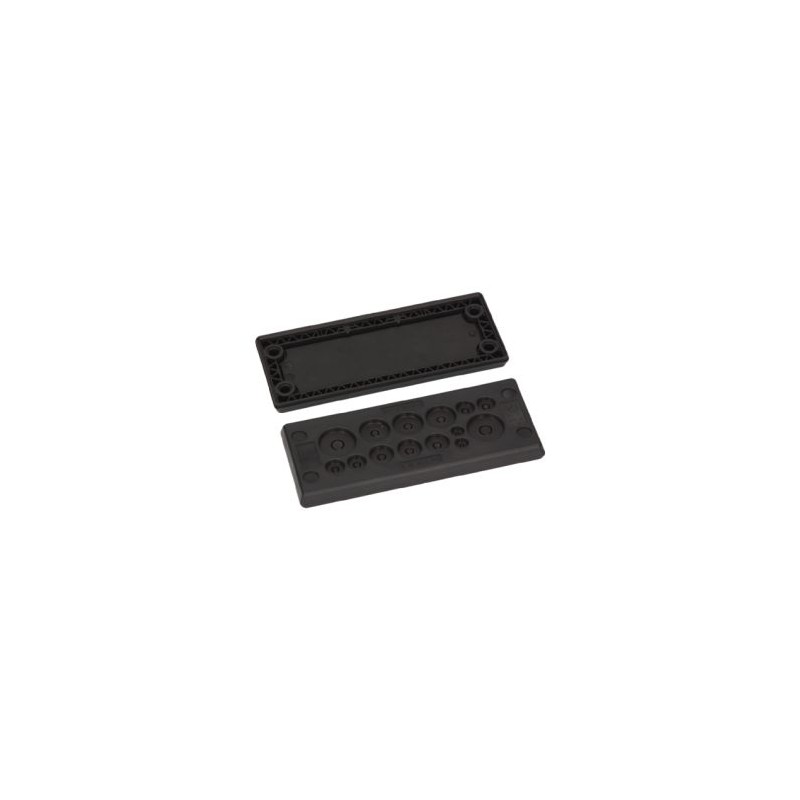

87303040 MURRPLASTIK Cable entry systems and holders KDP/Z 24 cable entry plate, plastic
87303040
MURRPLASTIK
Cable entry systems and holders KDP/Z 24 cable entry plate, plastic
KDP/Z 24/30, sw
Cable entry plate plastic type KDP/Z
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The KDP/Z 24 cable entry plate is an entry and fastening system for cables and pneumatic hoses such as those used in control cabinets, plant or machine construction. Wherever quick assembly, cable-protection and high packing density are required, this cable entry plate can be used.
Enormous time savings in assembly
High packing density
Large wire diameter ranges
Good strain relief
Very flat design
Labs free
-30°C – 70°C
Polypropylene (PP)TPE
HB
IP 65IP 66/67
| Type | Order No. | Colour | No. Openings | Openings Quantity / Ø mm | MOQ qty. | A mm | B mm | a mm | b mm | c mm | d mm | e mm | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KDP/Z 24/3, sw, VE 5 | 87303002 | Black | 3 |
| 5 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||
| KDP/Z 24/3, sw, VE 50 | 87303004 | Black | 3 |
| 50 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||
| KDP/Z 24/14 | 87303010 | Black | 14 |
| 5 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||
| KDP/Z 24/14, VE 50 | 87303012 | Black | 14 |
| 50 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||
| KDP/S-Z 24, sw | 87303090 | Black | 5 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||||
| KDP/Z 24/14-1 | 87303020 | Black | 14 |
| 5 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||
| KDP/S-Z 24, VE 50, sw | 87303092 | Black | 50 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||||
| KDP/Z 24/14-1, VE 50 | 87303022 | Black | 14 |
| 50 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||
| KDP/Z 24/23 | 87303030 | Black | 23 |
| 5 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||
| KDP/Z 24/23, VE 50 | 87303032 | Black | 23 |
| 50 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||
| KDP/Z 24/30 | 87303040 | Black | 30 |
| 5 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||
| KDP/Z 24/30, VE 50 | 87303042 | Black | 30 |
| 50 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||
| KDP/Z 24/48 | 87303050 | Black | 48 |
| 5 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||
| KDP/Z 24/48, VE 50 | 87303052 | Black | 48 |
| 50 | 149 | 61 | 112 | 36 | 65 | 16 | 5.5 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87303040 87303040 EN_87303002.pdf | 785 Kbytes |
|
