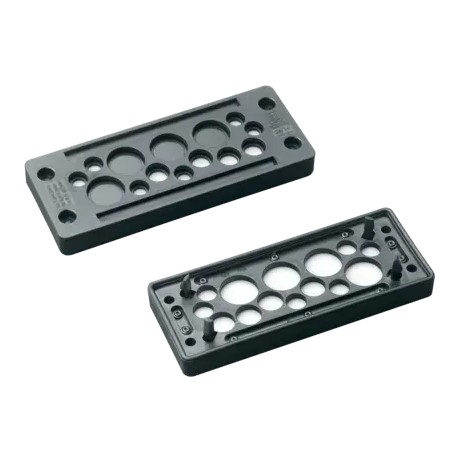

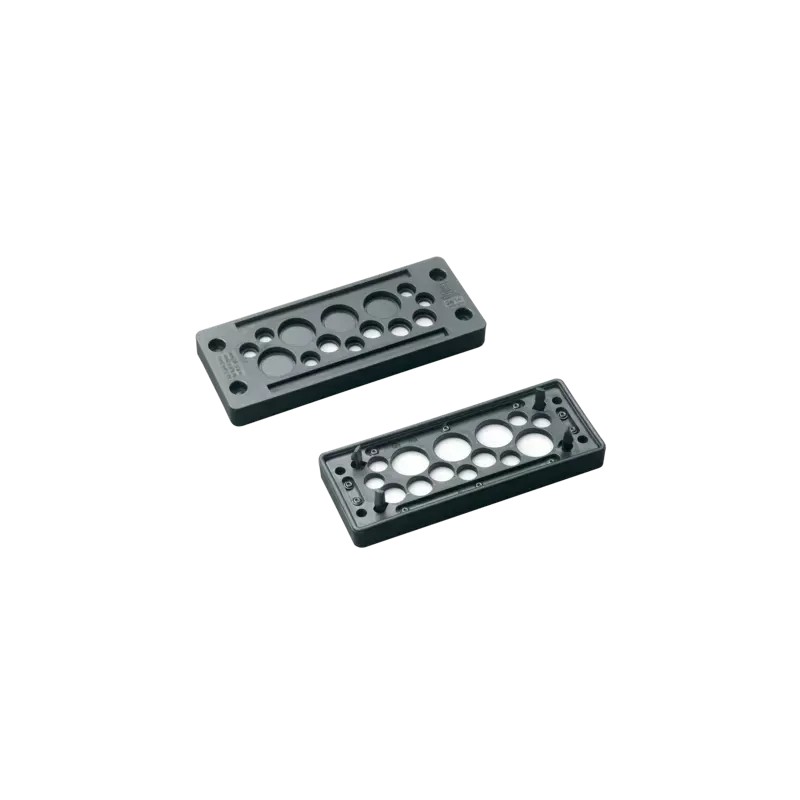

87301108 MURRPLASTIK Cable entry systems and holders Cable entry plate plastic type KDP/N 24
87301108
MURRPLASTIK
Cable entry systems and holders Cable entry plate plastic type KDP/N 24
KDP/N 24/10, sw
Cable entry plate plastic type KDP/N 24
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲2. generation of our cable entry plates, plastic, square, with improved clip-in function.
Economical connection technology for tool-free wiring of equipment and machinery. Wherever the rapid and economical introduction of cables and/or pneumatic conduits in confined spaces is essential. The alternative to cable fittings. Suitable for standard cut-outs for 24-pin Harting and Wieland connectors. For snap-in fastening and/or screwing in place.
Snap-in at plate thicknesses of 1.5 to 2.0 mm
High degree of strain relief
2 elastomer panels (seals)
Labs free
Polyamide 6.6TPU / NBR / EPDM
IP 65
GL approval
| Type | Order No. | Colour | No. Openings | Openings Quantity / Ø mm | MOQ qty. | Installation height mm | A mm | B mm | a mm | b mm | c mm | d mm | e mm | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KDP/N 24/10 | 87301108 | Black | 10 |
| 1 | 15 | 59 | 147 | 112 | 36 | 65 | 16 | 5.5 | |||||||||||||||||||||
| KDP/N 24/11 | 87301110 | Black | 11 |
| 1 | 15 | 59 | 147 | 112 | 36 | 65 | 16 | 5.5 | |||||||||||||||||||||
| KDP/N 24/12 | 87301120 | Black | 12 |
| 1 | 15 | 59 | 147 | 112 | 36 | 65 | 16 | 5.5 | |||||||||||||||||||||
| KDP/N 24/13 | 87301130 | Black | 13 |
| 1 | 15 | 59 | 147 | 112 | 36 | 65 | 16 | 5.5 | |||||||||||||||||||||
| KDP/N 24/14 | 87301140 | Black | 14 |
| 1 | 15 | 59 | 147 | 112 | 36 | 65 | 16 | 5.5 | |||||||||||||||||||||
| KDP/N 24/17 | 87301150 | Black | 17 |
| 1 | 15 | 59 | 147 | 112 | 36 | 65 | 16 | 5.5 | |||||||||||||||||||||
| KDP/N 24/17-1 | 87301151 | Black | 17 |
| 1 | 15 | 59 | 147 | 112 | 36 | 65 | 16 | 5.5 | |||||||||||||||||||||
| KDP/N 24/22 | 87301160 | Black | 22 |
| 1 | 15 | 59 | 147 | 112 | 36 | 65 | 16 | 5.5 | |||||||||||||||||||||
| KDP/N 24/22, PU 100 | 87301161 | Black | 22 |
| 100 | 15 | 59 | 147 | 112 | 36 | 65 | 16 | 5.5 | |||||||||||||||||||||
| KDP/N 24/23 | 87301170 | Black | 23 |
| 1 | 15 | 59 | 147 | 112 | 36 | 65 | 16 | 5.5 | |||||||||||||||||||||
| KDP/N 24/29 | 87301180 | Black | 29 |
| 1 | 15 | 59 | 147 | 112 | 36 | 65 | 16 | 5.5 | |||||||||||||||||||||
| KDP/N 24/29, open, VE 100 | 87301182 | Black | 29 |
| 100 | 15 | 59 | 147 | 112 | 36 | 65 | 16 | 5.5 | |||||||||||||||||||||
| KDP/N 24/80 | 87301190 | Black | 80 |
| 1 | 15 | 59 | 147 | 112 | 36 | 65 | 16 | 5.5 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87301108 87301108 EN_87301108.pdf | 740 Kbytes |
|
