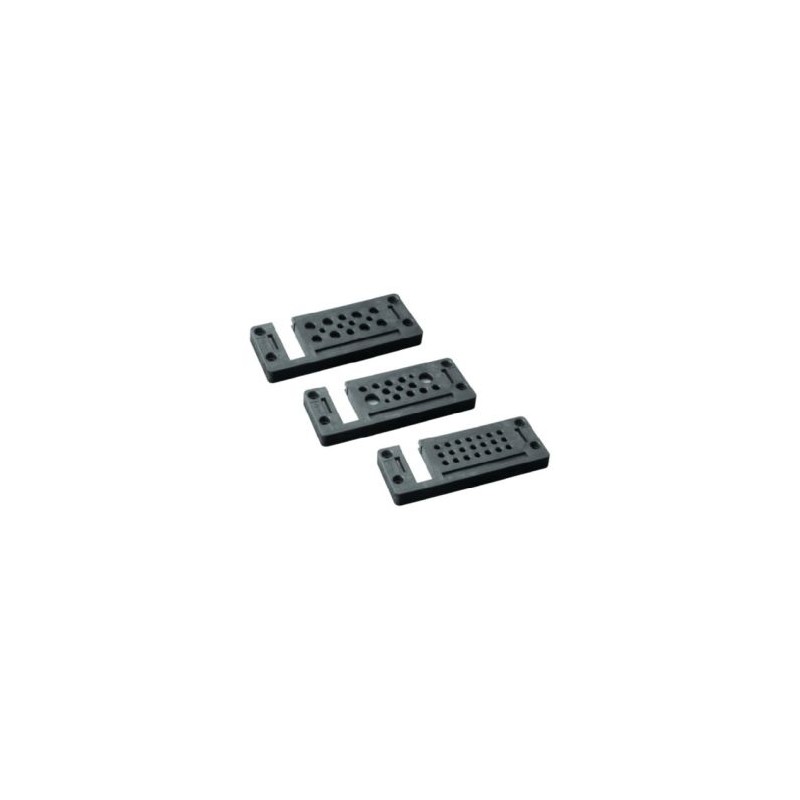

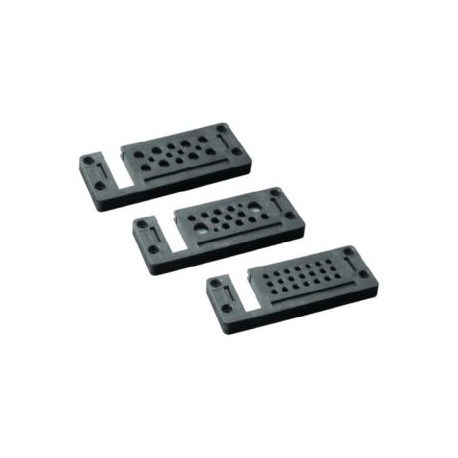

87301080 MURRPLASTIK Cable entry systems and holders Cable entry plate KDP 24-Multi
87301080
MURRPLASTIK
Cable entry systems and holders Cable entry plate KDP 24-Multi
KDP-Multi 24/15/02, sw
Cable entry plate KDP 24-Multi
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The cable entry plates, type KDP 24-Multi are a combination of our KDP system and our cable entry KDL/E. They are ideal for situations where a few cables with plugs have to be brought into the control cabinet next to cables without plugs. These cable entry plates take up to four pre-assembled cables in two grommets.
Catch hook for 1.5 – 2.0 mm plate thickness included with delivery, additional catch hooks for up to 4.1 mm plate thickness available
Labs free
-30°C – 70°C
PolyamideTPU / NBR / EPDM
IP 54
CSA approval
GL approval
| Type | Order No. | Colour | No. Openings | Openings Quantity / Ø mm | No. Grommets | MOQ qty. | Installation height mm | A mm | B mm | a mm | b mm | c mm | d mm | e mm | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KDP 24/10/02 | 87301076 | Black | 10 |
| 2 / / | 1 | 15.5 | 58 | 146 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||
| KDP 24/14/02 | 87301078 | Black | 14 |
| 2 / / | 1 | 15.5 | 58 | 146 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||
| KDP 24/15/02 | 87301080 | Black | 15 |
| 2 / / | 1 | 15.5 | 58 | 146 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||
| KDP 24/17/02 | 87301082 | Black | 17 |
| 2 / / | 1 | 15.5 | 58 | 146 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||
| KDP 24/20/02 | 87301084 | Black | 20 |
| 2 / / | 1 | 15.5 | 58 | 146 | 112 | 36 | 65 | 16 | 5.5 | ||||||||||||||||
| KDP 24/21/02 | 87301086 | Black | 21 |
| 2 / / | 1 | 15.5 | 58 | 146 | 112 | 36 | 65 | 16 | 5.5 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87301080 87301080 EN_87301076.pdf | 900 Kbytes |
|
