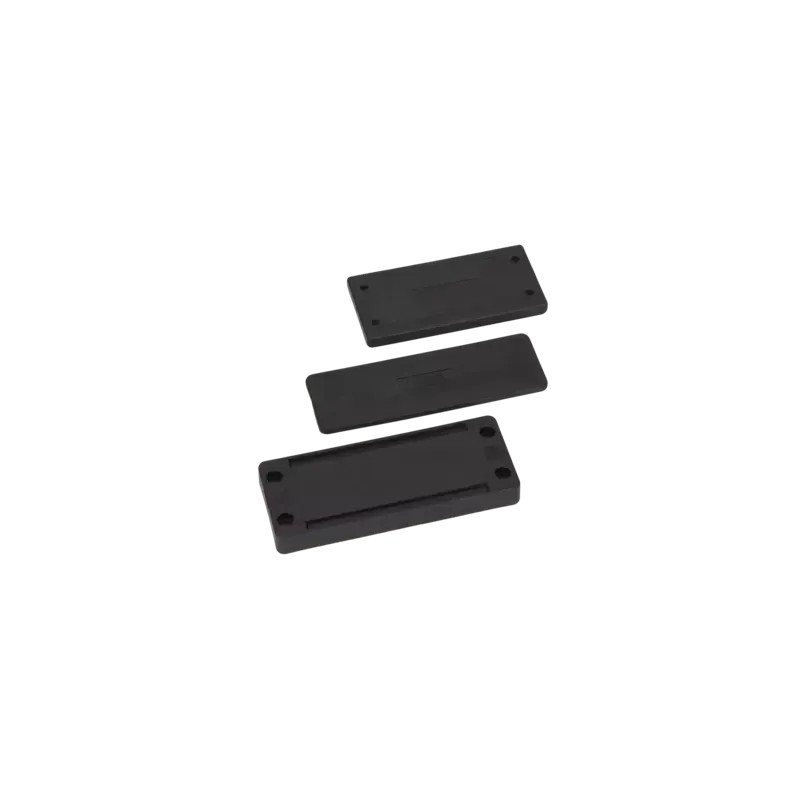

87171626 MURRPLASTIK Cable entry systems and holders Blanking plate (plastic) Flexible version
87171626
MURRPLASTIK
10
Cable entry systems and holders Blanking plate (plastic) Flexible version
BP/H 24 Placa ciega, TPE
Blanking plate (plastic)
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The blanking plates are suited for sealing 16- or 24-pole plug connector cut-outs.
Integrated seal
BP/N can be snap-fitted or screw-fastened
BP/H snap-fit assembly
-40°C – 125°C
Polyamide 6.6TPE
V0HB
IP 54IP 65IP 42
GL approval
| Type | Order No. | Colour | MOQ qty. | Installation height mm | A mm | B mm | a mm | b mm | c mm | d mm | e mm | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Reinforced version | |||||||||||||
| BP 16 | 87171620 | Black | 10 | 8 | 116 | 58 | 86 | 36 | 51.5 | 16 | 5.5 | ||
| BP 24 | 87171622 | Black | 10 | 8 | 146 | 58 | 112 | 36 | 65 | 16 | 5.5 | ||
High design, latchable from plate thickness 1.5–2.0 mm | |||||||||||||
| BP/N 24 | 87171624 | Black | 1 | 15.5 | 146 | 58 | 112 | 36 | 65 | 16 | 5.5 | ||
Flexible version | |||||||||||||
| BP/H 24 | 87171626 | Black | 1 | 4.5 | 146 | 48 | 112 | 36 | 65 | 16 | 5.5 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87171626 87171626 EN_87171626.pdf | 731 Kbytes |
|
