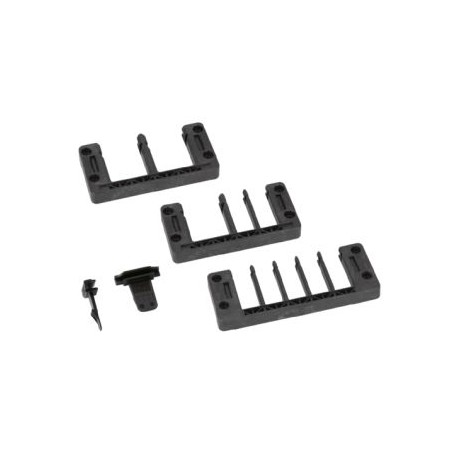

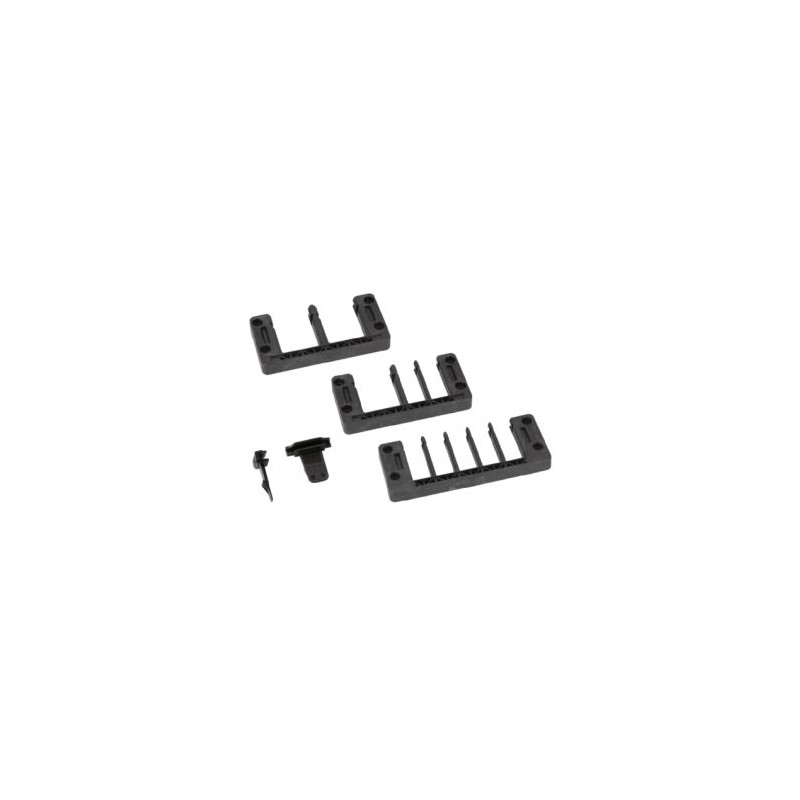

87121014 MURRPLASTIK Cable entry systems and holders Cable entry system, type KDL/E For standard cut-out siz..
87121014
MURRPLASTIK
Cable entry systems and holders Cable entry system, type KDL/E For standard cut-out size 16 Black
KDL/E 16/8, sw
Cable entry system type KDL/E
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The KDL/E represents the 3rd generation of Murrplastik cable entry system.
Even quicker mounting of pre-assembled cables
Snap in, screwing on is no longer absolutely necessary
Catch hook for 1.5 – 2.0 mm plate thickness included with delivery, additional catch hooks for up to 4.1 mm plate thickness available
Fits standard cut-outs for connectors (e.g. Harting, Wieland and Rittal).
EMC solution with discharge plate, simple realisation
Matching grommets: KDT/xE
Labs free
-40°C – 80°C
Polyamide 6.6
V0
IP 54
CSA approval
GL approval
UR approval
| Type | Order No. | Colour | No. of openings Small / medium / large | for Ø mm | MOQ qty. | Installation height mm | A mm | B mm | a mm | b mm | c mm | d mm | e mm | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For standard cut-out size 16 | |||||||||||||||
| KDL/E 16/2 | 87121010 | Black | 0 / / 2 | 16 – 31 | 1 | 15.5 | 116 | 58 | 86 | 36 | 51.5 | 16 | 5.5 | ||
| KDL/E 16/4 | 87121011 | Black | 4 / / 0 | 3 – 16 | 1 | 15.5 | 116 | 58 | 86 | 36 | 51.5 | 16 | 5.5 | ||
| KDL/E 16/5 | 87121012 | Black | 4 / / 1 | 3 – 31 | 1 | 15.5 | 116 | 58 | 86 | 36 | 51.5 | 16 | 5.5 | ||
| KDL/E 16/8 | 87121014 | Black | 8 / / 0 | 3 – 16 | 1 | 15.5 | 116 | 58 | 86 | 36 | 51.5 | 16 | 5.5 | ||
For standard cut-out size 24 | |||||||||||||||
| KDL/E 24/4 | 87121016 | Black | 2 / / 2 | 3 – 31 | 1 | 15.5 | 146 | 58 | 112 | 36 | 65 | 16 | 5.5 | ||
| KDL/E 24/7 | 87121018 | Black | 6 / / 1 | 3 – 31 | 1 | 15.5 | 146 | 58 | 112 | 36 | 65 | 16 | 5.5 | ||
| KDL/E 24/10 | 87121020 | Black | 10 / / 0 | 3 – 16 | 1 | 15.5 | 146 | 58 | 112 | 36 | 65 | 16 | 5.5 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87121014 87121014 EN_87121010.pdf | 991 Kbytes |
|
