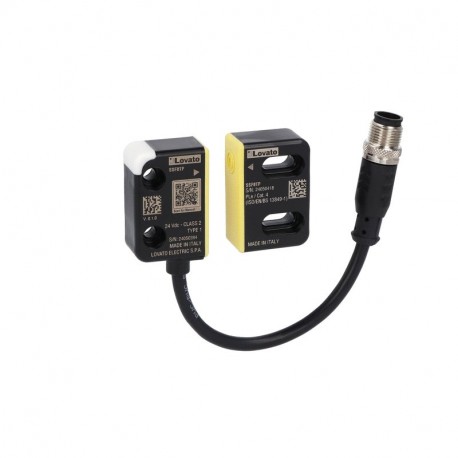

SSF8TP LOVATO RFID 24VDC Teach-in Security Sensor
SSF8TP
LOVATO ELECTRIC
RFID 24VDC Teach-in Security Sensor
RFID safety sensors SSF… series, 8-pin version, with M12 Pigtail connector 15cm and Teach-in coding type
SENSORE RFID 8 PIN, TEACH-IN, PIGTAIL
Sensors > Position switch modular
Home > LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Best sellers
▲More info
▲SSF8TP
RFID safety sensors SSF… series, 8-pin version, with M12 Pigtail connector 15cm and Teach-in coding type
Technical specifications
- Type of product:
- RFID safety sensors
- Product characteristics:
- SSF
- Type of contacts:
- OSSD
| Order code | SSF8TP |
|---|---|
| Weight [g] | 79 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 190X150X020 |
| Volume [cm³] | 570 |
| Bar code [EAN13] | 8013975321119 |
| HS Code | 9032890090 |
237.46 £
| Feature Name | Feature Value |
|---|---|
| Ambient temperature during operating (EF007515) | -25 °C |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Length of sensor (EF007334) | 18 mm |
| Height of sensor (EF007283) | 57 mm |
| Width sensor (EF007094) | 28.5 mm |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0.3 A |
| Number of safety auxiliary contacts (EF006940) | 2 |
| Number of cams (EF003953) | 0 |
| With status indication (EF001602) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| Type of interface (EF006977) | None |
| Type of control element (EF006976) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Explosion safety category for dust (EF003998) | None |
| Explosion safety category for gas (EF003997) | None |
| Type of electric connection (EF003961) | Connector M12 |
| Type of interface for safety communication (EF003956) | None |
| Coating housing (EF001601) | Other |
| Housing material (EF001596) | Plastic |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
