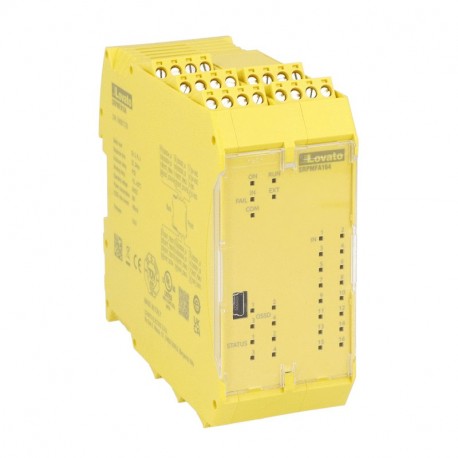

LOVATO ELECTRIC SRPMFA164 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

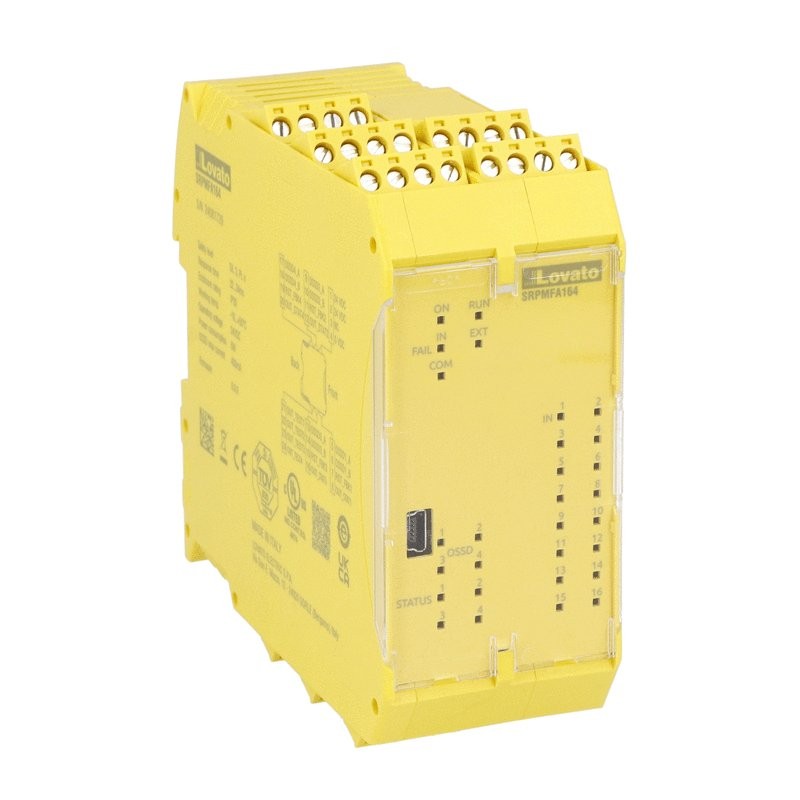

SRPMFA164 LOVATO Multifunction SRP programmable safety module, alim. Aux. 24VDC, up to CAT.4

Code: SRPMFA164

Manufacturer: LOVATO ELECTRIC

Description:

Multifunction SRP programmable safety module, alim. Aux. 24VDC, up to CAT.4
Programmable safety relay SRP… series, multi-function, auxiliary supply 24VDC, up to CAT.4, Ple

Categories:

  • Relays > Device for monitoring of safety-related circuits
  • LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 662,23 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

SRPMFA164

Programmable safety relay SRP… series, multi-function, auxiliary supply 24VDC, up to CAT.4, Ple

Technical specifications

Type of product:
Safety relays - programmable
Product characteristics:
SRP
Order codeSRPMFA164
Weight [g]320
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]125X116X058
Volume [cm³]841
Bar code [EAN13]8013975321195
HS Code8537109199

972.76 £

ETIM for SRPMFA164 Relays (EC001449)

Feature nameSIL according to IEC 61508 (EF009889)
Feature value3
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueLevel e
Feature nameType of safety according to IEC 61496-1 (EF004105)
Feature value4
Feature nameEvaluation inputs (EF008245)
Feature value1-channel or 1- and 2-channel
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameModel (EF000010)
Feature valueBasic device
Feature nameWith approval for TÜV (EFDE0031)
Feature valueYes
Feature nameSuitable for monitoring of valves (EF007272)
Feature valueYes
Feature nameSuitable for monitoring of tactile sensors (EF007271)
Feature valueYes
Feature nameSuitable for monitoring of position switches (EF007270)
Feature valueYes
Feature nameSuitable for monitoring of optoelectronic protection equipment (EF007269)
Feature valueYes
Feature nameSuitable for monitoring of emergency-stop circuits (EF007268)
Feature valueYes
Feature nameSuitable for monitoring of proximity switches (EF007267)
Feature valueNo
Feature nameSuitable for monitoring of magnetic switches (EF007266)
Feature valueYes
Feature nameWith approval for BG BIA (EF004145)
Feature valueNo
Feature nameWith muting function (EF004057)
Feature valueNo
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature nameWith feedback circuit (EF003343)
Feature valueNo
Feature nameWith start input (EF003342)
Feature valueYes
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameWith approval according to UL (EF001783)
Feature valueYes
Feature nameNumber of outputs, signalling function, delayed, semiconductors (EF003351)
Feature value4
Feature nameNumber of outputs, signalling function, undelayed, semiconductors (EF003350)
Feature value4
Feature nameNumber of outputs, signalling function, delayed, with contact (EF003349)
Feature value4
Feature nameNumber of outputs, signalling function, undelayed, with contact (EF003348)
Feature value4
Feature nameNumber of outputs, safety related, delayed, semiconductors (EF003347)
Feature value4
Feature nameNumber of outputs, safety related, undelayed, semiconductors (EF003346)
Feature value4
Feature nameNumber of outputs, safety related, delayed, with contact (EF003345)
Feature value4
Feature nameNumber of outputs, safety related, undelayed, with contact (EF003344)
Feature value4
Feature nameDepth (EF000049)
Feature value114.5 mm
Feature nameHeight (EF000040)
Feature value108 mm
Feature nameWidth (EF000008)
Feature value45 mm
