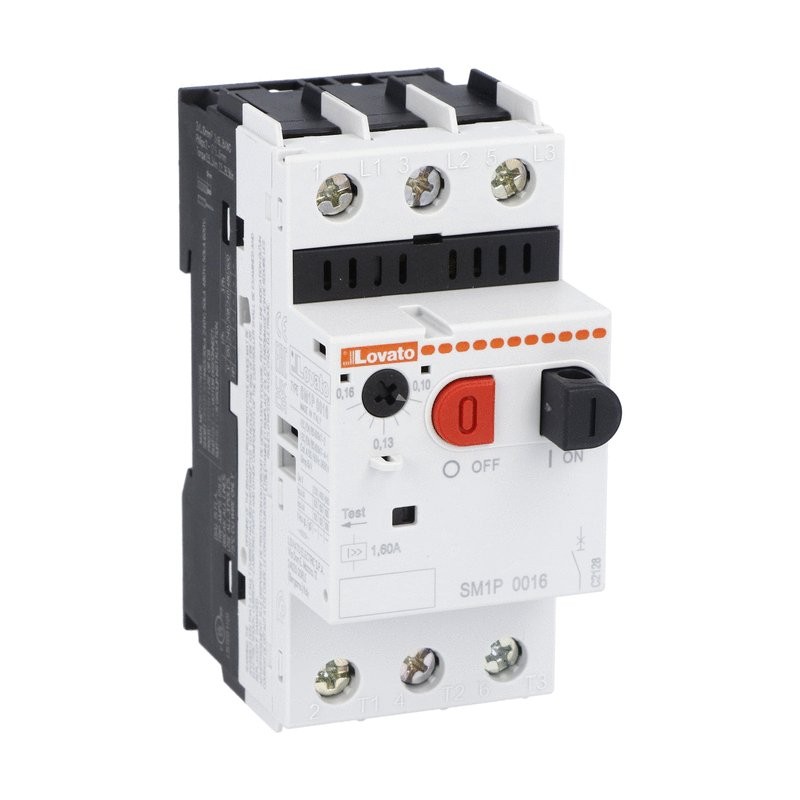

LOVATO ELECTRIC SM1P3200 SM1P3200 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SM1P3200 LOVATO MOTOR PROTECTION CIRCUIT BREAKER, IEC BREAKING CAPACITY ICU 10KA AT 400V, 24...32A

Reference: SM1P3200

Manufacturer: LOVATO ELECTRIC

Description:

MOTOR PROTECTION CIRCUIT BREAKER, IEC BREAKING CAPACITY ICU 10KA AT 400V, 24...32A
MOTOR PROT.CIRC.BR. SM1P 24-32A
Motor protection circuit breaker, IEC breaking capacity Icu 10kA at 400V, 24...32A

Categories:

  • Low-voltage industrial components > Motor protection circuit-breaker
  • LOVATO ELECTRIC > Motor protection circuit breakers - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 116,69 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

SM1P3200

Motor protection circuit breaker, IEC breaking capacity Icu 10kA at 400V, 24...32A

Technical specifications

Type of product:
Motor protection circuit breaker
Thermal trip adjustment range [A]:
24…32
Rated current In [A]:
32
Short-circuit current breaking capacity (Icu) at AC 400V [kA]:
10
Type of protection:
Magnetic and thermal
Type of control:
Push button
Certified UL Type E:
No
Order codeSM1P3200
Weight [g]300
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]080X047X098
Volume [cm³]368.48
Bar code [EAN13]8013975216248
HS Code85362010

121.33 £

ETIM for SM1P3200 Low-voltage industrial controls and switchgear (EC000074)

Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSwitch off technique (EF007007)
Feature valueThermomagnetic
Feature nameType of control element (EF006976)
Feature valuePush button
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameAdjustment range undelayed short-circuit release (EF007131)
Feature value416 A
Feature nameOverload release current setting (EF002336)
Feature value24 A
Feature nameRated operating voltage (EF001435)
Feature value0 V
Feature namePhase failure sensitive (EF007400)
Feature valueYes
Feature nameWith thermal overload protection (EF006233)
Feature valueYes
Feature nameWith integrated under voltage release (EF001390)
Feature valueNo
Feature nameWith integrated auxiliary switch (EF001387)
Feature valueNo
Feature nameRated short-circuit breaking capacity Icu at 400 V, AC (EF007049)
Feature value10 kA
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameRated permanent current Iu (EF001389)
Feature value32 A
Feature nameDepth (EF000049)
Feature value75 mm
Feature nameHeight (EF000040)
Feature value97 mm
Feature nameWidth (EF000008)
Feature value45 mm
