LOVATO ELECTRICMotor protection circuit breakers - LOVATO ELECTRICSM1P0250 LOVATO MOTOR PROTECTION CIRCUIT BREAKER, IEC BREAKING CAPACITY ICU 100KA AT 400V, 1.6...2.5A

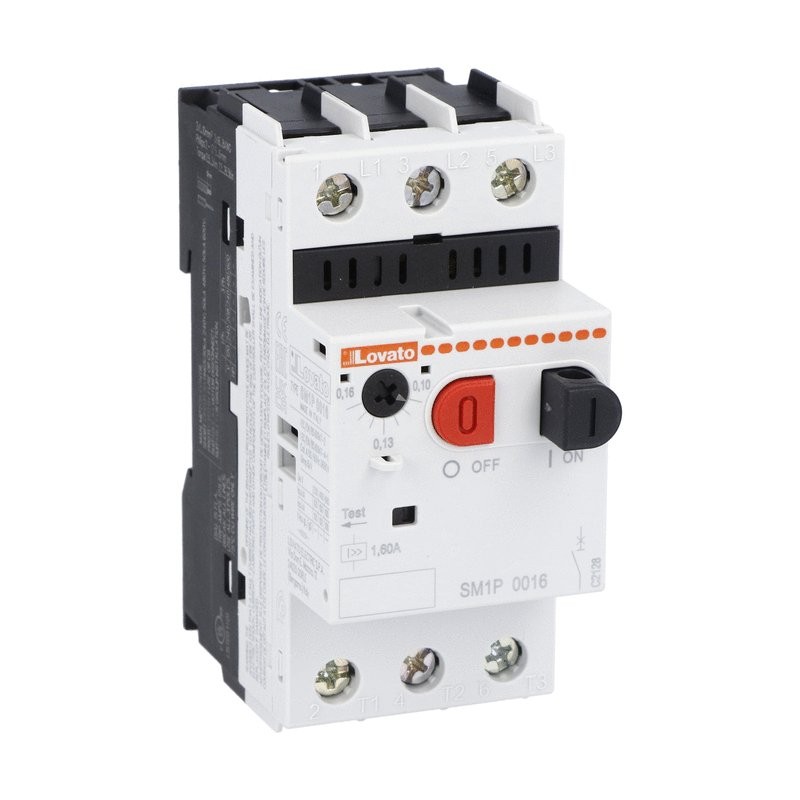

LOVATO ELECTRIC SM1P0250 SM1P0250 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SM1P0250 LOVATO MOTOR PROTECTION CIRCUIT BREAKER, IEC BREAKING CAPACITY ICU 100KA AT 400V, 1.6...2.5A

Reference: SM1P0250

Manufacturer: LOVATO ELECTRIC

Description:

MOTOR PROTECTION CIRCUIT BREAKER, IEC BREAKING CAPACITY ICU 100KA AT 400V, 1.6...2.5A
MOTOR PROT.CIRC.BR. SM1P 1,6-2,5A
Motor protection circuit breaker, IEC breaking capacity Icu 100kA at 400V, 1.6...2.5A

Categories:

  • Low-voltage industrial components > Motor protection circuit-breaker
  • LOVATO ELECTRIC > Motor protection circuit breakers - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 61,52 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

SM1P0250

Motor protection circuit breaker, IEC breaking capacity Icu 100kA at 400V, 1.6...2.5A

Technical specifications

Type of product:
Motor protection circuit breaker
Thermal trip adjustment range [A]:
1.6…2.5
Rated current In [A]:
2.5
Short-circuit current breaking capacity (Icu) at AC 400V [kA]:
100
Type of protection:
Magnetic and thermal
Type of control:
Push button
Certified UL Type E:
No
Order codeSM1P0250
Weight [g]298
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]080X047X098
Volume [cm³]368.48
Bar code [EAN13]8013975216163
HS Code85362010

64.95 £

ETIM for SM1P0250 Low-voltage industrial controls and switchgear (EC000074)

Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSwitch off technique (EF007007)
Feature valueThermomagnetic
Feature nameType of control element (EF006976)
Feature valuePush button
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameAdjustment range undelayed short-circuit release (EF007131)
Feature value32.5 A
Feature nameOverload release current setting (EF002336)
Feature value1.6 A
Feature nameRated operating voltage (EF001435)
Feature value0 V
Feature namePhase failure sensitive (EF007400)
Feature valueYes
Feature nameWith thermal overload protection (EF006233)
Feature valueYes
Feature nameWith integrated under voltage release (EF001390)
Feature valueNo
Feature nameWith integrated auxiliary switch (EF001387)
Feature valueNo
Feature nameRated short-circuit breaking capacity Icu at 400 V, AC (EF007049)
Feature value100 kA
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameRated permanent current Iu (EF001389)
Feature value2.5 A
Feature nameDepth (EF000049)
Feature value75 mm
Feature nameHeight (EF000040)
Feature value97 mm
Feature nameWidth (EF000008)
Feature value45 mm

DATASHEET - PDF

Title
Size
Type
SM1P0250 SM1P0250 01-Motor-protection-circuit-breakers-01-January-2019_EN.pdf
4 Mbytes
PDF CATALOGUE LOVATO EN
99 Mbytes
