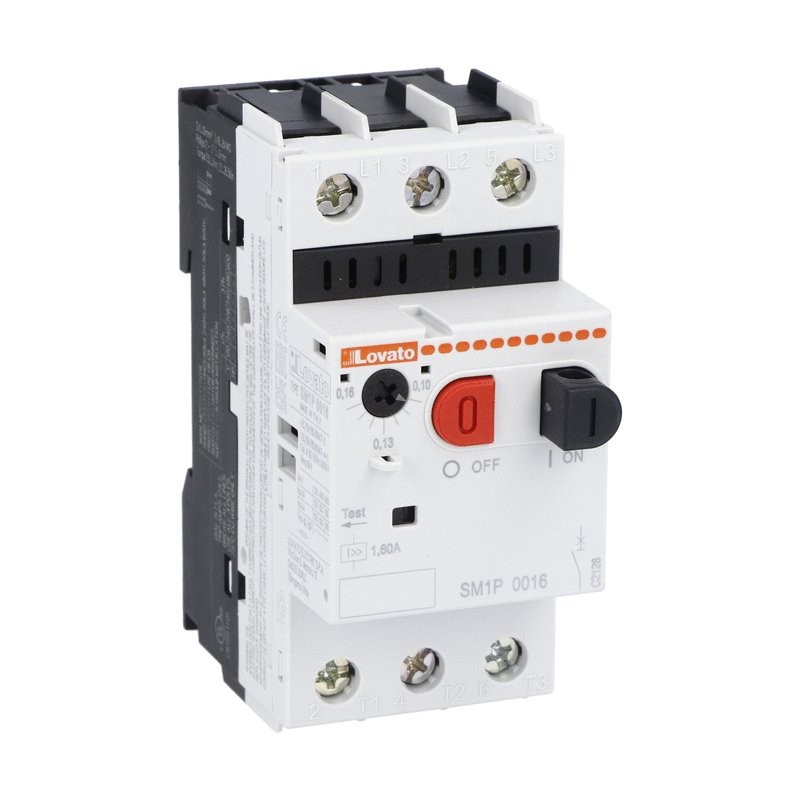

SM1P0160 LOVATO MOTOR PROTECTION CIRCUIT BREAKER, IEC BREAKING CAPACITY ICU 100KA AT 400V, 1...1.6A
SM1P0160
LOVATO ELECTRIC
MOTOR PROTECTION CIRCUIT BREAKER, IEC BREAKING CAPACITY ICU 100KA AT 400V, 1...1.6A
MOTOR PROT.CIRC.BR. SM1P 1-1,6A
Motor protection circuit breaker, IEC breaking capacity Icu 100kA at 400V, 1...1.6A
MOTOR PROTECTION SWITCH, ICU INT. POWER AT 400V = 100KA, 1...1,6A
Low-voltage industrial components > Motor protection circuit-breaker
Motor protection circuit breakers - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Often bought together
▲Best sellers
▲More info
▲SM1P0160
Motor protection circuit breaker, IEC breaking capacity Icu 100kA at 400V, 1...1.6A
Technical specifications
- Type of product:
- Motor protection circuit breaker
- Thermal trip adjustment range [A]:
- 1…1.6
- Rated current In [A]:
- 1.6
- Short-circuit current breaking capacity (Icu) at AC 400V [kA]:
- 100
- Type of protection:
- Magnetic and thermal
- Type of control:
- Push button
- Certified UL Type E:
- No
| Order code | SM1P0160 |
|---|---|
| Weight [g] | 273 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 080X047X098 |
| Volume [cm³] | 368.48 |
| Bar code [EAN13] | 8013975216156 |
| HS Code | 85362010 |
62.17 £
| Feature Name | Feature Value |
|---|---|
| Device construction (EF008240) | Complete device in housing |
| Switch off technique (EF007007) | Thermomagnetic |
| Type of control element (EF006976) | Push button |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP) (EF005474) | IP20 |
| Adjustment range undelayed short-circuit release (EF007131) | 20.8 A |
| Overload release current setting (EF002336) | 1 A |
| Rated operating voltage (EF001435) | 0 V |
| Phase failure sensitive (EF007400) | Yes |
| With thermal overload protection (EF006233) | Yes |
| With integrated under voltage release (EF001390) | No |
| With integrated auxiliary switch (EF001387) | No |
| Rated short-circuit breaking capacity Icu at 400 V, AC (EF007049) | 100 kA |
| Number of poles (EF001391) | 3 |
| Rated permanent current Iu (EF001389) | 1.6 A |
| Depth (EF000049) | 75 mm |
| Height (EF000040) | 97 mm |
| Width (EF000008) | 45 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| SM1P0160 SM1P0160 01-Motor-protection-circuit-breakers-01-January-2019_EN.pdf | 4 Mbytes |
|
