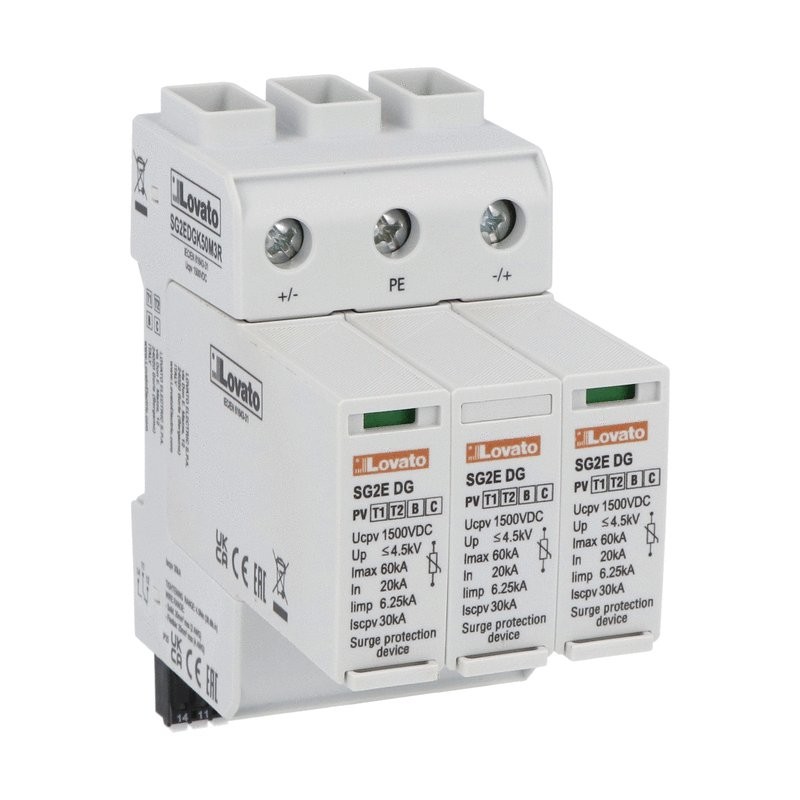

SG2EDGK50M3R LOVATO PROT. SURGE DEVICE TYPE 1-2 1500VDC+RC
SG2EDGK50M3R
LOVATO ELECTRIC
PROT. SURGE DEVICE TYPE 1-2 1500VDC+RC
Surge protection device type 1,2 for photovoltaic applications with plug-in cartridge, Un 1500VDC, short-circuit current Iscpv 30kA, +, -, PE. With remote contact
Earthing, lightning and surge protection > Surge protection device for power supply systems
Surge protection devices - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲SG2EDGK50M3R
Surge protection device type 1,2 for photovoltaic applications with plug-in cartridge, Un 1500VDC, short-circuit current Iscpv 30kA, +, -, PE. With remote contact
Technical specifications
- Type of product:
- SPD
- Type of system:
- Photovoltaic
- Type / Class:
- 1, 2
- In [kA]:
- 20
- Rated voltage [VDC]:
- 1500
- Type of mounting:
- Din rail
- For photovoltaic application:
- Yes
| Order code | SG2EDGK50M3R |
|---|---|
| Weight [g] | 443 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 110X100X060 |
| Volume [cm³] | 660 |
| Bar code [EAN13] | 8013975313237 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Short-circuit breaking capacity (Isccr) (EF012627) | 30 kA |
| Max. discharge surge current (8/20) (EF012274) | 60 kA |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 25 mm² |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 35 mm² |
| Max. PV-voltage (EF008795) | 1500 V |
| Max. continuous voltage DC (EF004777) | 1500 V |
| Nominal voltage DC (EF004221) | 1500 V |
| Nominal discharge surge current (8/20) (EF004214) | 6.25 kA |
| Max. continuous voltage AC (EF004198) | 1500 V |
| Voltage protection level (EF003525) | 4.5 kV |
| Number of conductors (without earthing) (EF001148) | 2 |
| Leakage-current free (EF016002) | No |
| Integrated short-circuit protection (EF016000) | No |
| System configuration TN-C-S (EF009933) | No |
| System configuration other (EF009932) | No |
| System configuration TT (EF009931) | No |
| System configuration TN-S (EF009930) | No |
| System configuration TN-C (EF009929) | No |
| System configuration TN (EF009928) | No |
| System configuration IT (EF009927) | No |
| System configuration DC (EF009926) | Yes |
| Integrated backup fuse (EF008797) | No |
| Category type 2 (EF004230) | Yes |
| With remote signalling contact (EF000422) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Signalling at the device (EF004241) | Optic |
| Construction size (EF002566) | 3 modular spacing |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| SG2EDGK50M3R EN_SG2EDGK50M3R.pdf | 113 Kbytes |
|
