LOVATO ELECTRICSurge protection devices - LOVATO ELECTRICSG2EDGK10M3R LOVATO SURGE PROT. DEVICE TYPE 2 1100VDC+RC (E)

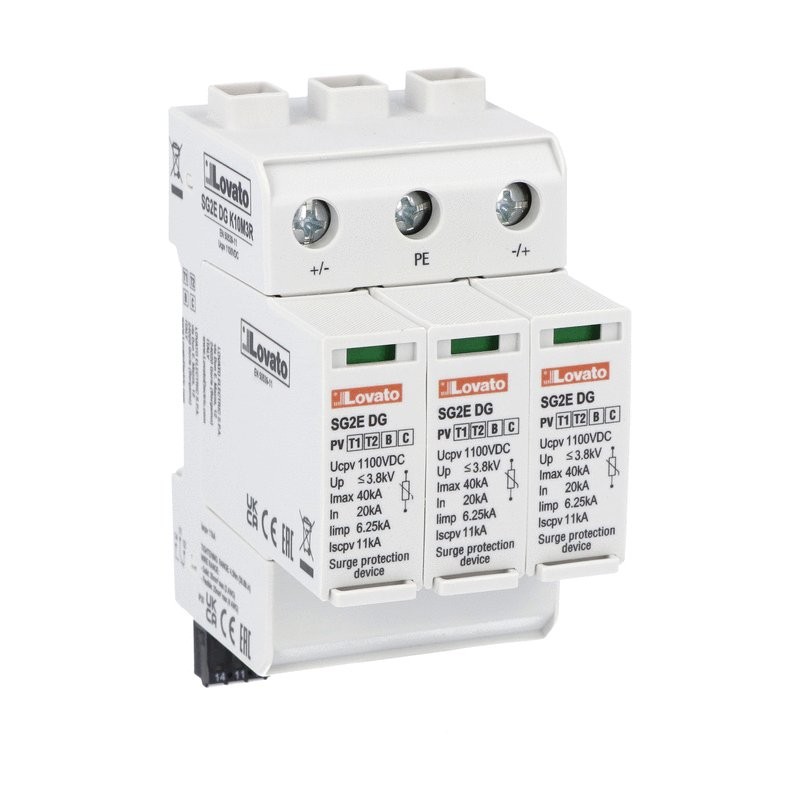

LOVATO ELECTRIC SG2EDGK10M3R SG2EDGK10M3R - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SG2EDGK10M3R LOVATO SURGE PROT. DEVICE TYPE 2 1100VDC+RC (E)

Reference: SG2EDGK10M3R

Manufacturer: LOVATO ELECTRIC

Description:

SURGE PROT. DEVICE TYPE 2 1100VDC+RC (E)
Surge protection device type 1,2 for photovoltaic applications with plug-in cartridge, Un 1100VDC, short-circuit current Iscpv 11kA, +, -, PE. With remote contact
TYPE 2 SURGE ARRESTER FOR PHOTOVOLTAIC APPLICATIONS WITH REMOVABLE CARTRIDGE, SHORT CIRCUIT CURRENT ISCPV 1000A, +, -, PE. WITH REMOTE CONTACT

Categories:

  • Earthing, lightning and surge protection > Surge protection device for power supply systems
  • LOVATO ELECTRIC > Surge protection devices - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 261,77 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

SG2EDGK10M3R

Surge protection device type 1,2 for photovoltaic applications with plug-in cartridge, Un 1100VDC, short-circuit current Iscpv 11kA, +, -, PE. With remote contact

Technical specifications

Type of product:
SPD
Type of system:
Photovoltaic
Type / Class:
1, 2
In [kA]:
20
Rated voltage [VDC]:
1100
Type of mounting:
Din rail
For photovoltaic application:
Yes
Order codeSG2EDGK10M3R
Weight [g]443
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]110X100X060
Volume [cm³]660
Bar code [EAN13]8013975242667
HS Code85365080

245.03 £

ETIM for SG2EDGK10M3R Earthing, lightning and surge protection (EC000941)

Feature nameShort-circuit breaking capacity (Isccr) (EF012627)
Feature value11 kA
Feature nameMax. discharge surge current (8/20) (EF012274)
Feature value40 kA
Feature nameMax. conductor cross section flexible (fine-strand) (EF008828)
Feature value25 mm²
Feature nameMax. conductor cross section solid (solid, stranded) (EF008827)
Feature value35 mm²
Feature nameMax. PV-voltage (EF008795)
Feature value1100 V
Feature nameMax. continuous voltage DC (EF004777)
Feature value1100 V
Feature nameNominal voltage DC (EF004221)
Feature value1100 V
Feature nameNominal discharge surge current (8/20) (EF004214)
Feature value6.25 kA
Feature nameMax. continuous voltage AC (EF004198)
Feature value1100 V
Feature nameVoltage protection level (EF003525)
Feature value3.8 kV
Feature nameNumber of conductors (without earthing) (EF001148)
Feature value2
Feature nameLeakage-current free (EF016002)
Feature valueNo
Feature nameIntegrated short-circuit protection (EF016000)
Feature valueNo
Feature nameSystem configuration TN-C-S (EF009933)
Feature valueNo
Feature nameSystem configuration other (EF009932)
Feature valueNo
Feature nameSystem configuration TT (EF009931)
Feature valueNo
Feature nameSystem configuration TN-S (EF009930)
Feature valueNo
Feature nameSystem configuration TN-C (EF009929)
Feature valueNo
Feature nameSystem configuration TN (EF009928)
Feature valueNo
Feature nameSystem configuration IT (EF009927)
Feature valueNo
Feature nameSystem configuration DC (EF009926)
Feature valueYes
Feature nameIntegrated backup fuse (EF008797)
Feature valueNo
Feature nameCategory type 2 (EF004230)
Feature valueYes
Feature nameWith remote signalling contact (EF000422)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameSignalling at the device (EF004241)
Feature valueOptic
Feature nameConstruction size (EF002566)
Feature value3 modular spacing
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm

DATASHEET - PDF
