LOVATO ELECTRICSurge protection devices - LOVATO ELECTRICSG2DG600M2 LOVATO SURGE PROTECTION DEVICE TYPE 2 600VDC

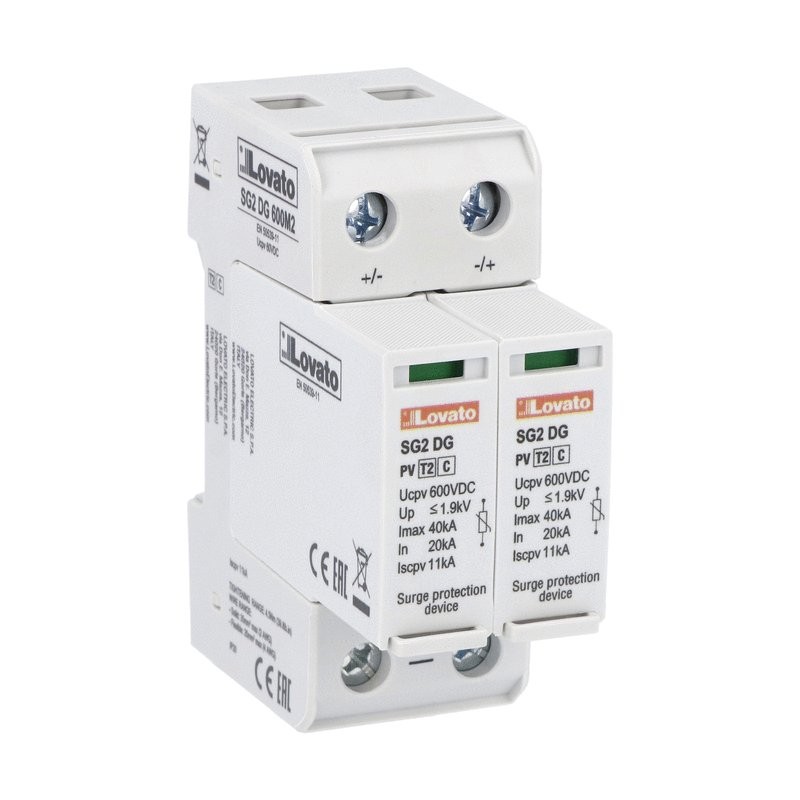

LOVATO ELECTRIC SG2DG600M2 SG2DG600M2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SG2DG600M2 LOVATO SURGE PROTECTION DEVICE TYPE 2 600VDC

Reference: SG2DG600M2

Manufacturer: LOVATO ELECTRIC

Description:

SURGE PROTECTION DEVICE TYPE 2 600VDC
Surge protection device type 2 for photovoltaic applications with plug-in cartridge, Ucpv 600VDC, +, -, PE. Without remote contact
TYPE 2 SURGE ARRESTER FOR PHOTOVOLTAIC APPLICATIONS WITH REMOVABLE CARTRIDGE, SHORT CIRCUIT CURRENT ISCPV 500A, +, -, PE. CONTACTLESS REMOTE

Categories:

  • Earthing, lightning and surge protection > Surge protection device for power supply systems
  • LOVATO ELECTRIC > Surge protection devices - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 86,88 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

SG2DG600M2

Surge protection device type 2 for photovoltaic applications with plug-in cartridge, Ucpv 600VDC, +, -, PE. Without remote contact

Technical specifications

Type of product:
SPD
Type of system:
Photovoltaic
Type / Class:
2
In [kA]:
20
Rated voltage [VDC]:
600
Type of mounting:
Din rail
Eco-smart solution:
No
For photovoltaic application:
Yes
Order codeSG2DG600M2
Weight [g]293.33
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]350X107X110
Volume [cm³]314.574
Bar code [EAN13]8013975245927
HS Code85365080

105.01 £

ETIM for SG2DG600M2 Earthing, lightning and surge protection (EC000941)

Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameSignalling at the device (EF004241)
Feature valueOptic
Feature nameConstruction size (EF002566)
Feature value2 modular spacing
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameLeakage-current free (EF016002)
Feature valueNo
Feature nameIntegrated short-circuit protection (EF016000)
Feature valueNo
Feature nameSystem configuration TN-C-S (EF009933)
Feature valueNo
Feature nameSystem configuration other (EF009932)
Feature valueNo
Feature nameSystem configuration TT (EF009931)
Feature valueNo
Feature nameSystem configuration TN-S (EF009930)
Feature valueNo
Feature nameSystem configuration TN-C (EF009929)
Feature valueNo
Feature nameSystem configuration TN (EF009928)
Feature valueNo
Feature nameSystem configuration IT (EF009927)
Feature valueNo
Feature nameSystem configuration DC (EF009926)
Feature valueYes
Feature nameIntegrated backup fuse (EF008797)
Feature valueNo
Feature nameCategory type 2 (EF004230)
Feature valueYes
Feature nameWith remote signalling contact (EF000422)
Feature valueNo
Feature nameIntegrated short-circuit protection selective to fuse gG (EF016001)
Feature value11000 A
Feature nameMax. overcurrent protection device, series connection (fuse) (EF015963)
Feature value11 A
Feature nameMax. overcurrent protection device, parallel connection (fuse) (EF015962)
Feature value11 A
Feature nameShort-circuit breaking capacity (Isccr) (EF012627)
Feature value11 kA
Feature nameMax. discharge surge current (8/20) (EF012274)
Feature value40 kA
Feature nameMax. conductor cross section flexible (fine-strand) (EF008828)
Feature value25 mm²
Feature nameMax. conductor cross section solid (solid, stranded) (EF008827)
Feature value35 mm²
Feature nameMax. PV-voltage (EF008795)
Feature value600 V
Feature nameMax. continuous voltage DC (EF004777)
Feature value600 V
Feature nameVoltage protection level L-N (EF004236)
Feature value1900 kV
Feature nameNominal voltage DC (EF004221)
Feature value600 V
Feature nameNominal discharge surge current (8/20) (EF004214)
Feature value20 kA
Feature nameVoltage protection level (EF003525)
Feature value1900 kV
Feature nameNumber of conductors (without earthing) (EF001148)
Feature value2

DATASHEET - PDF
