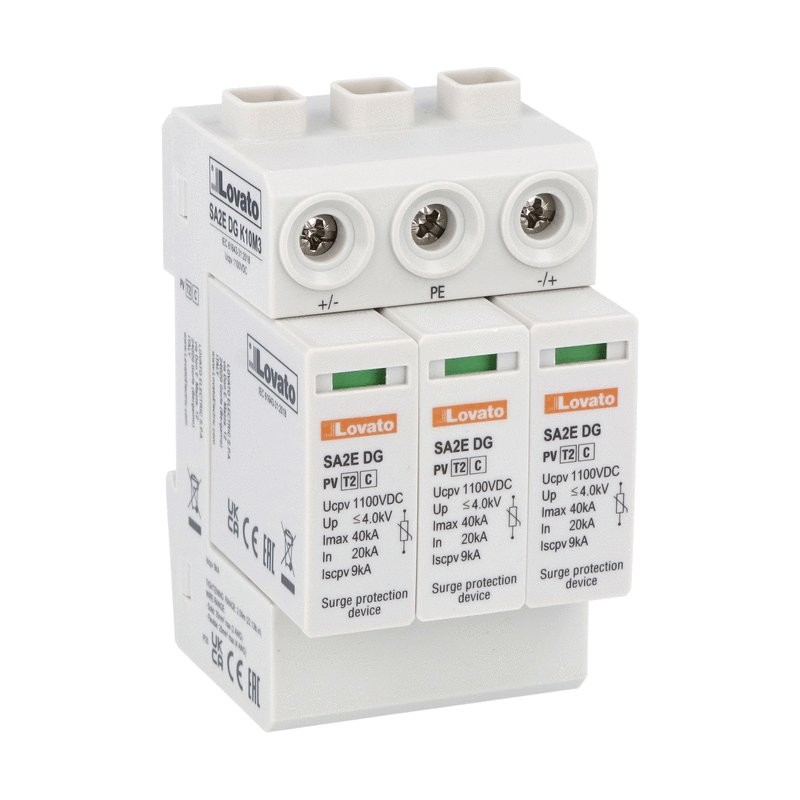

LOVATO ELECTRIC SA2EDGK10M3 SA2EDGK10M3 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SA2EDGK10M3 LOVATO TYPE 2 SPD 1100VDC LOW PROFILE

Reference: SA2EDGK10M3

Manufacturer: LOVATO ELECTRIC

Description:

TYPE 2 SPD 1100VDC LOW PROFILE
Surge protection device type 2 for photovoltaic applications with plug-in cartridge, EN short-circuit current rating Iscpv 9kA, +, -, PE. Without remote contact

Categories:

  • Earthing, lightning and surge protection > Surge protection device for power supply systems
  • LOVATO ELECTRIC > Surge protection devices - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 203,22 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

SA2EDGK10M3

Surge protection device type 2 for photovoltaic applications with plug-in cartridge, EN short-circuit current rating Iscpv 9kA, +, -, PE. Without remote contact

Technical specifications

Type of product:
SPD
Type of system:
Photovoltaic
Type / Class:
2
In [kA]:
20
Rated voltage [VDC]:
1100
Type of mounting:
Din rail
Eco-smart solution:
Yes
For photovoltaic application:
Yes
Order codeSA2EDGK10M3
Weight [g]329
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]110X080X060
Volume [cm³]528
Bar code [EAN13]8013975271384
HS Code85365080

163.98 £

ETIM for SA2EDGK10M3 Earthing, lightning and surge protection (EC000941)

Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameSignalling at the device (EF004241)
Feature valueOptic
Feature nameConstruction size (EF002566)
Feature value3 modular spacing
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameLeakage-current free (EF016002)
Feature valueNo
Feature nameIntegrated short-circuit protection (EF016000)
Feature valueNo
Feature nameSystem configuration TN-C-S (EF009933)
Feature valueNo
Feature nameSystem configuration other (EF009932)
Feature valueNo
Feature nameSystem configuration TT (EF009931)
Feature valueNo
Feature nameSystem configuration TN-S (EF009930)
Feature valueNo
Feature nameSystem configuration TN-C (EF009929)
Feature valueNo
Feature nameSystem configuration TN (EF009928)
Feature valueNo
Feature nameSystem configuration IT (EF009927)
Feature valueNo
Feature nameSystem configuration DC (EF009926)
Feature valueNo
Feature nameIntegrated backup fuse (EF008797)
Feature valueNo
Feature nameCategory type 2 (EF004230)
Feature valueYes
Feature nameWith remote signalling contact (EF000422)
Feature valueNo
Feature nameIntegrated short-circuit protection selective to fuse gG (EF016001)
Feature value11000 A
Feature nameMax. discharge surge current (8/20) (EF012274)
Feature value40 kA
Feature nameMax. conductor cross section flexible (fine-strand) (EF008828)
Feature value25 mm²
Feature nameMax. conductor cross section solid (solid, stranded) (EF008827)
Feature value35 mm²
Feature nameVoltage protection level L-N (EF004236)
Feature value4 kV
Feature nameNominal voltage DC (EF004221)
Feature value1100 V
Feature nameNominal discharge surge current (8/20) (EF004214)
Feature value20 kA
Feature nameMax. continuous voltage AC (EF004198)
Feature value320 V
Feature nameVoltage protection level (EF003525)
Feature value4 kV
Feature nameNumber of conductors (without earthing) (EF001148)
Feature value2
