LOVATO ELECTRICSwitching power supplies - LOVATO ELECTRICPSE112024 LOVATO Single-phase power supply compact version for fixing in GUIDE DIN 5A 24VDC

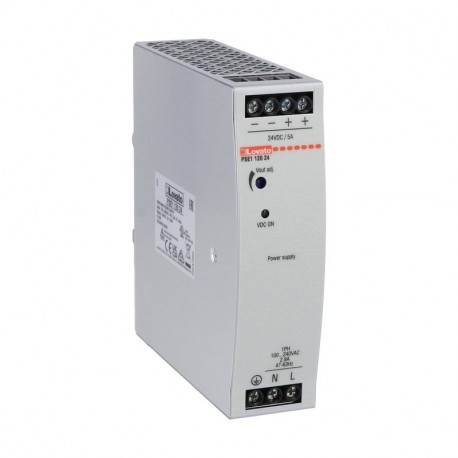

LOVATO ELECTRIC PSE112024 PSE112024 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PSE112024 LOVATO Single-phase power supply compact version for fixing in GUIDE DIN 5A 24VDC

Reference: PSE112024

Manufacturer: LOVATO ELECTRIC

Description:

Single-phase power supply compact version for fixing in GUIDE DIN 5A 24VDC
Compact DIN rail switching power supply, single-phase. 24VDC, 5A/120W

Categories:

  • Low-voltage industrial components > DC-power supply
  • LOVATO ELECTRIC > Switching power supplies - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 132,52 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

PSE112024

Compact DIN rail switching power supply, single-phase. 24VDC, 5A/120W

Technical specifications

Type of product:
Switching power supplies
Rated output voltage DC [VDC]:
24
Rated output current [A]:
5
Rated output power [W]:
120
Type of input:
Single-phase
Rated supply voltage AC [VAC]:
Multivoltage 100...240
Type of installation:
DIN rail mounting
Order codePSE112024
Weight [g]406.9
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]125X140X065
Volume [cm³]1137.5
Bar code [EAN13]8013975268438
HS Code8504318090

145.45 £

ETIM for PSE112024 Low-voltage industrial controls and switchgear (EC002540)

Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC
Feature nameType of electric connection (EF003961)
Feature valueScrew-/spring clamp connection
Feature nameSIL according to IEC 61508 (EF009889)
Feature valueNone
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueNone
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameRated supply voltage DC (EF007078)
Feature value120 V
Feature nameRated supply voltage AC 60 Hz (EF007077)
Feature value100 V
Feature nameRated supply voltage AC 50 Hz (EF007076)
Feature value100 V
Feature name1st secondary output voltage (EF006792)
Feature value24 V
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameModular version (EF001126)
Feature valueNo
Feature nameWall mounting possible (EF003973)
Feature valueNo
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature nameOutput voltage stabilized (EF003092)
Feature valueYes
Feature nameSecondary voltage adjustable (EF007002)
Feature valueYes
Feature nameDepth (EF000049)
Feature value100 mm
Feature nameHeight (EF000040)
Feature value90 mm
Feature nameWidth (EF000008)
Feature value40.5 mm
Feature namePower output (EF003034)
Feature value120 W
Feature nameNominal value output current 1 (EF009396)
Feature value5 A
Feature nameNominal value output voltage 1 (EF009393)
Feature value24 V
Feature nameMax. output current 1 (EF008284)
Feature value5 A

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE LOVATO EN
99 Mbytes
