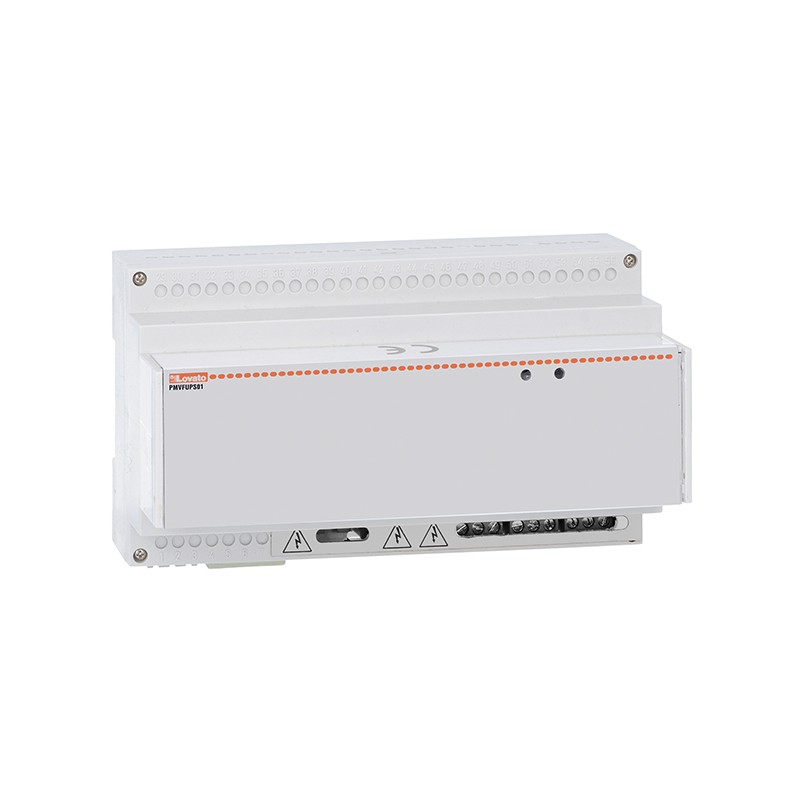

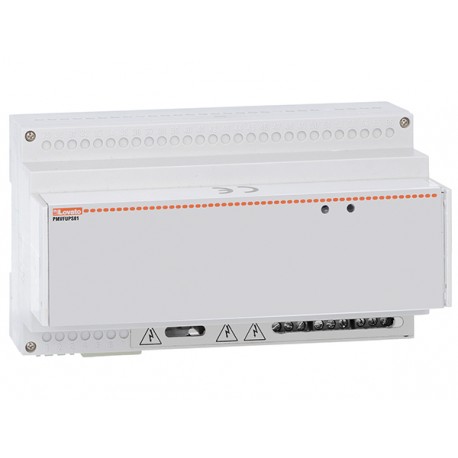

PMVFUPS01 LOVATO BACKUP POWER SUPPLY FOR IP UNITS
PMVFUPS01
LOVATO ELECTRIC
BACKUP POWER SUPPLY FOR IP UNITS
BACKUP POWER SUPPLY FOR INTERFACE PROTECTION UNITS PMVF… AC SUPPLIED. INPUT 230VAC, OUTPUT 230VAC WITH STORED ENERGY 200Ws AND POWER 250VA
Protection relays - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | PMVFUPS01 |
| Weight [g] | 700 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X170X080 |
| Volume [cm³] | 1360 |
| Bar code [EAN13] | 8013975296172 |
| HS Code | 8504318090 |
IEC/EN/BS 61010-1
| Product designation | Backup power supply for IP units | |||
| Product type designation | PMVFUPS01 | |||
| General characteristics | ||||
| Description | Backup power supply without interruption, full static technology | |||
| Type of system | Single phase | |||
| Power supply | ||||
| Auxiliary supply voltage Us | 230VAC | |||
| Operating voltage range | 196...264VAC | |||
| Rated frequency | Hz | 50 | ||
| Operational frequency | ||||
| min | Hz | 45 | ||
| max | Hz | 55 | ||
| Protection | Fuse 6.3A (5x20) | |||
| Power outputs | ||||
| Voltage | 230VAC | |||
| Frequency | Hz | 50 | ||
| Protection | Fuse 5A(5x20) + PTC | |||
| Power | VA | 250 x 1s; 1250 per 200ms | ||
| Available energy | Ws | 200 | ||
| Time to store energy | 15s | |||
| Connections | ||||
| Terminals type | Fixed | |||
| Tightening torque for terminals | ||||
| max | Nm | 0.5 | ||
| max | Ibin | 4.5 | ||
| Conductor cross section | ||||
| AWG/Kcmil | ||||
| min | AWG | 24 | ||
| Max | AWG | 12 | ||
| IEC | ||||
| min | mm² | 0.2 | ||
| Max | mm² | 2.5 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -5 | ||
| max | °C | +55 | ||
| Housing | ||||
| Execution (n° of modules) | 9 | |||
| Mounting | DIN rail EN 50022 | |||
| IEC degree of protection | IP20 | |||
| Dimensions (W x H x D) | mm | 157.5 x 90 x 70 | ||
| Weight | g | 500 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC002540 - DC-power supply | |||
