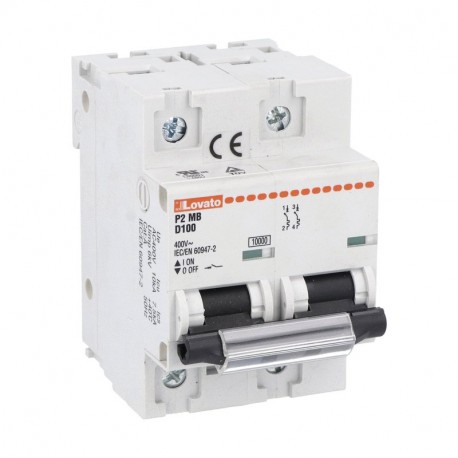

P2MB2PD100 LOVATO MINIATURE CIRCUIT BREAKER 2P D 100A 10KA
P2MB2PD100
LOVATO ELECTRIC
4
MINIATURE CIRCUIT BREAKER 2P D 100A 10KA
Miniature circuit breaker, 1P, 2P, 3P and 4P - 10kA, characteristic D, 100A
CIRCUIT BREAKER, 1P, 2P, 3P AND 4P - 10KA, FEATURE D, 100A
Circuit breakers and fuses > Miniature circuit breaker (MCB)
Miniature and residual circuit breakers
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲P2MB2PD100
Miniature circuit breaker, 1P, 2P, 3P and 4P - 10kA, characteristic D, 100A
Technical specifications
- Number of DIN modules:
- 3
- Tripping curve:
- D
- Rated current In [A]:
- 100
- Compliance:
- IEC / UL1077
| Order code | P2MB2PD100 |
|---|---|
| Weight [g] | 345.12 |
| Qty. per package | 4 |
| Multiple qty. of packs per order | 4 |
| Package dimensions [mm] | |
| Volume [cm³] | 500 |
| Bar code [EAN13] | 8013975228258 |
| HS Code | 85362090 |
123.15 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Release characteristic (EF000889) | C |
| Voltage type (EF000187) | AC/DC |
| Ambient temperature during operating (EF007515) | -40 °C |
| Connectable conductor cross section solid-core (EF007337) | 2.5 mm² |
| Frequency (EF000416) | 50 Hz |
| Additional equipment possible (EF008148) | Yes |
| Flush-mounted installation (EF007517) | No |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Explosion-proof (EF004663) | No |
| Rated impulse withstand voltage Uimp (EF011980) | 6 kV |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (EF009558) | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557) | 10 kA |
| Number of poles (total) (EF008618) | 2 |
| Number of protected poles (EF005548) | 2 |
| Width in number of modular spacings (EF002950) | 3 |
| Pollution degree (EF002570) | 3 |
| Over voltage category (EF002569) | 4 |
| Rated insulation voltage Ui (EF001366) | 400 V |
| Rated voltage (EF000228) | 400 V |
| Rated current (EF000227) | 100 A |
| Built-in depth (EF000218) | 67 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
