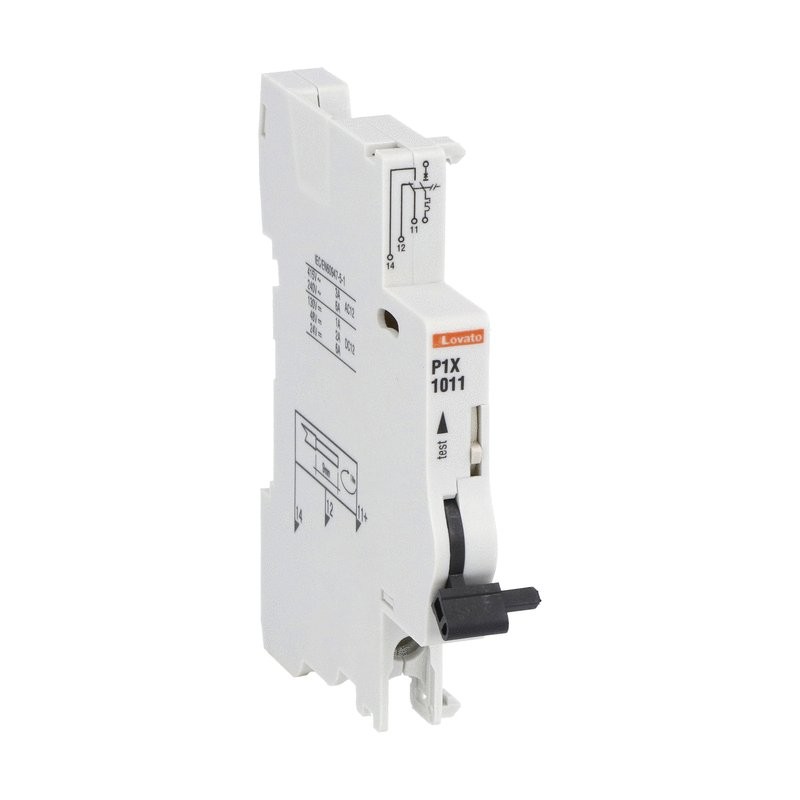

P1X1011S LOVATO AUXILIARY CONTACT 1 C/O
P1X1011S
LOVATO ELECTRIC
AUXILIARY CONTACT 1 C/O
Auxiliary contact, side mount, 1 changeover
AUXILIARY CONTACT, 1 CHANGEOVER CONTACT, SIDE MOUNTING
Low-voltage industrial components > Auxiliary contact block
Miniature and residual circuit breakers
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲P1X1011S
Auxiliary contact, side mount, 1 changeover
Technical specifications
- Type of product:
- Accessories
- Number of DIN modules:
- 0.5
- Number of poles:
- 1 C/O
- Rated current In [A]:
- 6
- Compliance:
- IEC/EN/BS 60947-5-1
- Type of accessories:
- Auxiliary contact
- Accessories for:
- P1MS…
| Order code | P1X1011S |
|---|---|
| Weight [g] | 37 |
| Qty. per package | 0 |
| Multiple qty. of packs per order | 0 |
| Package dimensions [mm] | 090X080X020 |
| Volume [cm³] | 144 |
| Bar code [EAN13] | 8013975267431 |
| HS Code | 85365080 |
26.16 £
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Lamp holder (EF000048) | None |
| Model (EF000010) | Clip-on |
| Mounting method (EF000003) | Side mounting |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of fault-signal switches (EF007613) | 0 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 6 A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
