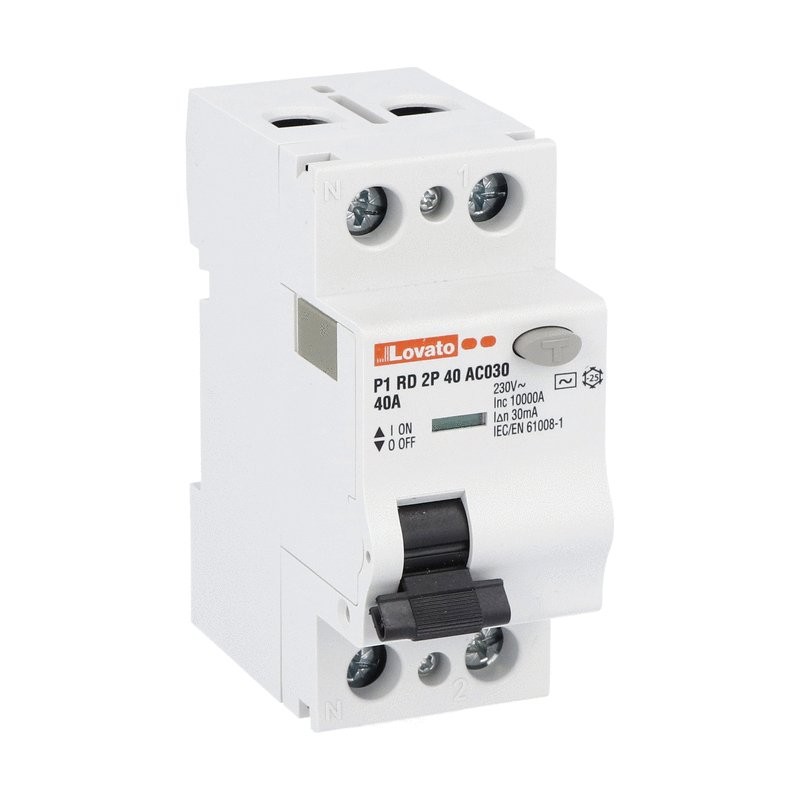

P1RD2P40AC030 LOVATO RESIDUAL CURRENT DEVICE 2P 40A IDN 30MA
P1RD2P40AC030
LOVATO ELECTRIC
RESIDUAL CURRENT DEVICE 2P 40A IDN 30MA
Residual current operated circuit breaker, 2 modules, 2P - type AC, 40A, 30mA
Circuit breakers and fuses > Residual current circuit breaker (RCCB)
Miniature and residual circuit breakers
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Best sellers
▲More info
▲P1RD2P40AC030
Residual current operated circuit breaker, 2 modules, 2P - type AC, 40A, 30mA
Technical specifications
- Type of product:
- Residual current operated circuit breakers
- Number of DIN modules:
- 2
- Number of poles:
- 2P
- Residual operation characteristic:
- AC
- Rated residual current I∆n [mA]:
- 30
- Rated current In [A]:
- 40
- Compliance:
- IEC
| Order code | P1RD2P40AC030 |
|---|---|
| Weight [g] | 185 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 115X040X080 |
| Volume [cm³] | 368 |
| Bar code [EAN13] | 8013975269268 |
| HS Code | 85363030 |
137.07 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Frequency (EF005455) | 50/60 Hz |
| Leakage current type (EF002560) | AC |
| Voltage type (EF000187) | AC |
| Mounting method (EF000003) | DIN rail |
| Ambient temperature during operating (EF007515) | -25 °C |
| Connectable conductor cross section solid-core (EF007337) | 2.5 mm² |
| Additional equipment possible (EF008148) | Yes |
| With interlocking device (EF007385) | No |
| Explosion-proof (EF004663) | No |
| Short-time delayed tripping (EF003604) | No |
| Selective protection (EF002561) | No |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Width in number of modular spacings (EF002950) | 2 |
| Pollution degree (EF002570) | 2 |
| Short-circuit breaking capacity (Icw) (EF002562) | 10 kA |
| Rated fault current (EF002358) | 10 A |
| Number of poles (EF001391) | 2 |
| Rated insulation voltage Ui (EF001366) | 400 V |
| Rated voltage (EF000228) | 230 V |
| Rated current (EF000227) | 40 A |
| Built-in depth (EF000218) | 66 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
