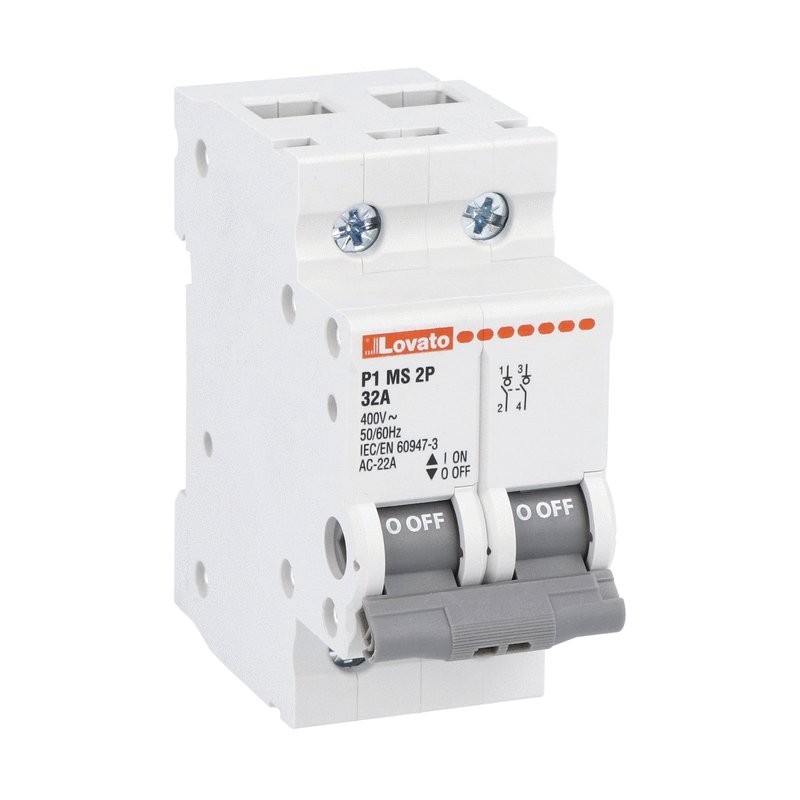

P1MS2P032 LOVATO MODULAR SWITCH DISCONNECTOR 2P 32A
P1MS2P032
LOVATO ELECTRIC
MODULAR SWITCH DISCONNECTOR - 2P 32A
Modular switch disconnector - 2P 32A
MODULAR DISCONNECTOR - 2P 32A
Circuit breakers and fuses > Miniature circuit breaker (MCB)
Miniature and residual circuit breakers
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲P1MS2P032
Modular switch disconnector - 2P 32A
Technical specifications
- Type of product:
- Modular switch disconnectors
- Number of DIN modules:
- 2
- Number of poles:
- 2P
- Rated current In [A]:
- 32
- Compliance:
- IEC
| Order code | P1MS2P032 |
|---|---|
| Weight [g] | 160 |
| Qty. per package | 6 |
| Multiple qty. of packs per order | 6 |
| Package dimensions [mm] | 080X080X040 |
| Volume [cm³] | 42.667 |
| Bar code [EAN13] | 8013975267288 |
| HS Code | 85369095 |
23.44 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Voltage type (EF000187) | AC |
| Ambient temperature during operating (EF007515) | -25 °C |
| Connectable conductor cross section solid-core (EF007337) | 1 mm² |
| Frequency (EF000416) | 50 Hz |
| Additional equipment possible (EF008148) | Yes |
| Flush-mounted installation (EF007517) | No |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Explosion-proof (EF004663) | No |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Number of poles (total) (EF008618) | 2 |
| Number of protected poles (EF005548) | 2 |
| Width in number of modular spacings (EF002950) | 2 |
| Pollution degree (EF002570) | 3 |
| Over voltage category (EF002569) | 3 |
| Rated insulation voltage Ui (EF001366) | 1000 V |
| Rated voltage (EF000228) | 440 V |
| Rated current (EF000227) | 32 A |
| Built-in depth (EF000218) | 66 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
