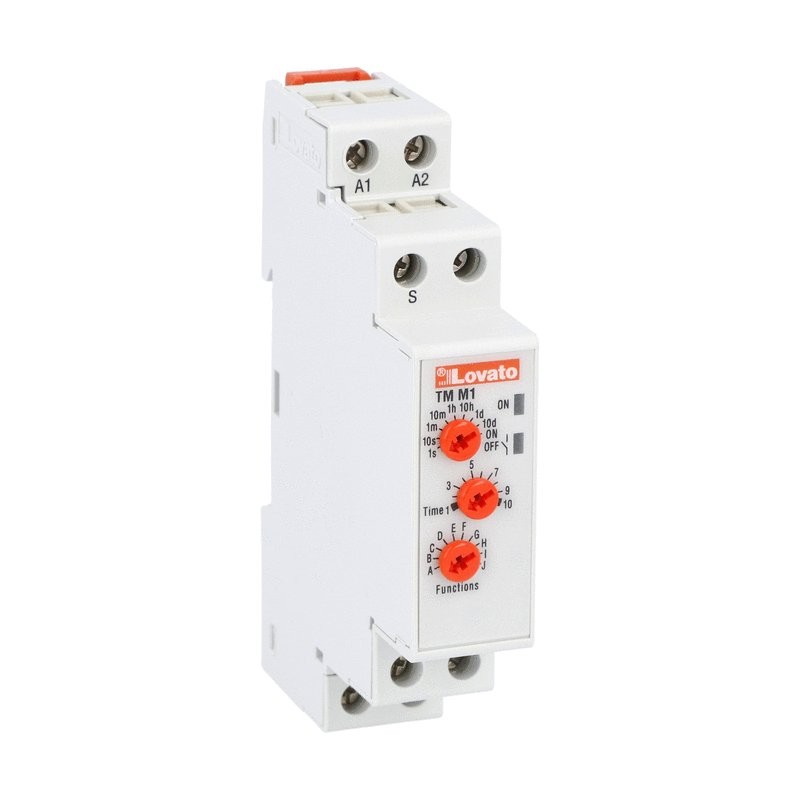

TMM1 LOVATO MULTIFUNCTION TIME RELAY. MULTISCALE. MULTIVOLTAGE. 1 RELAY OUTPUT, MODULAR VERSION, 12…240VAC/DC
TMM1
LOVATO ELECTRIC
MULTIFUNCTION TIME RELAY. MULTISCALE. MULTIVOLTAGE. 1 RELAY OUTPUT, MODULAR VERSION, 12…240VAC/DC
MOD.TIMER MULTIFUNCTION, MULTI SCALE & M
Multifunction time relay, multiscale, multivoltage, modular version, 12...240VAC/DC
Relays > Timer relay
Time relays - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Often bought together
▲Best sellers
▲More info
▲TMM1
Multifunction time relay, multiscale, multivoltage, modular version, 12...240VAC/DC
Technical specifications
- Type of product:
- Time relays
- Type of installation:
- Modular DIN rail mounting
- Functions:
- Multifunction
- Programming mode:
- Potentiometers
| Order code | TMM1 |
|---|---|
| Weight [g] | 86 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 067X022X094 |
| Volume [cm³] | 138.556 |
| Bar code [EAN13] | 8013975147108 |
| HS Code | 91070000 |
91.96 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electric connection (EF003961) | Screw connection |
| Rated control supply voltage DC (EF003980) | 12 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 12 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 12 V |
| Time range (EF003384) | 0.1 s |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Outputs, reversible delayed/undelayed (EF006988) | No |
| Pluggable on auxiliary contact block (EF006952) | No |
| Function pulse shaping (EF003403) | No |
| Function floating contact on de-energization (EF003402) | No |
| Function delay on de-energization (EF003401) | Yes |
| Function star-delta (EF003380) | No |
| Function floating contact on energization (EF003378) | No |
| Function delay-on energization (EF003374) | Yes |
| With semiconductor output (EF003373) | No |
| Clock function, starting with pulse, variable (EF003366) | Yes |
| Clock function, starting with pause, variable (EF003365) | Yes |
| Function flashing, starting with pulse, fixed time (EF003364) | Yes |
| Function flashing, starting with pause, fixed time (EF003363) | Yes |
| Suitable as remote control (EF003362) | No |
| Remote operation possible (EF003361) | No |
| Number of outputs, delayed, change-over contact (EF006840) | 1 |
| Number of outputs, delayed, normally open contact (EF006839) | 0 |
| Number of outputs, delayed, normally closed contact (EF006838) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Depth (EF000049) | 64.9 mm |
| Height (EF000040) | 104.7 mm |
| Width (EF000008) | 17.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| TMM1 TMM1 17-Time-relays-17-January-2018_EN.pdf | 343 Kbytes |
|
