LOVATO ELECTRICElectromechanical starters - LOVATO ELECTRICME070FD024 LOVATO ELECTRONIC DOL STARTER 24VDC 7A
LOVATO ELECTRIC ME070FD024 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

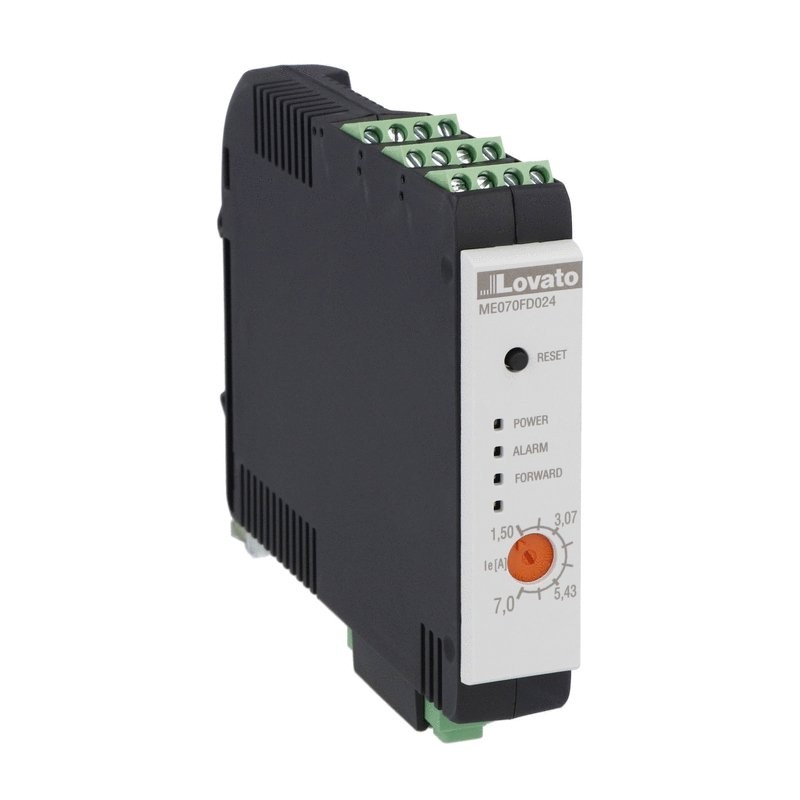

ME070FD024 LOVATO ELECTRONIC DOL STARTER 24VDC 7A

Code: ME070FD024

Manufacturer: LOVATO ELECTRIC

Description:

ELECTRONIC DOL STARTER 24VDC 7A
Electronic direct-on-line starter, 7A, integrated motor thermal protection, operational voltage Ue ≤500VAC, auxiliary and control supply voltage 24VDC
AVVIATORE. DIRETTO ELETTR. 24VDC 7A

Categories:

  • Low-voltage industrial components > Motor starter/Motor starter combination
  • LOVATO ELECTRIC > Electromechanical starters - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 210,83 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ME070FD024

Electronic direct-on-line starter, 7A, integrated motor thermal protection, operational voltage Ue ≤500VAC, auxiliary and control supply voltage 24VDC

Technical specifications

Type of product:
Electronic motor starter
Functions:
Direct-On-Line starter
Safe torque Off (STO) safety function:
No
Thermal protection:
Integrated, class 10A
IEC operating current and power Ie (AC3) 400V [A/Kw]:
7
Type:
Electronic direct-on-line starter, 7A, integrated motor thermal protection
Order codeME070FD024
Weight [g]300
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]150X120X30
Volume [cm³]540
Bar code [EAN13]8013975320952
HS Code85365003

177.68 £

ETIM for ME070FD024 Low-voltage industrial controls and switchgear (EC001037)

Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameOverload release current setting (EF002336)
Feature value1.5 A
Feature nameAmbient temperature, upper operating limit (EF009603)
Feature value50 °C
Feature nameRated operation current at AC-3, 400 V (EF009602)
Feature value7.0 A
Feature nameRated power, 460 V, 60 Hz, 3-phase (EF009600)
Feature value3 kW
Feature nameNumber of indicator lights (EF001965)
Feature value3
Feature nameRated operation current Ie (EF001443)
Feature value7.0 A
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value2
Feature nameRated operation power at AC-3, 400 V (EF001364)
Feature value3 kW
Feature nameDepth (EF000049)
Feature value140 mm
Feature nameHeight (EF000040)
Feature value100 mm
Feature nameWidth (EF000008)
Feature value22.5 mm
Feature nameTemperature compensated overload protection (EF009604)
Feature valueYes
Feature nameSupporting protocol for SafetyBUS p (EF007527)
Feature valueNo
Feature nameSupporting protocol for PROFIsafe (EF007526)
Feature valueNo
Feature nameSupporting protocol for PROFINET IO (EF007525)
Feature valueNo
Feature nameSupporting protocol for PROFINET CBA (EF007524)
Feature valueNo
Feature nameSupporting protocol for Foundation Fieldbus (EF007522)
Feature valueNo
Feature nameSupporting protocol for EtherNet/IP (EF007521)
Feature valueNo
Feature nameSupporting protocol for DeviceNet Safety (EF007520)
Feature valueNo
Feature nameSupporting protocol for AS-Interface Safety at Work (EF007519)
Feature valueNo
Feature nameWith fuse (EF006693)
Feature valueNo
Feature nameWith short-circuit release (EF006691)
Feature valueNo
Feature nameSupporting protocol for INTERBUS-Safety (EF006662)
Feature valueNo
Feature nameSupporting protocol for SERCOS (EF006657)
Feature valueNo
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature nameExternal reset possible (EF003426)
Feature valueYes
Feature nameSupporting protocol for other bus systems (EF003062)
Feature valueNo
Feature nameSupporting protocol for SUCONET (EF003060)
Feature valueNo
Feature nameSupporting protocol for DeviceNet (EF003059)
Feature valueNo
Feature nameSupporting protocol for Data-Highway (EF003058)
Feature valueNo
Feature nameSupporting protocol for Modbus (EF003057)
Feature valueNo
Feature nameSupporting protocol for INTERBUS (EF003054)
Feature valueNo
Feature nameSupporting protocol for CAN (EF003053)
Feature valueNo
Feature nameSupporting protocol for PROFIBUS (EF003052)
Feature valueNo
Feature nameSupporting protocol for ASI (EF003051)
Feature valueNo
Feature nameSupporting protocol for TCP/IP (EF003050)
Feature valueNo
Feature nameSupporting protocol for LON (EF003017)
Feature valueNo
Feature nameSuitable for emergency stop (EF001433)
Feature valueNo
Feature nameWith transformer (EF000278)
Feature valueNo
Feature nameType of motor starter (EF009598)
Feature valueDirect starter
Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameType of electrical connection for auxiliary- and control current circuit (EF006979)
Feature valueScrew connection
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameRelease class (EF006668)
Feature valueCLASS 10 A
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE LOVATO EN
99 Mbytes
