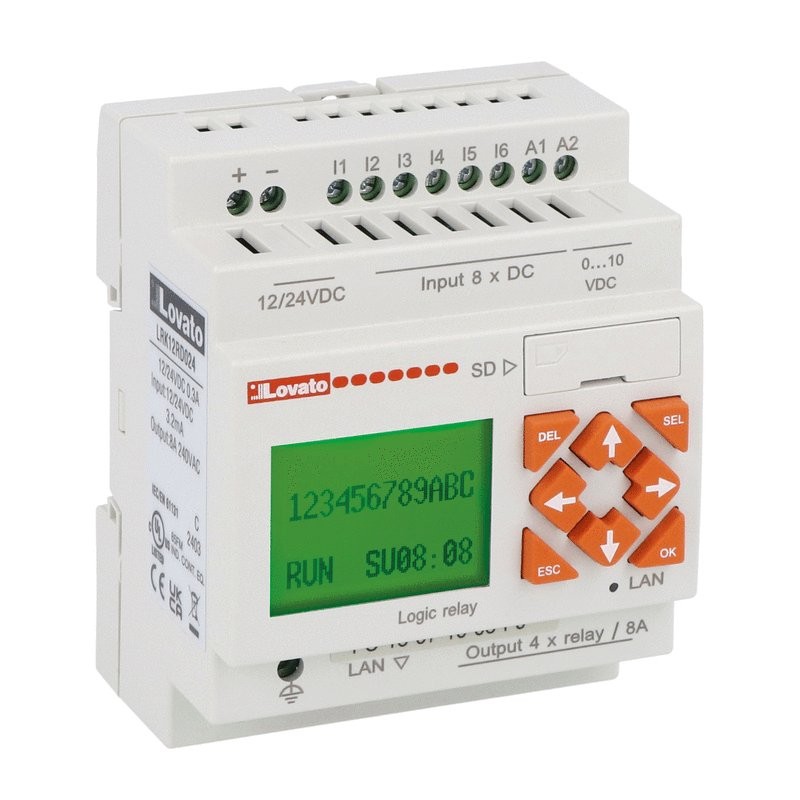

LRK12RD024 LOVATO Programmable 8E/4O 12-24VDC ETHERNET Relay
LRK12RD024
LOVATO ELECTRIC
Programmable 8E/4O 12-24VDC ETHERNET Relay
Micro PLC, base module with display, auxiliary supply voltage 12/24VDC, 8/4 relay, built-in Ethernet port
PLC's > Logic module
Micro PLCs - LOVATO ELCTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲LRK12RD024
Micro PLC, base module with display, auxiliary supply voltage 12/24VDC, 8/4 relay, built-in Ethernet port
Technical specifications
- Type of product:
- Micro PLC base modules
- Max I/O number:
- 12 (8 inputs + 4 outputs) up to 36 with LRE modules
- Rated supply voltage:
- 12/24VDC
- Type of built-in outputs:
- Relay
- Built-in communication port:
- Ethernet
- Display:
- LCD display, 4 lines x 16 characters
| Order code | LRK12RD024 |
|---|---|
| Weight [g] | 240 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 096X065X080 |
| Volume [cm³] | 499.2 |
| Bar code [EAN13] | 8013975319222 |
| HS Code | 8537101090 |
134.67 £
| Feature Name | Feature Value |
|---|---|
| Supply voltage DC (EF007534) | 12 V |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 1 |
| Number of analogue outputs (EF001995) | 0 |
| Number of analogue inputs (EF001994) | 2 |
| Number of digital outputs (EF001993) | 4 |
| Number of digital inputs (EF001992) | 8 |
| Depth (EF000049) | 59.6 mm |
| Height (EF000040) | 90 mm |
| Width (EF000008) | 72 mm |
| Radio standard UMTS (EF008525) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard GPRS (EF008523) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| IO link master (EF007298) | No |
| Basic device (EF007279) | Yes |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard Bluetooth (EF007178) | No |
| Expansion device (EF007163) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Suitable for rail mounting (EF003972) | Yes |
| With relay output (EF003198) | Yes |
| Redundancy (EF003156) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for TCP/IP (EF003050) | Yes |
| With optical interface (EF003028) | No |
| Supporting protocol for LON (EF003017) | No |
| Suitable for safety functions (EF001597) | No |
| With display (EF000458) | Yes |
| With time switch clock (EF000256) | Yes |
| Expandable (EF000119) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Voltage type (supply voltage) (EF002991) | DC |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| LRK12RD024 EN_LRK12RD024.pdf | 195 Kbytes |
|
