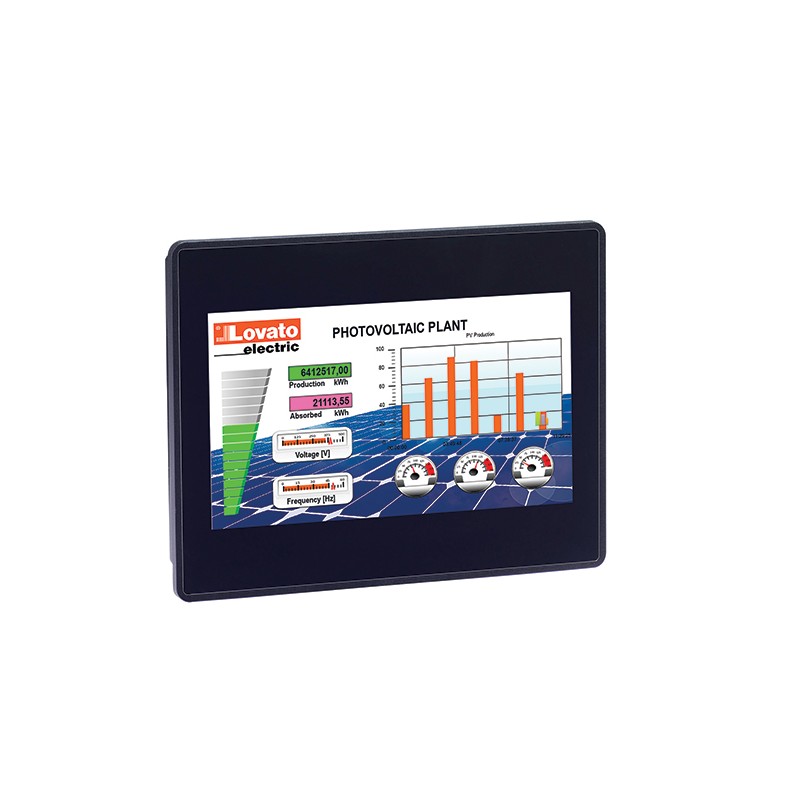

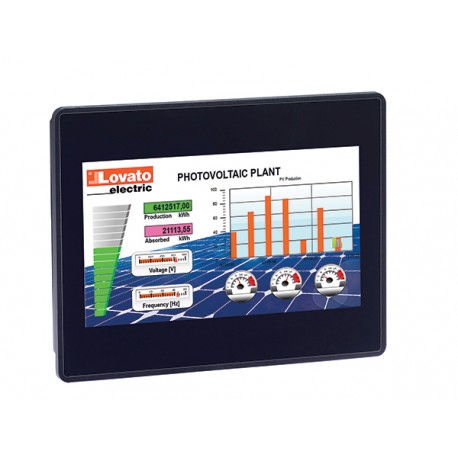

LRHA07 LOVATO HMI DISPLAY 7” TFT LCD 64K COLORS TOUCH-SCREEN, SUPPLY 24VDC, PORTS ETHERNET, RS232/RS485/RS42..
LRHA07
LOVATO ELECTRIC
HMI DISPLAY 7” TFT LCD 64K COLORS TOUCH-SCREEN, SUPPLY 24VDC, PORTS ETHERNET, RS232/RS485/RS422, USB
HMI DISPLAY 7" TFT LCD
HMI display 7” TFT LCD 64K colors touch-screen, supply 12-24VDC, ports Ethernet, RS232/RS485/RS422, USB. Protocols Modbus-RTU, Modbus-TCP, SIMATIC S7 Ethernet, OPC UA and MQTT
HMI DISPLAY 7 TFT LCD 64K COLORS TOUCH-SCREEN, POWER SUPPLY. 24VDC, ETHERNET PORTS, RS232/RS485/RS422, USB. SUPPORT MODBUS RTU, MODBUS TCP, SIMATIC S7 ETHERNET, OPC UA AND MQTT PROTOCOLS
PLC's > Graphic panel
Micro PLCs - LOVATO ELCTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Often bought together
▲Best sellers
▲More info
▲LRHA07
HMI display 7” TFT LCD 64K colors touch-screen, supply 12-24VDC, ports Ethernet, RS232/RS485/RS422, USB. Protocols Modbus-RTU, Modbus-TCP, SIMATIC S7 Ethernet, OPC UA and MQTT
Technical specifications
- Type of product:
- HMI
- Rated supply voltage:
- 12-24VDC
- Built-in communication port:
- Ethernet, USB and serial (RS232, RS485, RS422 software configurable)
- Display:
- 7" graphic TFT display, touch screen, 64k colors
| Order code | LRHA07 |
|---|---|
| Weight [g] | 854.9 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 240X100X200 |
| Volume [cm³] | 4800 |
| Bar code [EAN13] | 8013975232545 |
| HS Code | 85371091 |
792.51 £
| Feature Name | Feature Value |
|---|---|
| Touch technology (EF010884) | Resistive touch |
| Type of display (EF008244) | TFT |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Voltage type (supply voltage) (EF002991) | DC |
| Supply voltage DC (EF007534) | 24 V |
| Operating temperature (EF002393) | 0 °C |
| Radio standard UMTS (EF008525) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard GPRS (EF008523) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| IO link master (EF007298) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard Bluetooth (EF007178) | No |
| Wall mounting/direct mounting (EF007020) | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Suitable for rail mounting (EF003972) | No |
| With SW interfaces (EF003121) | Yes |
| Additional software components, loadable (EF003117) | Yes |
| With printer output (EF003115) | Yes |
| With recipes (EF003113) | Yes |
| Process default value (input) possible (EF003112) | Yes |
| Process value representation (output) possible (EF003111) | Yes |
| With message system (incl. buffer and confirmation) (EF003110) | Yes |
| With message indication (EF003109) | No |
| With alpha numeric keyboard (EF003106) | No |
| With numeric keyboard (EF003105) | No |
| Colour display (EF003097) | Yes |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for TCP/IP (EF003050) | Yes |
| Supporting protocol for LON (EF003017) | No |
| Suitable for safety functions (EF001597) | No |
| Number of system buttons (EF009260) | 0 |
| Number of buttons with LED (EF009259) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Height of the front (EF003652) | 147 mm |
| Width of the front (EF003651) | 187 mm |
| Number of online languages (EF003116) | 4 |
| Number of password levels (EF003114) | 3 |
| Useful project memory/user memory (EF003108) | 60000000 kByte |
| Number of function buttons, programmable (EF003103) | 0 |
| Number of pixels, vertical (EF003100) | 480 |
| Number of pixels, horizontal (EF003099) | 800 |
| Number of colours of the display (EF003098) | 64000 |
| Number of HW-interfaces other (EF003027) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces USB (EF003025) | 1 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 1 |
| Number of HW-interfaces RS-422 (EF003022) | 1 |
| Number of HW-interfaces RS-232 (EF003021) | 1 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 1 |
| Screen diagonal (EF002032) | 7 inch |
| Built-in depth (EF000218) | 29 mm |
