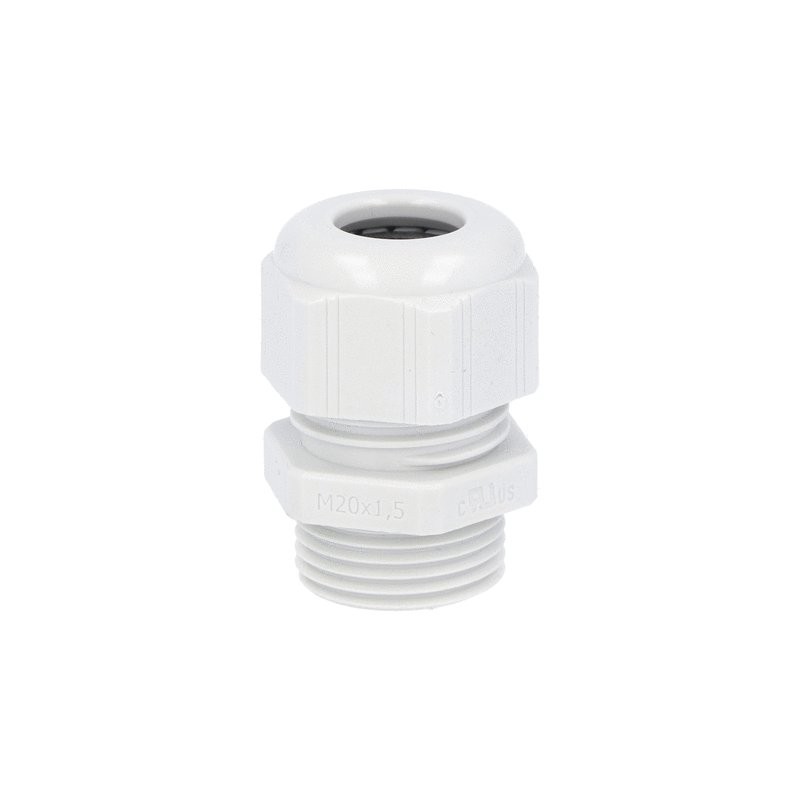

LPXP01 LOVATO Cable gland M20 with fixing nut
LPXP01
LOVATO ELECTRIC
Cable gland M20 with fixing nut
CABLE GLAND M20 WITH FIXING NUT
M20 cable gland for LPZP… control stations
Cable and wire entry systems > Cable gland
Pushbuttons and selector switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲LPXP01
M20 cable gland for LPZP… control stations
Technical specifications
- Type of product:
- Accessories
- Product characteristics:
- Cable gland
- Cable entry:
- PG13.5
- Type of accessories:
- Cable gland
- Accessories for:
- LPZP…
| Order code | LPXP01 |
|---|---|
| Weight [g] | 20 |
| Qty. per package | 50 |
| Multiple qty. of packs per order | 50 |
| Package dimensions [mm] | 250X450X020 |
| Volume [cm³] | 45 |
| Bar code [EAN13] | 8013975211595 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Degree of protection (IP) (EF005474) | IP65 |
| Material (EF002169) | Plastic |
| Thread type (EF001758) | Metric |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Other |
| Model (EF000010) | Other |
| Colour (EF000007) | Grey |
| Operating temperature (EF001742) | -25 °C |
| Snapping in opening (EF012547) | No |
| For armoured cable (EF012184) | No |
| Separable screw gland (EF005337) | Yes |
| With locknut (EF005049) | No |
| Flat cable coupling (EF004685) | No |
| Explosion-tested version (EF004191) | No |
| Glass-fibre reinforced (EF001210) | Yes |
| With strain relief (EF000878) | No |
| Shock resistant (EF000084) | Yes |
| Halogen free (EF000025) | Yes |
| Nominal thread size metric/PG (EF007839) | 20 |
| Pitch thread (EF003712) | 1.5 mm |
| Thread length (EF000368) | 0 mm |
| RAL-number (EF000116) | 7035 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
