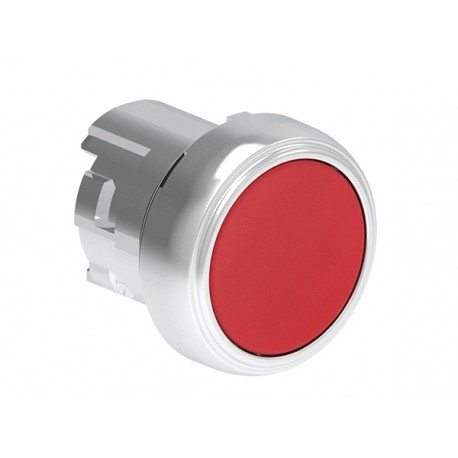

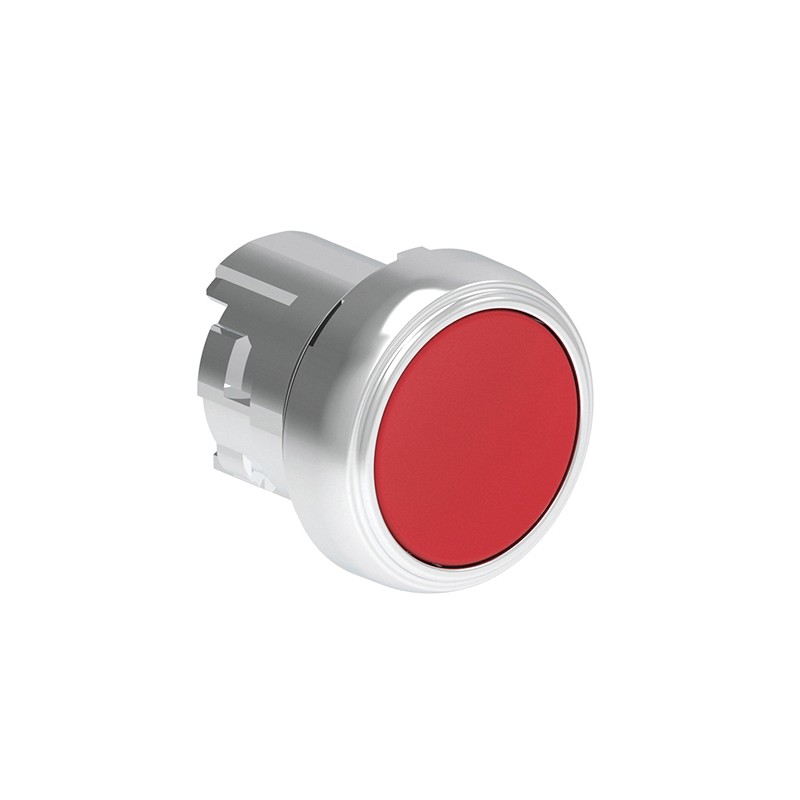

LPSQ104 LOVATO Red Metal Grade Switch
LPSQ104
LOVATO ELECTRIC
Red Metal Grade Switch
Push-Push button actuator Ø22mm Platinum series metal, flush. Push ON-Push OFF, red
Domestic switching devices > Push-switch button
Pushbuttons and selector switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲LPSQ104
Push-Push button actuator Ø22mm Platinum series metal, flush. Push ON-Push OFF, red
Technical specifications
- Type of product:
- Pushbuttons
- Type of actuator:
- Flush
- Series:
- Platinum metal Ø22mm
- Colour:
- Red
- Illuminated element:
- No
- Symbol:
- No
- Latching mechanism:
- Push-push
| Order code | LPSQ104 |
|---|---|
| Weight [g] | 32.21 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 100X132X006 |
| Volume [cm³] | 80.584 |
| Bar code [EAN13] | 8013975295717 |
| HS Code | 85365080 |
16.68 £
| Feature Name | Feature Value |
|---|---|
| Suitable for degree of protection (IP) (EF006755) | Other |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Engage (snap) |
| Material (EF002169) | Metal |
| Material quality (EF001257) | Aluminium |
| Surface protection (EF000139) | Other |
| Imprint (EF000131) | None |
| Connection type (EF000124) | Other |
| Model (EF000010) | Single push button |
| Colour (EF000007) | Red |
| Method of operation (EF000006) | Push button |
| Assembly arrangement (EF000005) | Basic unit |
| Mounting method (EF000003) | Surface mounted |
| Anti-bacterial treatment (EF023790) | No |
| Contactless type (EF015811) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| IFTTT support available (EF011072) | No |
| Transparent (EF006243) | No |
| With light source (EF005905) | No |
| With lighting (EF003829) | No |
| Feedback-signal contact (EF001181) | No |
| Label space/information surface (EF001035) | No |
| With signal lamp (EF000198) | No |
| Halogen free (EF000025) | Yes |
| Number of revolving contacts (EF015810) | 0 |
| Min. depth of built-in installation box (EF012278) | 0 mm |
| Number of modules (module system) (EF009573) | 0 |
| Device depth (EF008810) | 10 mm |
| Device height (EF008809) | 29.5 mm |
| Device width (EF008808) | 29.5 mm |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of rockers (EF003816) | 0 |
| Number of poles (EF001391) | 0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
