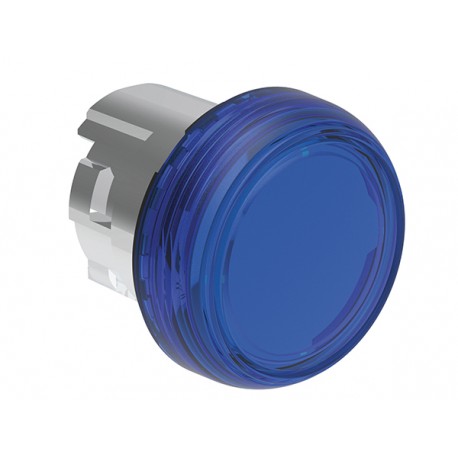

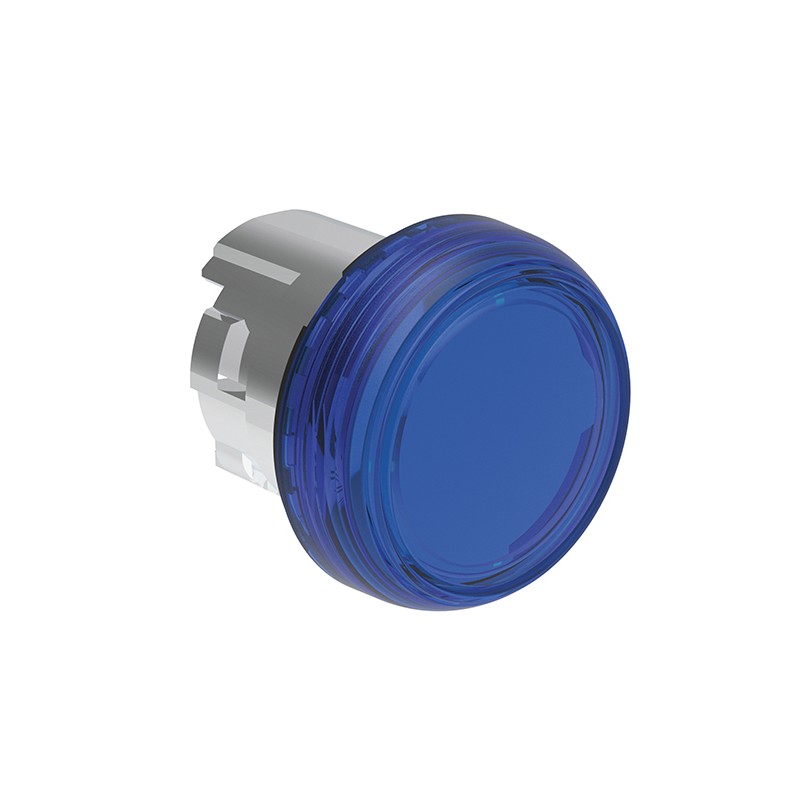

LPSL6 LOVATO BLUE PILOT LIGTH METAL HEAD
LPSL6
LOVATO ELECTRIC
BLUE PILOT LIGTH METAL HEAD
Pilot light head Ø22mm Platinum series metal, blue. Without mounting adapter
Pushbuttons and selector switches - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | LPSL6 |
| Weight [g] | 29 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 390X285X145 |
| Volume [cm³] | 80.584 |
| Bar code [EAN13] | 8013975269077 |
| HS Code | 85366190 |
Dimensions
Certifications:
cULus
cULus
Compliance:
IEC/EN/BS 60947-1
IEC/EN/BS 60947-5-1
UL508
CSA C22.2 n° 14
IEC/EN/BS 60947-1
IEC/EN/BS 60947-5-1
UL508
CSA C22.2 n° 14
| Product designation | Pilot light head | |||
| Product type designation | LPSL | |||
| General characteristics | ||||
| Colour | Blue | |||
| Material | Aluminium and zinc alloy for metal parts and polyamide for plastic parts | |||
| IEC degree of protection | IP66, IP67 and IP69K | |||
| Mechanical features | ||||
| Fixing | Without mounting adapter | |||
| Mounting adapter | LPXAU120M | |||
| UL technical data | ||||
| UL degree of protection | Type1, 2, 3R, 4, 4X, 12, 12K | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +85 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC002024 - Accessories/spare parts for command devices | |||
