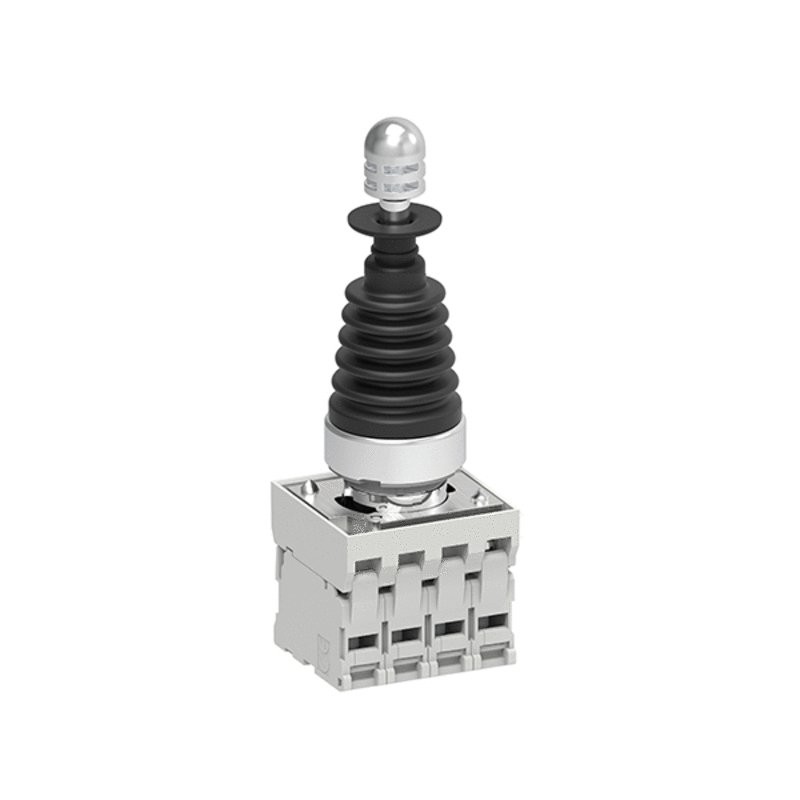

LPSJ411 LOVATO Joysticks With mechanical interlocking in central position 4 Fixed Positions 4 NA
LPSJ411
LOVATO ELECTRIC
Joysticks With mechanical interlocking in central position 4 Fixed Positions 4 NA
Joystick, Ø22mm Platinum series metal, with mechanical interlock. Complete with auxiliary contact, stable, 4NO auxiliary contacts
Pushbuttons and selector switches - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | LPSJ411 |
| Weight [g] | 104 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | |
| Volume [cm³] | |
| Bar code [EAN13] | 8013975297698 |
| HS Code | 85365080 |
cULus
IEC/EN/BS 60947-1
IEC/EN/BS 60947-5-1
UL508
CSA C22.2 n° 14
| Product designation | Joystick | |||
| Product type designation | LPSJ | |||
| General characteristics | ||||
| Type of positions | 4 stable | |||
| Material | Aluminium and zinc alloy for metal parts and polyamide for plastic parts. Sealing boot is NBR rubber | |||
| IEC degree of protection | IP66, IP67 and IP69K | |||
| Electrical characteristics | ||||
| Rated insulation voltage Ui IEC/EN | V | 690 | ||
| IEC Conventional free air thermal current Ith | A | 10 | ||
| UL/CSA and IEC/EN 60947-5-1 designation | A300 Q300 | |||
| Operating current AC15 | ||||
| 12V | A | 6 | ||
| 24V | A | 6 | ||
| 48V | A | 6 | ||
| 120V | A | 6 | ||
| 240V | A | 3 | ||
| Operating current DC13 | ||||
| 12V | A | 0.55 | ||
| 24V | A | 0.55 | ||
| 48V | A | 0.55 | ||
| 125V | A | 0.55 | ||
| 250V | A | 0.27 | ||
| Contact resistance | mΩ | ≤20 | ||
| Mechanical features | ||||
| Mechanical life | cycles | 1000000 | ||
| Tightening torque for terminals max | Nm | 1 | ||
| Terminals screw | Clamp screw with washer | |||
| Mounting adapter | Included with contacts | |||
| UL technical data | ||||
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +60 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC000632 - Control switch, Joystick | |||
