LPSJ400
LOVATO ELECTRIC
1

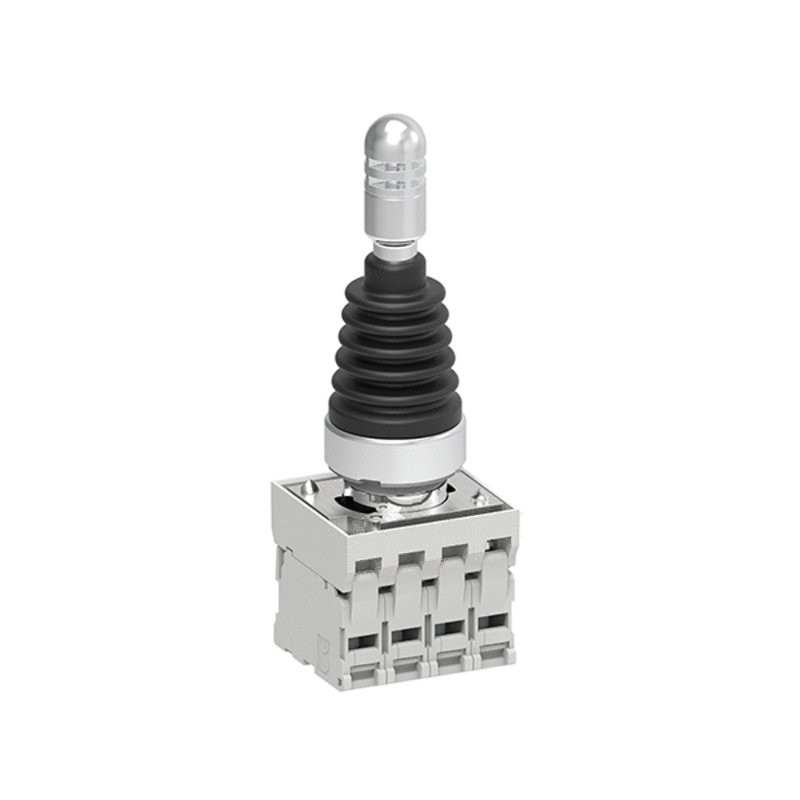

Joysticks Without mechanical interlocking 4 Positions With return 4 NA
Joystick, Ø22mm Platinum series metal, without mechanical interlock. Complete with auxiliary contact, instable, 4NO auxiliary contacts
Pushbuttons and selector switches - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Order code | LPSJ400 |
Weight [g] | 104 |
Qty. per package | 1 |
Multiple qty. of packs per order | 1 |
Package dimensions [mm] | |
Volume [cm³] | |
Bar code [EAN13] | 8013975297643 |
HS Code | 85365080 |
Product designation | Joystick | |||
Product type designation | LPSJ | |||
General characteristics | ||||
Type of positions | 4 instable | |||
Material | Aluminium and zinc alloy for metal parts and polyamide for plastic parts. Sealing boot is NBR rubber | |||
IEC degree of protection | IP66, IP67 and IP69K | |||
Electrical characteristics | ||||
Rated insulation voltage Ui IEC/EN | V | 690 | ||
IEC Conventional free air thermal current Ith | A | 10 | ||
UL/CSA and IEC/EN 60947-5-1 designation | A300 Q300 | |||
Operating current AC15 | ||||
12V | A | 6 | ||
24V | A | 6 | ||
48V | A | 6 | ||
120V | A | 6 | ||
240V | A | 3 | ||
Operating current DC13 | ||||
12V | A | 0.55 | ||
24V | A | 0.55 | ||
48V | A | 0.55 | ||
125V | A | 0.55 | ||
250V | A | 0.27 | ||
Contact resistance | mΩ | ≤20 | ||
Mechanical features | ||||
Mechanical life | cycles | 1000000 | ||
Tightening torque for terminals max | Nm | 1 | ||
Terminals screw | Clamp screw with washer | |||
Mounting adapter | Included with contacts | |||
UL technical data | ||||
UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K | |||
Ambient conditions | ||||
Temperature | ||||
Operating temperature | ||||
min | °C | -25 | ||
max | °C | +60 | ||
Storage temperature | ||||
min | °C | -40 | ||
max | °C | +70 | ||
ETIM classification | ||||
ETIM 8.0 | EC000632 - Control switch, Joystick |
