LPSB7212
LOVATO ELECTRIC
1

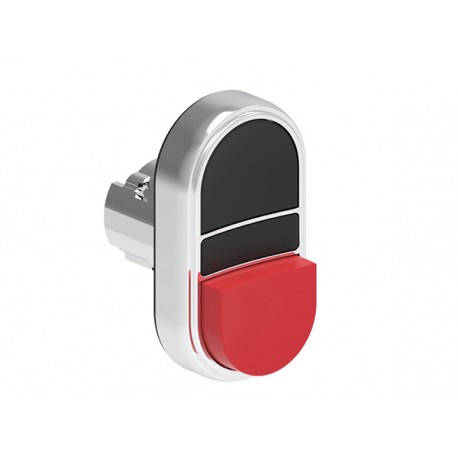

Double Metal Pushbutton with 1 protruding button and 1 grade Black/Red
Double-touch actuator, spring return Ø22mm Platinum series metal, 1 extended and 1 flush pushbuttons. Both spring return, Black - Red
Pushbuttons and selector switches - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Order code | LPSB7212 |
Weight [g] | 35 |
Qty. per package | 1 |
Multiple qty. of packs per order | 1 |
Package dimensions [mm] | 390X285X145 |
Volume [cm³] | 80.584 |
Bar code [EAN13] | 8013975294482 |
HS Code | 85365080 |
Product designation | Double-touch actuators, spring return - One extended and one flush pushbuttons | |||
Product type designation | LPSB72 | |||
General characteristics | ||||
Colour | Black/Red | |||
Material | Aluminium and zinc alloy for metal parts and polyamide for plastic parts | |||
IEC degree of protection | IP66, IP67 and IP69K | |||
Mechanical features | ||||
Fixing | Without mounting adapter | |||
Mounting adapter | LPXAU120M | |||
UL technical data | ||||
UL degree of protection | Type1, 2, 3R, 4, 4X, 12, 12K | |||
Ambient conditions | ||||
Temperature | ||||
Operating temperature | ||||
min | °C | -25 | ||
max | °C | +70 | ||
Storage temperature | ||||
min | °C | -40 | ||
max | °C | +85 | ||
ETIM classification | ||||
ETIM 8.0 | EC000029 - Push-switch button |
