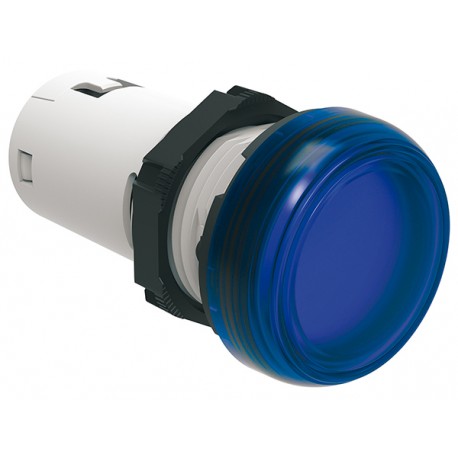

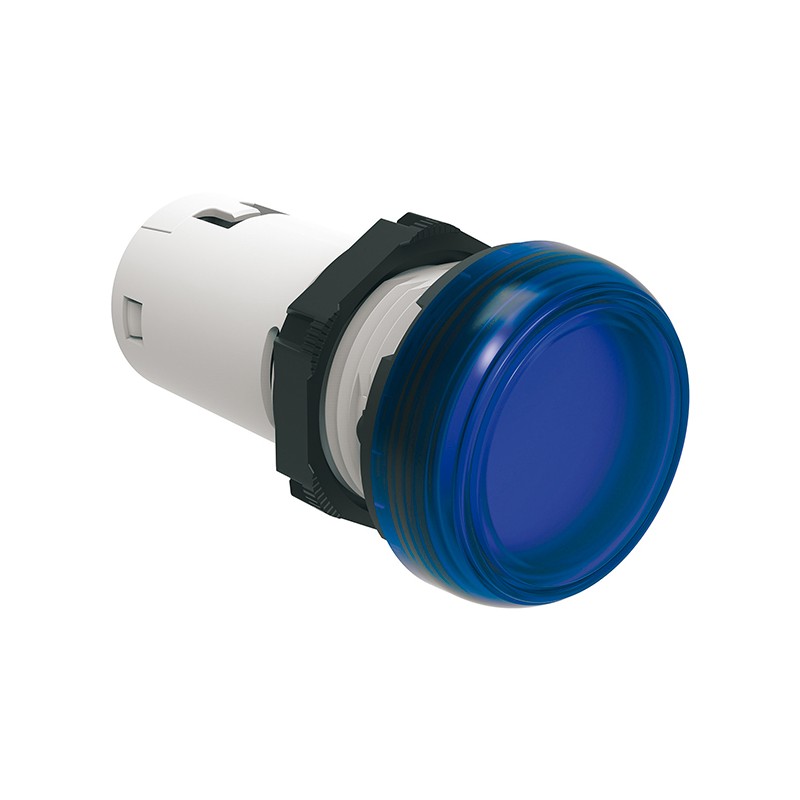

LPMLP6 LOVATO MONOBL. BLUE LED PILOT LIGHT 380-415VAC
LPMLP6
LOVATO ELECTRIC
MONOBL. BLUE LED PILOT LIGHT 380-415VAC
LED integrated monoblock pilot light, steady light Ø22mm Platinum series chromed plastic, blue, 380...415VAC
Pushbuttons and selector switches - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | LPMLP6 |
| Weight [g] | 23.65 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 190X065X057 |
| Volume [cm³] | 70.395 |
| Bar code [EAN13] | 8013975245361 |
| HS Code | 85365080 |
cULus
EAC
IEC/EN/BS 60947-1
IEC/EN/BS 60947-5-1
UL508
CSA C22.2 n° 14
| Product designation | LED integrated monoblock pilot lights steady light | |||
| Product type designation | LPML | |||
| General characteristics | ||||
| Colour | Blue | |||
| Material | Polyamide | |||
| IEC degree of protection | IP66, IP67 and IP69K on front; IP20 on rear | |||
| Electrical characteristics | ||||
| Rated frequency | Hz | 50-60 | ||
| Supply voltage (AC) | V | 380…415 (-15% … +10% Ue) | ||
| Operations | ||||
| Electrical life | hours | >30000 | ||
| Mechanical features | ||||
| Tightening torque for terminals max | Nm | 0.8 | ||
| Conductor section | ||||
| AWG/kcmil conductor section | ||||
| min | 18 | |||
| max | 16 | |||
| IEC | ||||
| min | mm² | 0.5 | ||
| max | mm² | 2.5 | ||
| Weight | g | 24 | ||
| UL technical data | ||||
| UL degree of protection | Type1, 2, 3R, 4, 4X, 12, 12K on front | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +70 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC000272 - Indicator light complete | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
