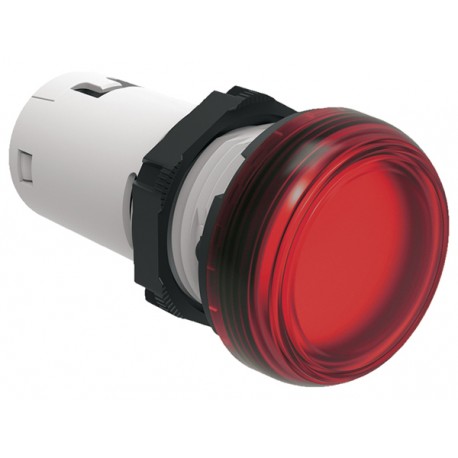

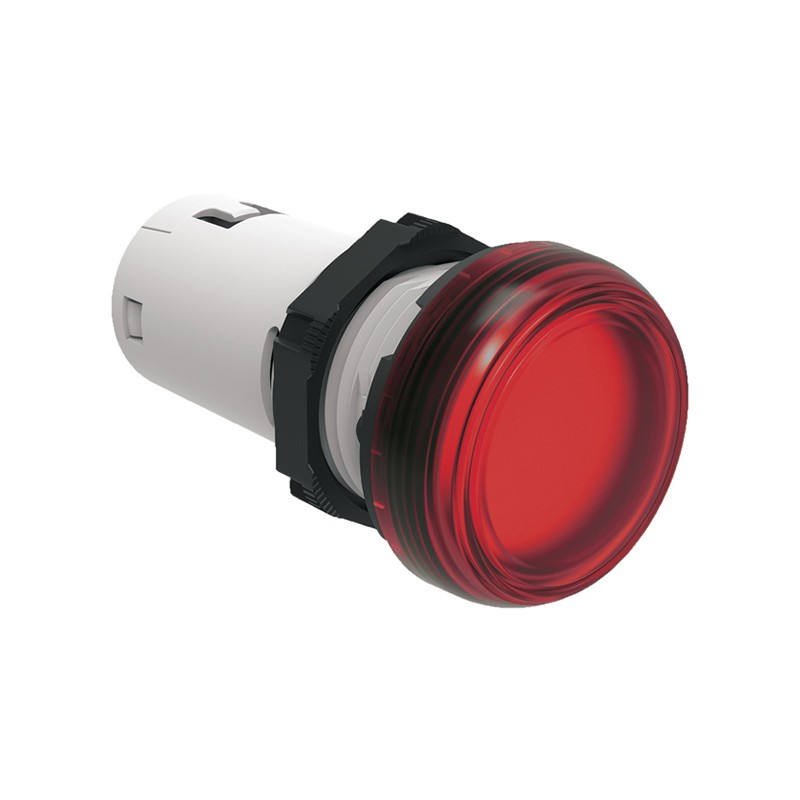

LPMLF4 LOVATO MONOBLOCK RED LED PILOT LIGHT 110VDC
LPMLF4
LOVATO ELECTRIC
MONOBLOCK RED LED PILOT LIGHT 110VDC
LED integrated monoblock pilot light, steady light Ø22mm Platinum series chromed plastic, red, 110VDC
MONOBLOC LED FIXED LIGHT INDICATOR LIGHT Ø22MM PLATINUM SERIES, RED, 110VDC
Low-voltage industrial components > Indicator light complete
Pushbuttons and selector switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Often bought together
▲Best sellers
▲More info
▲LPMLF4
LED integrated monoblock pilot light, steady light Ø22mm Platinum series chromed plastic, red, 110VDC
Technical specifications
- Type of product:
- Monoblock actuators
- Type of actuator:
- LED pilot light
- Series:
- Platinum chromed plastic Ø22mm
- Colour:
- Red
- Symbol:
- No
- Supply voltage:
- 110…125VDC
| Order code | LPMLF4 |
|---|---|
| Weight [g] | 24.09 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 190X065X057 |
| Volume [cm³] | 70.395 |
| Bar code [EAN13] | 8013975245187 |
| HS Code | 85318070 |
8.69 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | 4X |
| Type of lens (EF008343) | Flat |
| Type of lamp socket (EF008229) | LED |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Plastic |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Type of electric connection (EF003961) | Screw connection |
| Colour front ring (EF002429) | Other |
| Colour lens (EF000207) | Red |
| Voltage type (EF000187) | DC |
| Rated operating voltage Ue (EF002418) | 110 V |
| With front ring (EF006014) | Yes |
| With light source (EF005905) | Yes |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of indicator lights (EF001965) | 1 |
| Hole diameter (EF000079) | 22 mm |
Datasheet - PDF
