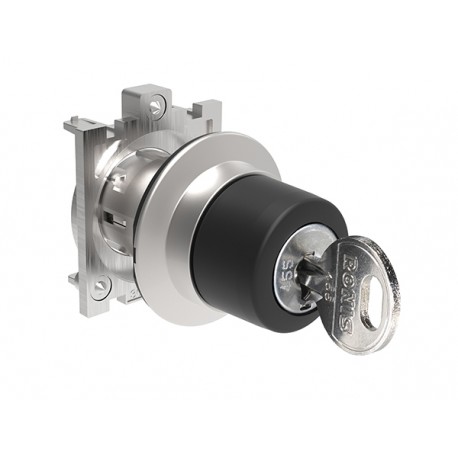

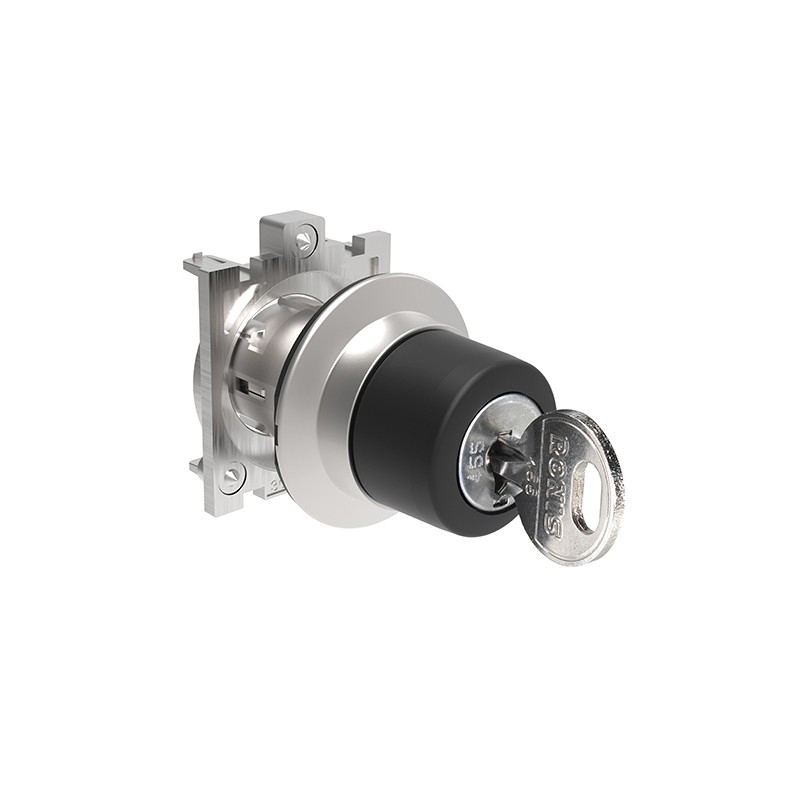

LPFS390R3433E LOVATO KEY METAL FLAT SELECTOR 1-0?2 3433E
LPFS390R3433E
LOVATO ELECTRIC
KEY METAL FLAT SELECTOR 1-0?2 3433E
SELECTOR SWITCH ACTUATOR KEY Ø30MM PLATINUM SERIES FLAT METAL, 3 POSITION, 1 - 0 < 2 WITH DIFFERENT KEY CODE. WITHDRAL AT 1
Pushbuttons and selector switches - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | LPFS390R3433E |
| Weight [g] | 95 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 390X285X145 |
| Volume [cm³] | 161.168 |
| Bar code [EAN13] | 8013975273821 |
| HS Code | 85365080 |
cULus
IEC/EN/BS 60947-1
IEC/EN/BS 60947-5-1
UL508
CSA C22.2 n° 14
| Product designation | Selector switch actuator key - 3 position | |||
| Product type designation | LPFS39 | |||
| General characteristics | ||||
| Type of positions | 1 - 0 < 2, key extraction in 1 | |||
| Material | Aluminium and zinc alloy | |||
| IEC degree of protection | IP66, IP67 and IP69K | |||
| Mechanical features | ||||
| Mechanical life | cycles | 1000000 | ||
| Fixing | Without mounting adapter | |||
| Mounting adapter | LPXAU120M | |||
| UL technical data | ||||
| UL degree of protection | Type1, 2, 3R, 4, 4X, 12, 12K | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +85 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC002611 - Control switch | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
