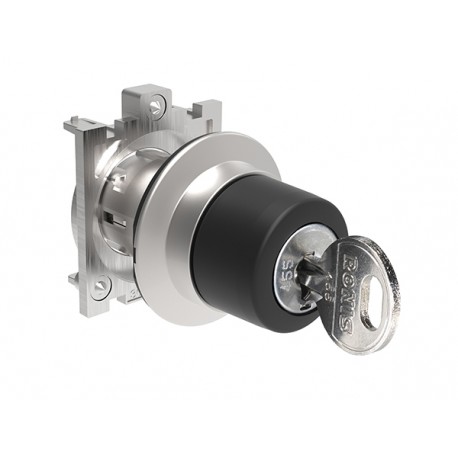

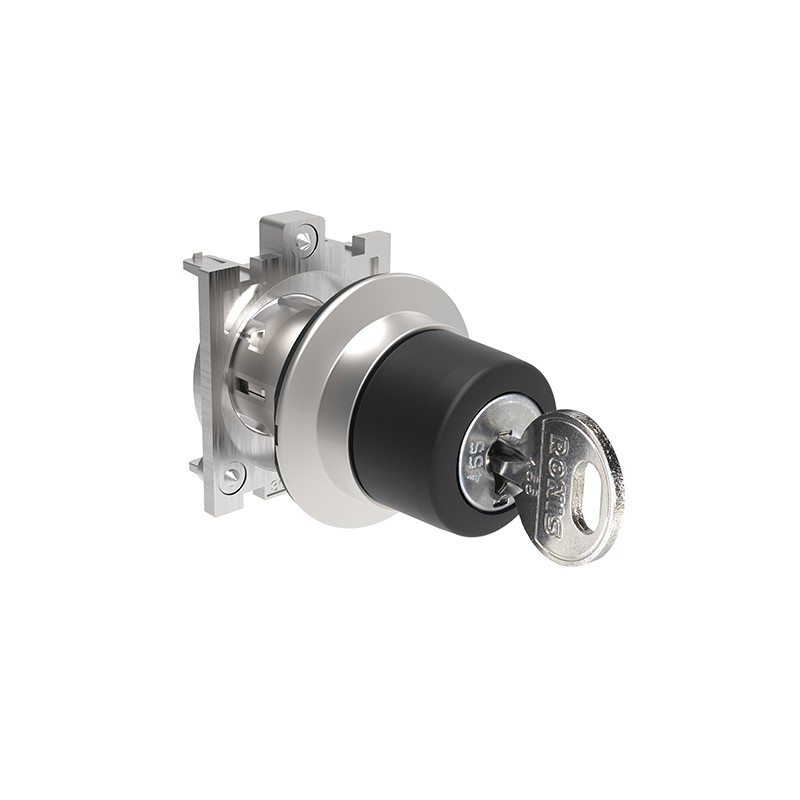

LPFS331R458A LOVATO KEY METAL FLAT SELECTOR 1-0-2 458A
LPFS331R458A
LOVATO ELECTRIC
KEY METAL FLAT SELECTOR 1-0-2 458A
Selector switch actuator key Ø30mm Platinum series flat metal, 3 position, 1 - 0 - 2 with different key code. Withdral at 1 or 0 or 2
Low-voltage industrial components > Control switch
Pushbuttons and selector switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲LPFS331R458A
Selector switch actuator key Ø30mm Platinum series flat metal, 3 position, 1 - 0 - 2 with different key code. Withdral at 1 or 0 or 2
Technical specifications
- Type of product:
- Pushbuttons and selector switches
- Type of actuator:
- 1 - 0 - 2, key extraction in 1 and 0 and 2
- Series:
- Platinum flat metal Ø30mm
- Colour:
- Black
- Illuminated element:
- No
- Type of lever for selector switches:
- Key
- Type of positions for selector switches:
- 3
| Order code | LPFS331R458A |
|---|---|
| Weight [g] | 95 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 160X171X006 |
| Volume [cm³] | 161.168 |
| Bar code [EAN13] | 8013975273371 |
| HS Code | 85365080 |
74.79 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA), front side (EF011961) | 4X |
| Device construction (EF008240) | Surface mounted device |
| Front shield size (EF007176) | Other |
| Type of control element (EF006976) | Key |
| Type of switch (EF003496) | On/Off switch |
| Degree of protection (IP), front side (EF003118) | IP67/IP69K |
| Complete device in housing (EF007317) | No |
| Suitable for intermediate mounting (EF007264) | Yes |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for floor mounting (EF007243) | No |
| With retraction in 0-position (EF002428) | No |
| With zero (off) position (EF001416) | Yes |
| Number of poles (EF001391) | 0 |
| Number of switch positions (EF000231) | 3 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
