LOVATO ELECTRICPushbuttons and selector switches - LOVATO ELECTRICLPFQL105 LOVATO ILL.YELLOW FLUSH PUSH-PUSH MET.FLAT BUTT

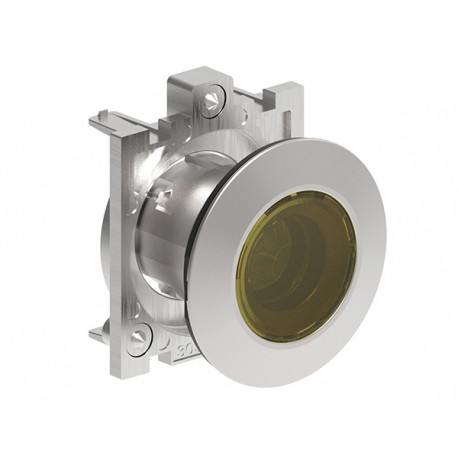

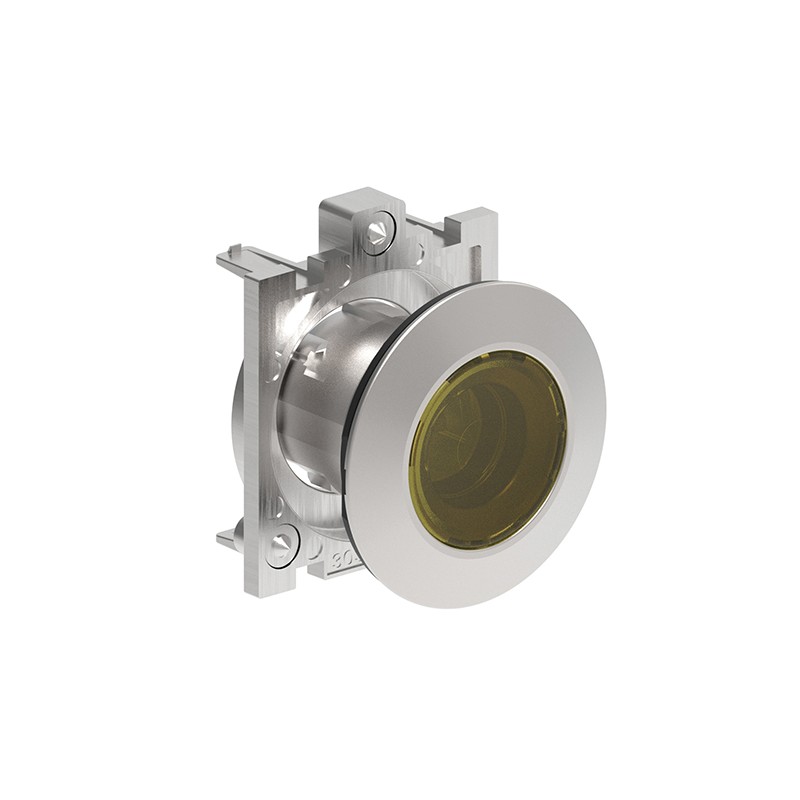

LOVATO ELECTRIC LPFQL105 LPFQL105 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

LPFQL105 LOVATO ILL.YELLOW FLUSH PUSH-PUSH MET.FLAT BUTT

Reference: LPFQL105

Manufacturer: LOVATO ELECTRIC

Description:

ILL.YELLOW FLUSH PUSH-PUSH MET.FLAT BUTT
Illuminated Push-Push button actuator Ø30mm Platinum series flat metal, flush. Push ON-Push OFF, yellow

Categories:

  • Low-voltage industrial components > Front element for push button
  • LOVATO ELECTRIC > Pushbuttons and selector switches - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 34,88 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

LPFQL105

Illuminated Push-Push button actuator Ø30mm Platinum series flat metal, flush. Push ON-Push OFF, yellow

Technical specifications

Type of product:
Pushbuttons
Type of actuator:
Flush
Series:
Platinum flat metal Ø30mm
Colour:
Yellow
Illuminated element:
Yes
Symbol:
No
Latching mechanism:
Push-push
Order codeLPFQL105
Weight [g]70
Qty. per package5
Multiple qty. of packs per order5
Package dimensions [mm]160X171X006
Volume [cm³]161.168
Bar code [EAN13]8013975295618
HS Code85365080

34.25 £

ETIM for LPFQL105 Low-voltage industrial controls and switchgear (EC000221)

Feature nameDegree of protection (NEMA), front side (EF011961)
Feature value4X
Feature nameConstruction type lens (EF006253)
Feature valueRound
Feature nameMaterial front ring (EF005972)
Feature valueMetal
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP67/IP69K
Feature nameType of button (EF001546)
Feature valueOther
Feature nameColour button (EF000190)
Feature valueYellow
Feature nameSwitching function latching (EF007447)
Feature valueNo
Feature nameWith front ring (EF006014)
Feature valueYes
Feature nameWith protective cover (EF005500)
Feature valueNo
Feature nameLabelled (EF001537)
Feature valueNo
Feature nameSpring-return (EF001407)
Feature valueYes
Feature nameSuitable for lighting (EF001142)
Feature valueYes
Feature nameHeight opening (EF004778)
Feature value30 mm
Feature nameWidth opening (EF004565)
Feature value30 mm
Feature nameNumber of command positions (EF001372)
Feature value2
Feature nameHole diameter (EF000079)
Feature value30 mm

DATASHEET - PDF
