> LOVATO ELECTRIC>Pushbuttons and selector switches - LOVATO ELECTRIC>LPFQL104 LOVATO ILL.RED FLUSH PUSH-PUSH MET.FLAT BUTTON
Previous Product Next Product

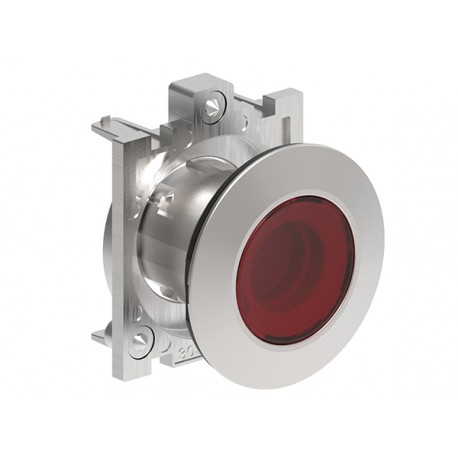

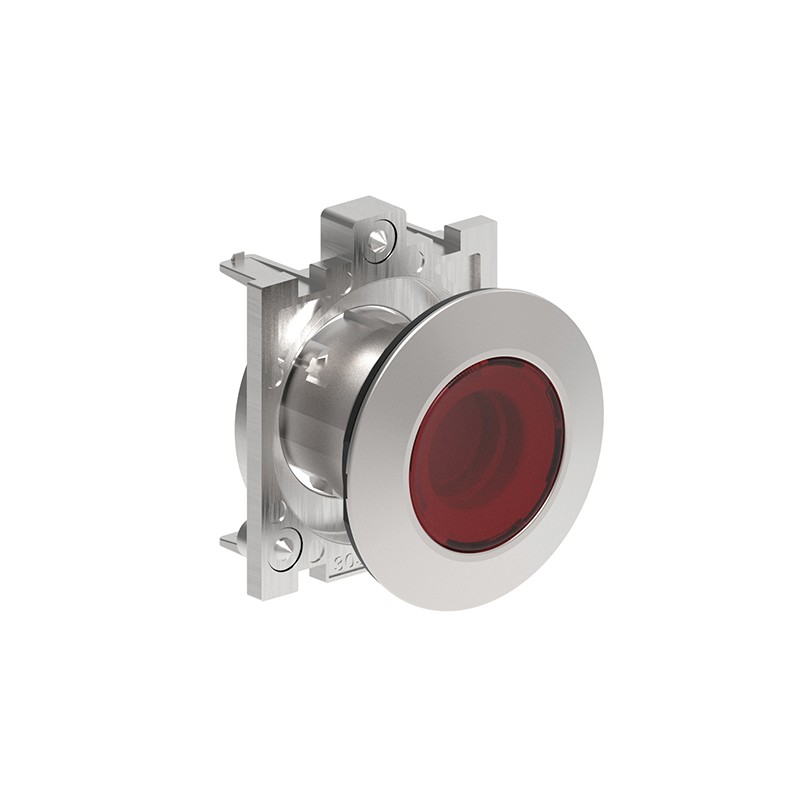

LPFQL104 LOVATO ILL.RED FLUSH PUSH-PUSH MET.FLAT BUTTON View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

LPFQL104 LOVATO ILL.RED FLUSH PUSH-PUSH MET.FLAT BUTTON

LPFQL104

LOVATO ELECTRIC

ILL.RED FLUSH PUSH-PUSH MET.FLAT BUTTON

ILLUMINATED PUSH-PUSH BUTTON ACTUATOR Ø30MM PLATINUM SERIES FLAT METAL, FLUSH. PUSH ON-PUSH OFF, RED

More details


Pushbuttons and selector switches - LOVATO ELECTRIC

* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

Total price: $41.03
Unit price: $41.03

Quantity Price
5+$38.18
10+$34.25
15+$32.66
20+$31.75
25+$31.61
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Order codeLPFQL104
Weight [g]70
Qty. per package1
Multiple qty. of packs per order5
Package dimensions [mm]390X285X145
Volume [cm³]161.168
Bar code [EAN13]8013975295601
HS Code85365080
Dimensions
Certifications:
cULus
Compliance:
IEC/EN/BS 60947-1
IEC/EN/BS 60947-5-1
UL508
CSA C22.2 n° 14
Product designationIlluminated push-push button actuators - Flush
Product type designationLPFQL10
General characteristics
ColourRed
MaterialAluminium and zinc alloy for the metal part, polyamide for plastic parts
IEC degree of protectionIP66, IP67 and IP69K
Mechanical features
FixingWithout mounting adapter
Mounting adapterLPXAU120M
UL technical data
UL degree of protectionType1, 2, 3R, 4, 4X, 12, 12K
Ambient conditions
Temperature
Operating temperature
min°C-25
max°C+70
Storage temperature
min°C-40
max°C+85
ETIM classification
ETIM 8.0EC000221 - Front element for push button

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LOVATO EN.pdf 178 Mbytes
