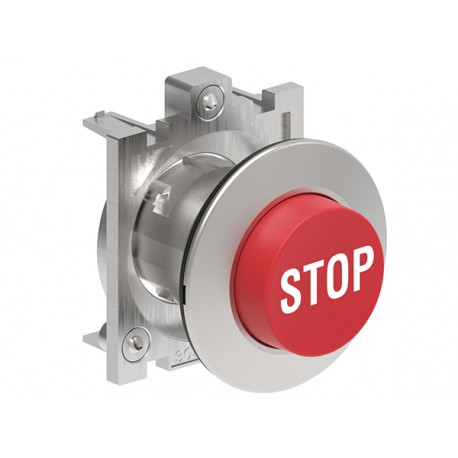

LPFB2134 LOVATO RED EXTENDED MET.FLAT PUSH-BUTTON STOP
LPFB2134
LOVATO ELECTRIC
RED EXTENDED MET.FLAT PUSH-BUTTON STOP
PUSHBUTTON ACTUATOR, SPRING RETURN, WITH SYMBOL Ø30MM PLATINUM SERIES FLAT METAL, EXTENDED, STOP / RED
Pushbuttons and selector switches - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | LPFB2134 |
| Weight [g] | 62 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 390X285X145 |
| Volume [cm³] | 161.168 |
| Bar code [EAN13] | 8013975295113 |
| HS Code | 85365080 |
cULus
IEC/EN/BS 60947-1
IEC/EN/BS 60947-5-1
UL508
CSA C22.2 n° 14
| Product designation | Pushbutton actuators, spring return, with symbol | |||
| Product type designation | LPFB21 | |||
| General characteristics | ||||
| Colour | Red | |||
| Type of positions | Extended | |||
| Material | Aluminium and zinc alloy | |||
| IEC degree of protection | IP66, IP67 and IP69K | |||
| Mechanical features | ||||
| Operating force | kg-lb | <0.5Kg / 1.1Ib | ||
| Mechanical life | cycles | 5000000 | ||
| Fixing | Without mounting adapter | |||
| Mounting adapter | LPXAU120M | |||
| UL technical data | ||||
| UL degree of protection | Type1, 2, 3R, 4, 4X, 12, 12K | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +85 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC000221 - Front element for push button | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
