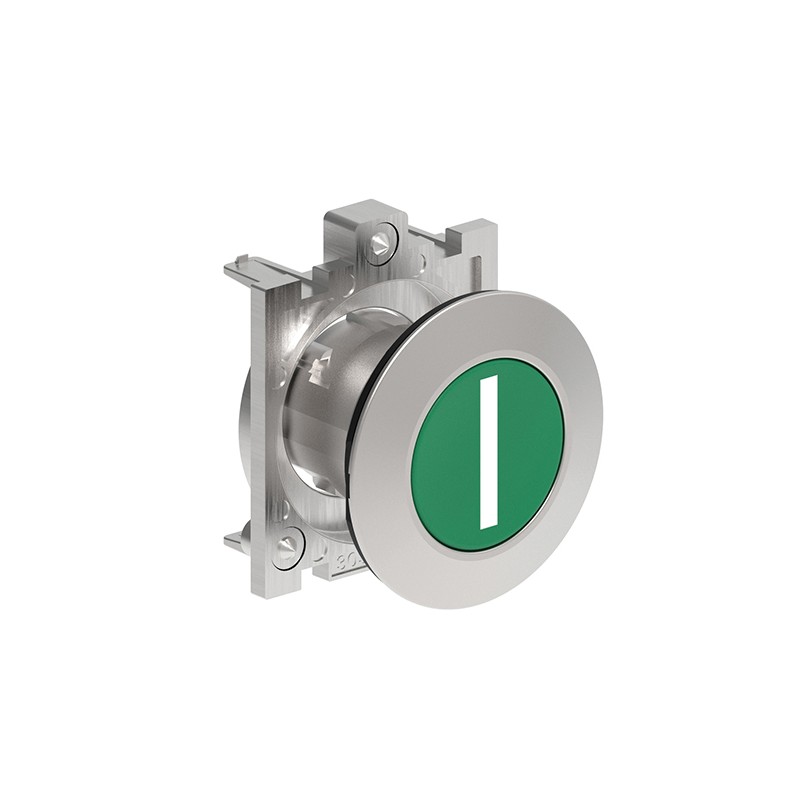

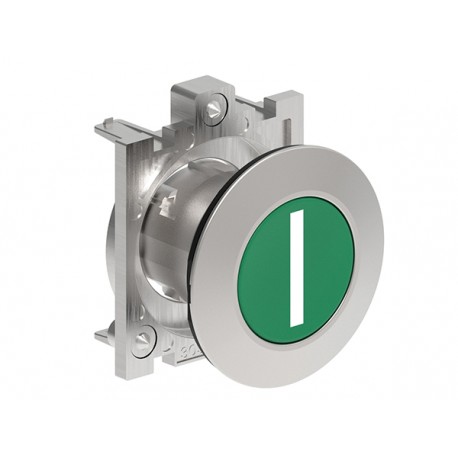

LPFB1113 LOVATO GREEN FLUSH MET.FLAT PUSH-BUTTON I
LPFB1113
LOVATO ELECTRIC
GREEN FLUSH MET.FLAT PUSH-BUTTON I
Pushbutton actuator, spring return, with symbol Ø30mm Platinum series flat metal, flush, I/Green
Low-voltage industrial components > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Best sellers
▲More info
▲LPFB1113
Pushbutton actuator, spring return, with symbol Ø30mm Platinum series flat metal, flush, I/Green
Technical specifications
- Type of product:
- Pushbuttons
- Type of actuator:
- Flush
- Series:
- Platinum flat metal Ø30mm
- Colour:
- Green
- Illuminated element:
- No
- Symbol:
- Yes
- Latching mechanism:
- Spring return
| Order code | LPFB1113 |
|---|---|
| Weight [g] | 60 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 160X171X006 |
| Volume [cm³] | 161.168 |
| Bar code [EAN13] | 8013975294918 |
| HS Code | 85365080 |
13.23 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA), front side (EF011961) | 4X |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Metal |
| Degree of protection (IP), front side (EF003118) | IP67/IP69K |
| Type of button (EF001546) | Other |
| Colour button (EF000190) | Green |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | No |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | No |
| Height opening (EF004778) | 30 mm |
| Width opening (EF004565) | 30 mm |
| Number of command positions (EF001372) | 1 |
| Hole diameter (EF000079) | 30 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
