LPCS131K20 LOVATO Selector actuation lever.
LPCS131K20
LOVATO ELECTRIC
Selector actuation lever.
KIT LPCS131 + 2NA

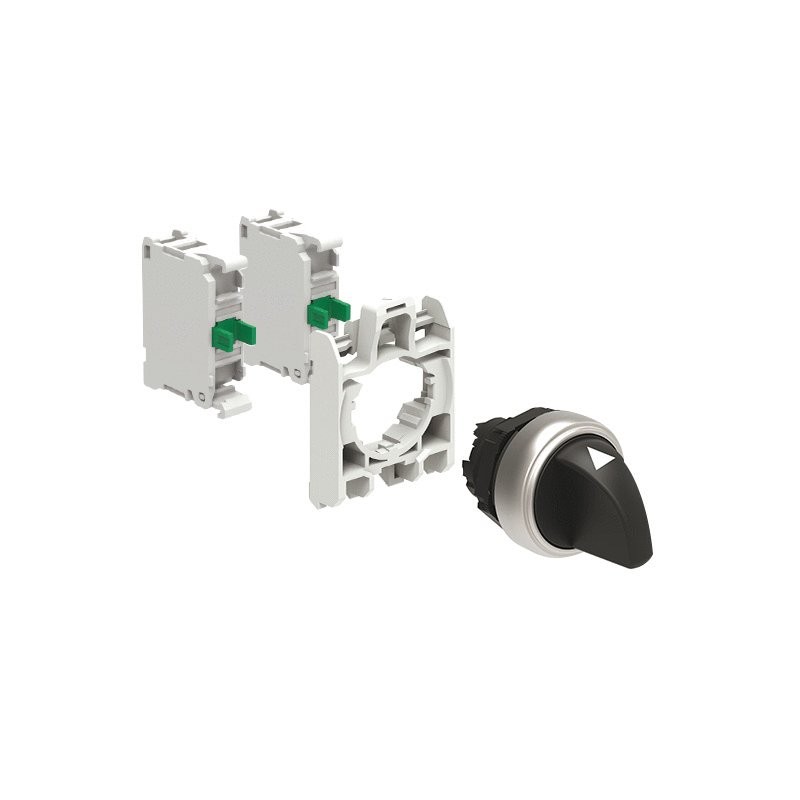

KIT plastic selector switch actuator knob, 3 position, 1 > 0 < 2 with mounting adapter and 2 contact elements, 2NO. Screw termination
Pushbuttons and selector switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲LPCS131K20
KIT plastic selector switch actuator knob, 3 position, 1 > 0 < 2 with mounting adapter and 2 contact elements, 2NO. Screw termination
Technical specifications
- Type of product:
- Selector switches in KIT
- Series:
- Platinum chromed plastic Ø22mm
- Colour:
- Black
- Illuminated element:
- No
- Symbol:
- No
- Type of terminals:
- Screw
- Type of lever for selector switches:
- Short
- Type of positions for selector switches:
- 3
- Complete with mounting adapter:
- Yes
| Order code | LPCS131K20 |
|---|---|
| Weight [g] | 40.8 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 160X171X005 |
| Volume [cm³] | 147.42 |
| Bar code [EAN13] | 8013975319703 |
| HS Code | 85365080 |
26.11 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Type of electric connection (EF003961) | Screw connection |
| Colour front ring (EF002429) | Chrome |
| Colour button (EF000190) | Black |
| Construction type lens (EF006253) | Round |
| Degree of protection (NEMA) (EF011959) | Other |
| Material front ring (EF005972) | Plastic |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of command positions (EF001372) | 2 |
| Hole diameter (EF000079) | 22 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| LPCS131K20 LPCS131K20 EN_LPCS131K20.pdf | 73 Kbytes |
|
