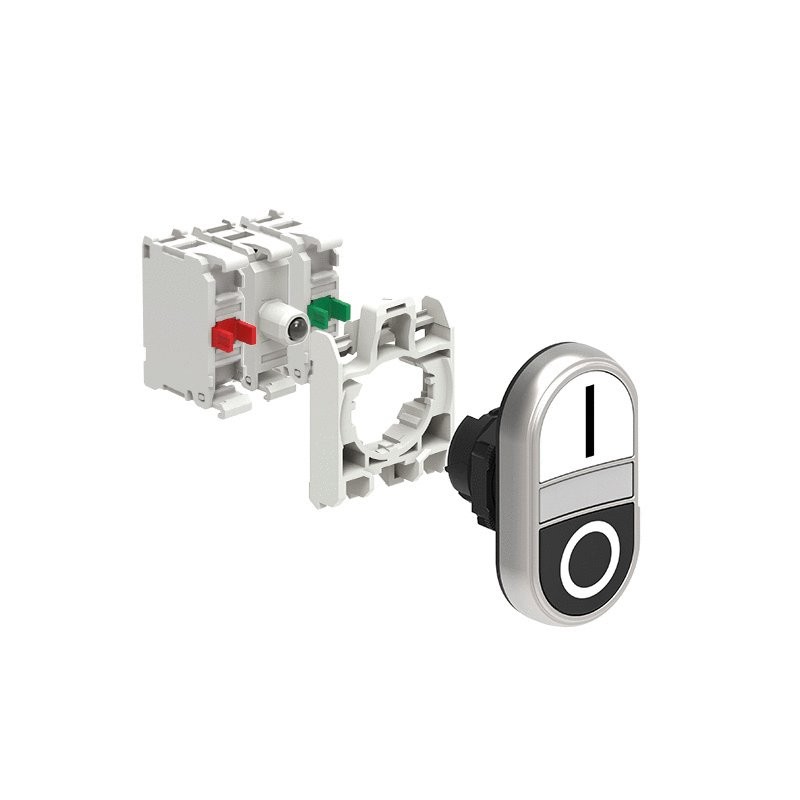

LPCBL7124K11PB LOVATO Double-pulsation actuator, spring return, white indicator
LPCBL7124K11PB
LOVATO ELECTRIC
Double-pulsation actuator, spring return, white indicator
KIT LPCBL7124 + 1NO + 1 NC + LED 24V
KIT plastic double-touch actuator, spring return, white indicator, 2 flush pushbuttons, White Black/I 0 with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC
Pushbuttons and selector switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲LPCBL7124K11PB
KIT plastic double-touch actuator, spring return, white indicator, 2 flush pushbuttons, White Black/I 0 with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC
Technical specifications
- Type of product:
- Pushbuttons in KIT
- Type of actuator:
- Double-touch with two flush pushbuttons
- Series:
- Platinum chromed plastic Ø22mm
- Colour:
- White/Black
- Illuminated element:
- Yes
- Symbol:
- Yes
- Type of terminals:
- Screw
- Latching mechanism:
- Spring return
- Supply voltage:
- 12…30VAC/VDC
- Complete with mounting adapter:
- Yes
| Order code | LPCBL7124K11PB |
|---|---|
| Weight [g] | 66 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 160X171X007 |
| Volume [cm³] | 190.86 |
| Bar code [EAN13] | 8013975319932 |
| HS Code | 85365080 |
46.2 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Type of button (EF001546) | Combination |
| Colour button (EF000190) | Black and white |
| Type of electric connection (EF003961) | Screw connection |
| Construction type lens (EF006253) | Oval |
| Colour front ring (EF002429) | Chrome |
| Degree of protection (NEMA) (EF011959) | Other |
| Material front ring (EF005972) | Plastic |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | Yes |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Supply voltage lamp (EF006522) | 24 V |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of command positions (EF001372) | 2 |
| Hole diameter (EF000079) | 22 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
