LOVATO ELECTRICPushbuttons and selector switches - LOVATO ELECTRICLPCBL7123K11PB LOVATO Double-pulsation actuator, spring return, white indicator

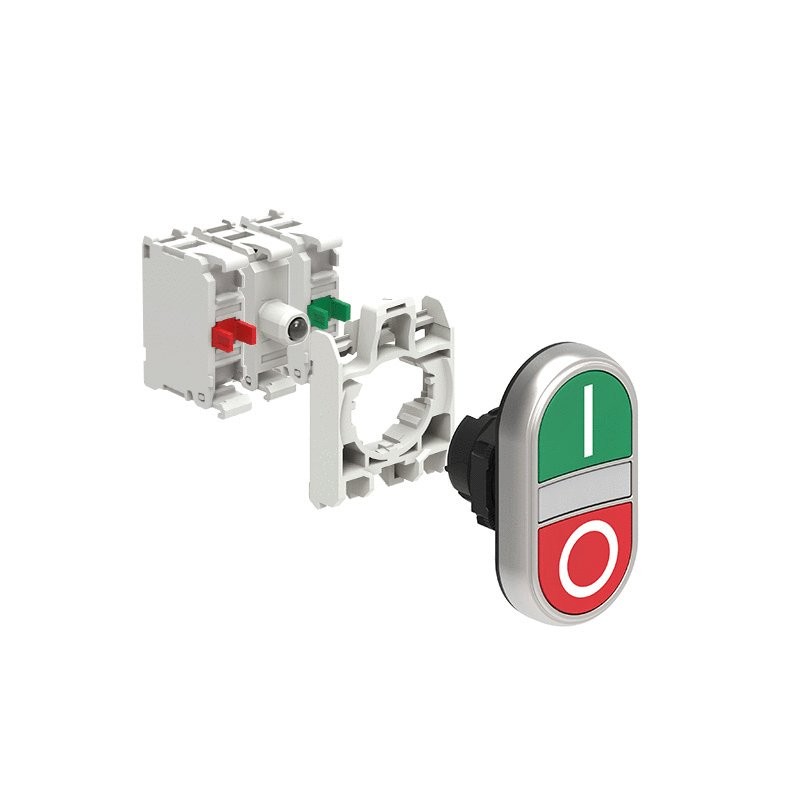

LOVATO ELECTRIC LPCBL7123K11PB - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

LPCBL7123K11PB LOVATO Double-pulsation actuator, spring return, white indicator

Code: LPCBL7123K11PB

Manufacturer: LOVATO ELECTRIC

Description:

Double-pulsation actuator, spring return, white indicator
KIT LPCBL7123 + 1NO + 1 NC + LED 24V
KIT plastic double-touch actuator, spring return, white indicator, 2 flush pushbuttons, Green Red/I 0 with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Categories:

  • LOVATO ELECTRIC > Pushbuttons and selector switches - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 34,80 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

LPCBL7123K11PB

KIT plastic double-touch actuator, spring return, white indicator, 2 flush pushbuttons, Green Red/I 0 with mounting adapter and 2 contact elements, 1NO+1NC. Screw termination. LED integrated lamp-holder, steady light, 12...30VAC/DC

Technical specifications

Type of product:
Pushbuttons in KIT
Type of actuator:
Double-touch with two flush pushbuttons
Series:
Platinum chromed plastic Ø22mm
Colour:
Green/Red
Illuminated element:
Yes
Symbol:
Yes
Type of terminals:
Screw
Latching mechanism:
Spring return
Supply voltage:
12…30VAC/VDC
Complete with mounting adapter:
Yes
Order codeLPCBL7123K11PB
Weight [g]66
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X171X007
Volume [cm³]190.86
Bar code [EAN13]8013975319895
HS Code85365080

46.2 £

ETIM for LPCBL7123K11PB Low-voltage industrial controls and switchgear (EC001028)

Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67/IP69K
Feature nameColour button (EF000190)
Feature valueRed/green
Feature nameType of button (EF001546)
Feature valueCombination
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameConstruction type lens (EF006253)
Feature valueOval
Feature nameColour front ring (EF002429)
Feature valueChrome
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameMaterial front ring (EF005972)
Feature valuePlastic
Feature nameSwitching function latching (EF007447)
Feature valueNo
Feature nameWith front ring (EF006014)
Feature valueYes
Feature nameSpring-return (EF001407)
Feature valueYes
Feature nameSuitable for lighting (EF001142)
Feature valueYes
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value1
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value1
Feature nameSupply voltage lamp (EF006522)
Feature value24 V
Feature nameHeight opening (EF004778)
Feature value22 mm
Feature nameWidth opening (EF004565)
Feature value22 mm
Feature nameNumber of command positions (EF001372)
Feature value2
Feature nameHole diameter (EF000079)
Feature value22 mm
