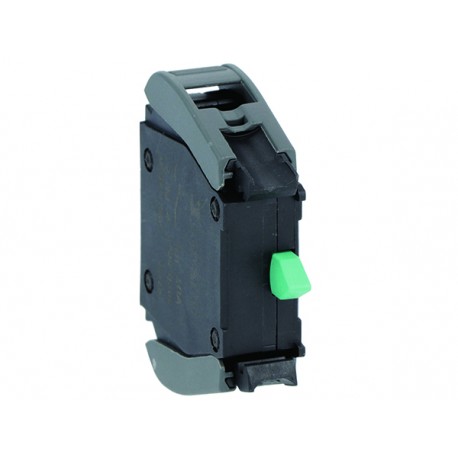

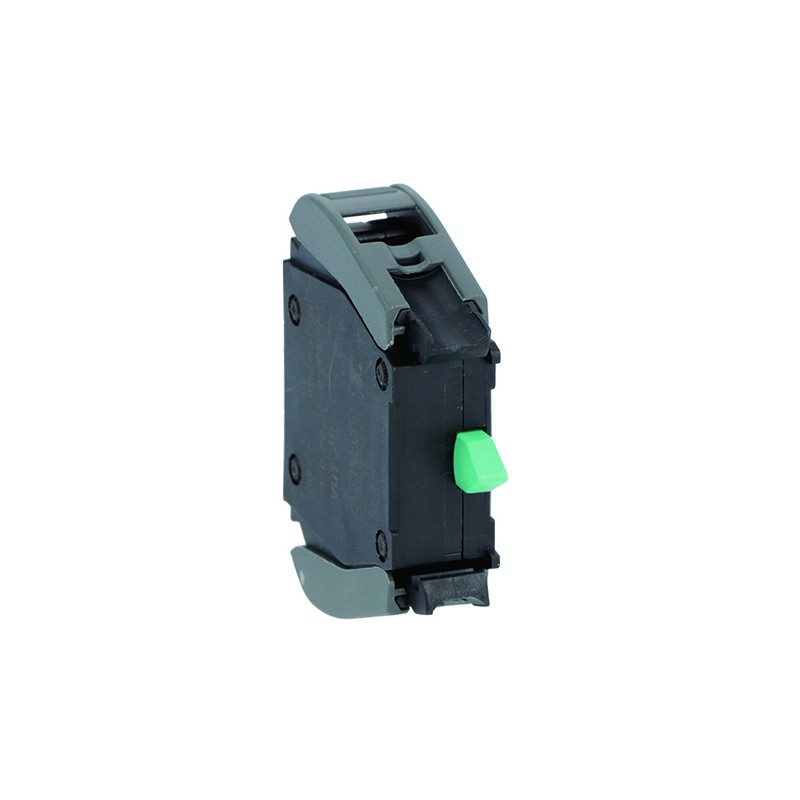

LP9XC10 LOVATO Contact 1NA for LP9...
LP9XC10
LOVATO ELECTRIC
Contact 1NA for LP9...
NO contact for LP9 palm switch
Pushbuttons and selector switches - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | LP9XC10 |
| Weight [g] | 10.3 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 040X030X010 |
| Volume [cm³] | 12 |
| Bar code [EAN13] | 8013975268575 |
| HS Code | 85365080 |
Certifications:
/
/
Compliance:
IEC60947-5-1
IEC60947-5-1
| Product designation | Contact for palm switches | |||
| Product type designation | LP9X | |||
| General characteristics | ||||
| Resistance value | KΩ | ≤0.025 | ||
| Electrical characteristics | ||||
| Rated insulation voltage Ui IEC/EN | V | 690 | ||
| IEC Conventional free air thermal current Ith | A | 10 | ||
| Rated frequency | Hz | 50 | ||
| Conductivity | 5V 10mA | |||
| UL/CSA and IEC/EN 60947-5-1 designation | A600 Q300 | |||
| Operating current AC15 | ||||
| 12V | A | 6 | ||
| 24V | A | 6 | ||
| 48V | A | 6 | ||
| 120V | A | 6 | ||
| 240V | A | 3 | ||
| 400V | A | 1.9 | ||
| 480V | A | 1.5 | ||
| 500V | A | 1.4 | ||
| 600V | A | 1.2 | ||
| Operating current DC13 | ||||
| 12V | A | 3 | ||
| 24V | A | 3 | ||
| 48V | A | 1.5 | ||
| 125V | A | 0.55 | ||
| 250V | A | 0.27 | ||
| 440V | A | 0.15 | ||
| 500V | A | 0.13 | ||
| 600V | A | 0.1 | ||
| Mechanical features | ||||
| Operating force | kg-lb | ≤2.6Nm | ||
| Mechanical life | cycles | 1000000 | ||
| Tightening torque for terminals max | Nm | 0.5 … 0.8 Nm | ||
| Conductor section | ||||
| IEC | ||||
| min | mm² | 0.5 | ||
| max | mm² | 2.5 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +75 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +85 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC002034 - Emergency stop complete | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
