LOVATO ELECTRICHS3D5HV024E230 LOVATO SOLID STATE RELAY 3P 24A WITH HEAT SINK

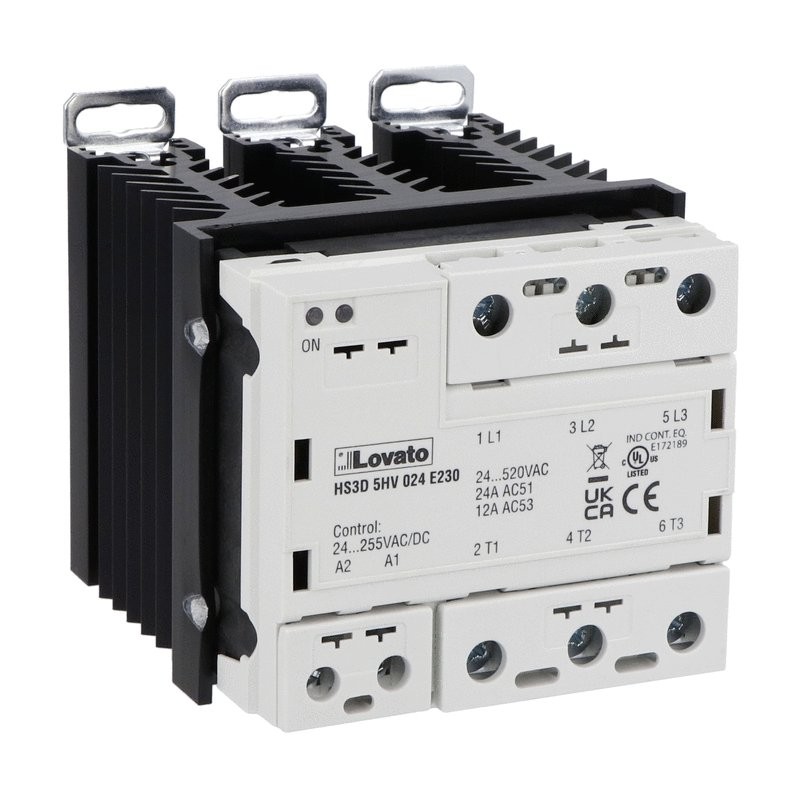

LOVATO ELECTRIC HS3D5HV024E230 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HS3D5HV024E230 LOVATO SOLID STATE RELAY 3P 24A WITH HEAT SINK

Code: HS3D5HV024E230

Manufacturer: LOVATO ELECTRIC

Description:

SOLID STATE RELAY 3P 24A WITH HEAT SINK
Solid state relay complete with heatsink, three-phase (3 controlled), 24A, 24…255VAC/DC, screw terminals
RELE' STATO SOLIDO 3P 24A CON DISSIPATORE

Categories:

  • Relays > Solid state relay
  • LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 184,98 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

HS3D5HV024E230

Solid state relay complete with heatsink, three-phase (3 controlled), 24A, 24…255VAC/DC, screw terminals

Technical specifications

Type of product:
Solid state relays with heatsink, three-phase
Control voltage [V]:
24...255VAC/DC
Rated operational voltage:
24…520
Rated operating current AC-51 (resistive load) at 40°C:
24
Rated operating current AC-53 (motor load) at 40°C:
12
Number of poles:
3
Operating temperature max:
+90
Specific let through energy I2t:
2.8
Type of terminals:
Screw
Order codeHS3D5HV024E230
Weight [g]740
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]126X098X086
Volume [cm³]1061.928
Bar code [EAN13]8013975321782
HS Code85365003

285.77 £

ETIM for HS3D5HV024E230 Relays (EC002055)

Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value24 V
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value24 V
Feature nameRated operation current Ie at AC-53a (EF009489)
Feature value12 A
Feature nameRated operation current Ie at AC-51 (EF009488)
Feature value24 A
Feature nameNumber of phases (EF000351)
Feature value3
