LOVATO ELECTRICHS2C6HV060D024 LOVATO SOLID STATE RELAY 2P 60A WITH HEAT SINK

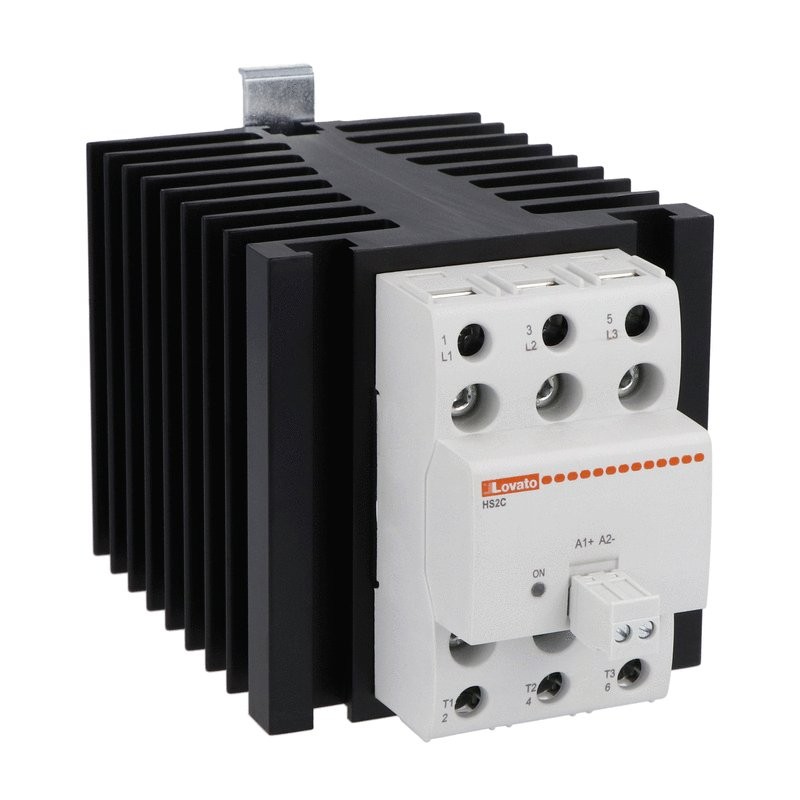

LOVATO ELECTRIC HS2C6HV060D024 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HS2C6HV060D024 LOVATO SOLID STATE RELAY 2P 60A WITH HEAT SINK

Code: HS2C6HV060D024

Manufacturer: LOVATO ELECTRIC

Description:

SOLID STATE RELAY 2P 60A WITH HEAT SINK
Solid state relay complete with heatsink, three-phase (2 controlled), 60A, 4...32VDC, screw terminals
RELE' STATO SOLIDO 2P 60A CON DISSIPATORE

Categories:

  • Relays > Solid state relay
  • LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 193,68 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

HS2C6HV060D024

Solid state relay complete with heatsink, three-phase (2 controlled), 60A, 4...32VDC, screw terminals

Technical specifications

Type of product:
Solid state relays with heatsink, three-phase
Control voltage [V]:
4...32VDC
Rated operational voltage:
48…600
Rated operating current AC-51 (resistive load) at 40°C:
60
Rated operating current AC-53 (motor load) at 40°C:
15
Number of poles:
2
Operating temperature max:
+80
Specific let through energy I2t:
1.4
Type of terminals:
Screw
Order codeHS2C6HV060D024
Weight [g]1900
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]140X140X190
Volume [cm³]3724
Bar code [EAN13]8013975321454
HS Code85364900

367.71 £

ETIM for HS2C6HV060D024 Relays (EC002055)

Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameRated control supply voltage DC (EF003980)
Feature value4 V
Feature nameRated operation current Ie at AC-53a (EF009489)
Feature value15 A
Feature nameRated operation current Ie at AC-51 (EF009488)
Feature value60 A
Feature nameNumber of phases (EF000351)
Feature value3

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE LOVATO EN
99 Mbytes
