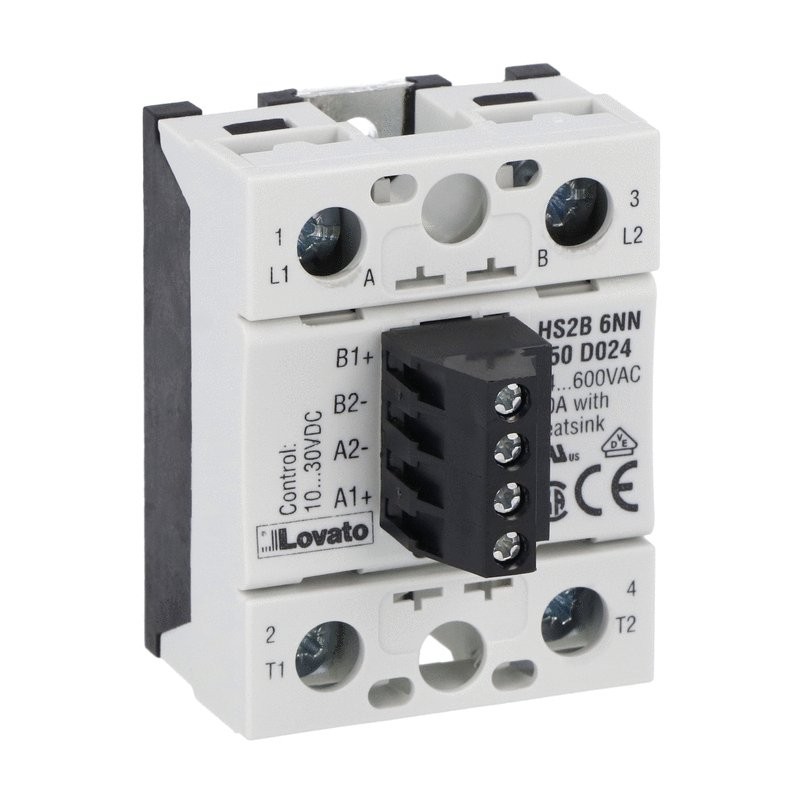

HS2B6NN050D024 LOVATO SOLID STATE RELAY 2P 50A
HS2B6NN050D024
LOVATO ELECTRIC
SOLID STATE RELAY 2P 50A
Hockey puck two-phase, 50A, 10…30VDC, screw terminals
RELE' STATO SOLIDO 2P 50A
Relays > Solid state relay
Home > LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲HS2B6NN050D024
Hockey puck two-phase, 50A, 10…30VDC, screw terminals
Technical specifications
- Type of product:
- Hockey puck, two-phase
- Control voltage [V]:
- 10...30VDC
- Rated operational voltage:
- 24…600
- Rated operating current AC-51 (resistive load) at 40°C:
- 50
- Heatsink for use at 40°C and 55°C at rated current AC-51:
- ≤0.3
- Number of poles:
- 2
- Operating temperature max:
- +90
- Specific let through energy I2t:
- 2.8
- Type of terminals:
- Screw
| Order code | HS2B6NN050D024 |
|---|---|
| Weight [g] | 110 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 069X056X048 |
| Volume [cm³] | 185.472 |
| Bar code [EAN13] | 8013975321706 |
| HS Code | 85365003 |
129.78 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | DC |
| Rated control supply voltage DC (EF003980) | 10 V |
| Rated operation current Ie at AC-51 (EF009488) | 50 A |
| Number of phases (EF000351) | 2 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
