LOVATO ELECTRICHS1B5NV040E230 LOVATO SOLID STATE RELAY 1P 40A

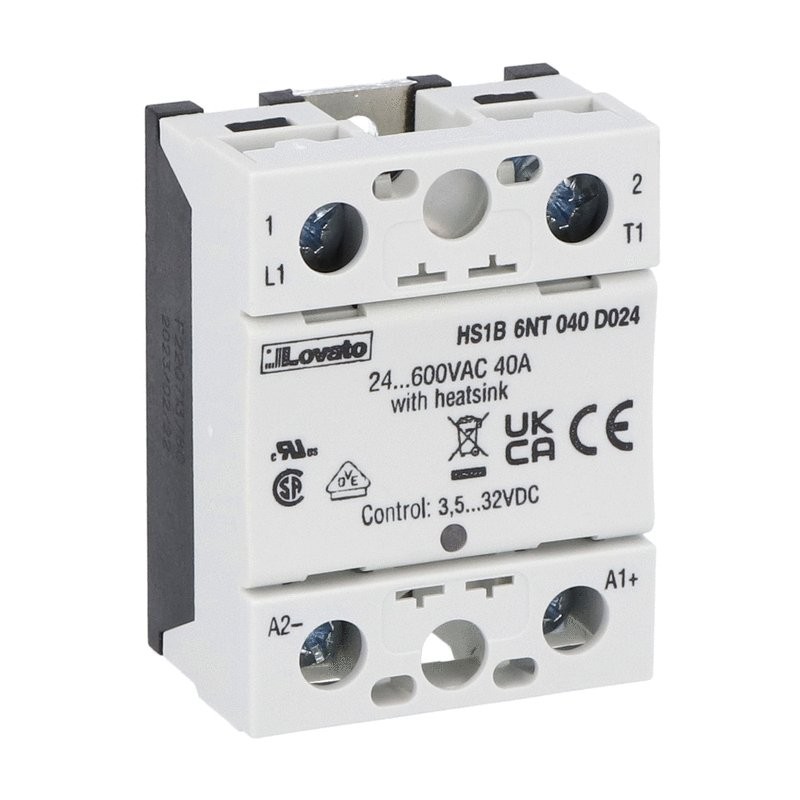

LOVATO ELECTRIC HS1B5NV040E230 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HS1B5NV040E230 LOVATO SOLID STATE RELAY 1P 40A

Code: HS1B5NV040E230

Manufacturer: LOVATO ELECTRIC

Description:

SOLID STATE RELAY 1P 40A
Hockey puck, single-phase, 40A, 20...265VAC/DC, screw terminals
RELE' STATO SOLIDO 1P 40A

Categories:

  • Relays > Solid state relay
  • LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 37,30 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

HS1B5NV040E230

Hockey puck, single-phase, 40A, 20...265VAC/DC, screw terminals

Technical specifications

Type of product:
Hockey puck, single-phase
Control voltage [V]:
20...265VAC/DC
Rated operational voltage:
24…510
Rated operating current AC-51 (resistive load) at 40°C:
40
Rated operating current AC-53 (motor load) at 40°C:
7
Heatsink for use at 40°C and 55°C at rated current AC-51:
≤0.9
Number of poles:
1
Operating temperature max:
+90
Specific let through energy I2t:
1.25
Type of terminals:
Screw
Order codeHS1B5NV040E230
Weight [g]90
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]075X049X038
Volume [cm³]139.65
Bar code [EAN13]8013975321591
HS Code85365003

63.73 £

ETIM for HS1B5NV040E230 Relays (EC002055)

Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameRated control supply voltage DC (EF003980)
Feature value20 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value20 V
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value20 V
Feature nameRated operation current Ie at AC-53a (EF009489)
Feature value7 A
Feature nameRated operation current Ie at AC-51 (EF009488)
Feature value40 A
Feature nameNumber of phases (EF000351)
Feature value1

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE LOVATO EN
99 Mbytes
