LOVATO ELECTRICHS1A2NN025D024 LOVATO SOLID STATE RELAY 1P 25A

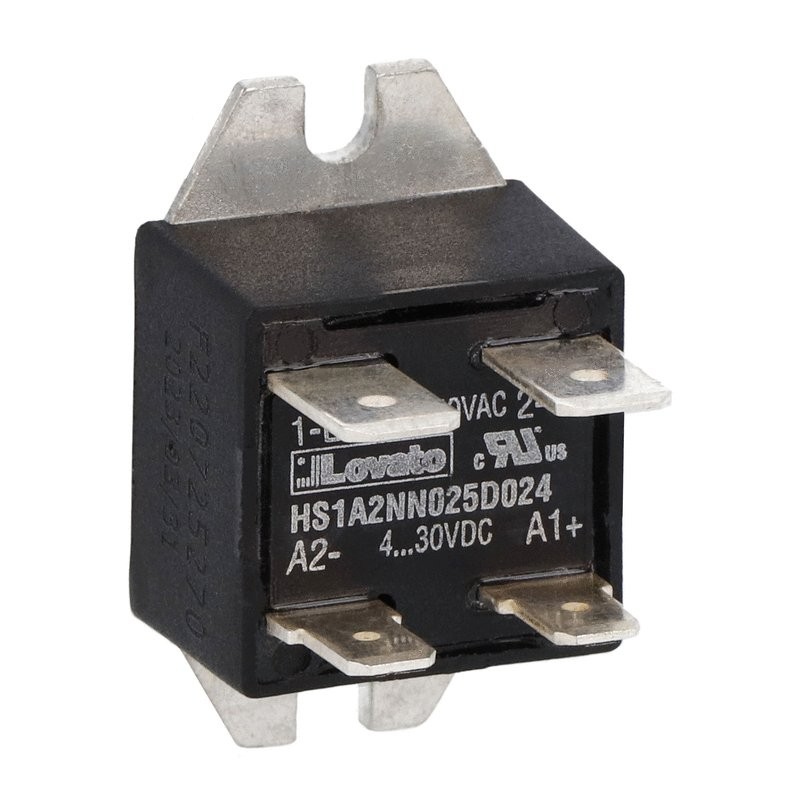

LOVATO ELECTRIC HS1A2NN025D024 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HS1A2NN025D024 LOVATO SOLID STATE RELAY 1P 25A

Code: HS1A2NN025D024

Manufacturer: LOVATO ELECTRIC

Description:

SOLID STATE RELAY 1P 25A
Miniature solid state relay, single-phase, 25A, 4…30VDC, Faston terminals
RELE' STATO SOLIDO 1P 25A

Categories:

  • Relays > Solid state relay
  • LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 17,66 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

HS1A2NN025D024

Miniature solid state relay, single-phase, 25A, 4…30VDC, Faston terminals

Technical specifications

Type of product:
Miniature, single-phase
Control voltage [V]:
4...30VDC
Rated operational voltage:
12...280
Rated operating current AC-51 (resistive load) at 40°C:
25
Rated operating current AC-53 (motor load) at 40°C:
7
Heatsink for use at 40°C and 55°C at rated current AC-51:
≤1.2
Number of poles:
1
Operating temperature max:
+90
Specific let through energy I2t:
340
Type of terminals:
Faston
Order codeHS1A2NN025D024
Weight [g]17.7
Qty. per package4
Multiple qty. of packs per order4
Package dimensions [mm]075X049X038
Volume [cm³]34.912
Bar code [EAN13]8013975321539
HS Code85365003

28.59 £

ETIM for HS1A2NN025D024 Relays (EC002055)

Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameRated control supply voltage DC (EF003980)
Feature value4 V
Feature nameRated operation current Ie at AC-53a (EF009489)
Feature value7 A
Feature nameRated operation current Ie at AC-51 (EF009488)
Feature value25 A
Feature nameNumber of phases (EF000351)
Feature value1

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE LOVATO EN
99 Mbytes
