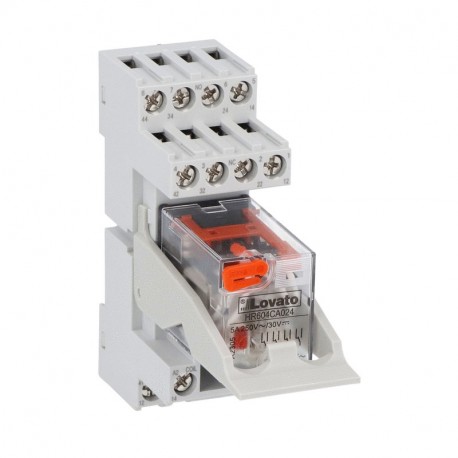

HRA604CA024K4 LOVATO Industrial Relay 4SC 5A 24VAC,LED + Screw
HRA604CA024K4
LOVATO ELECTRIC
Industrial Relay 4SC 5A 24VAC,LED + Screw

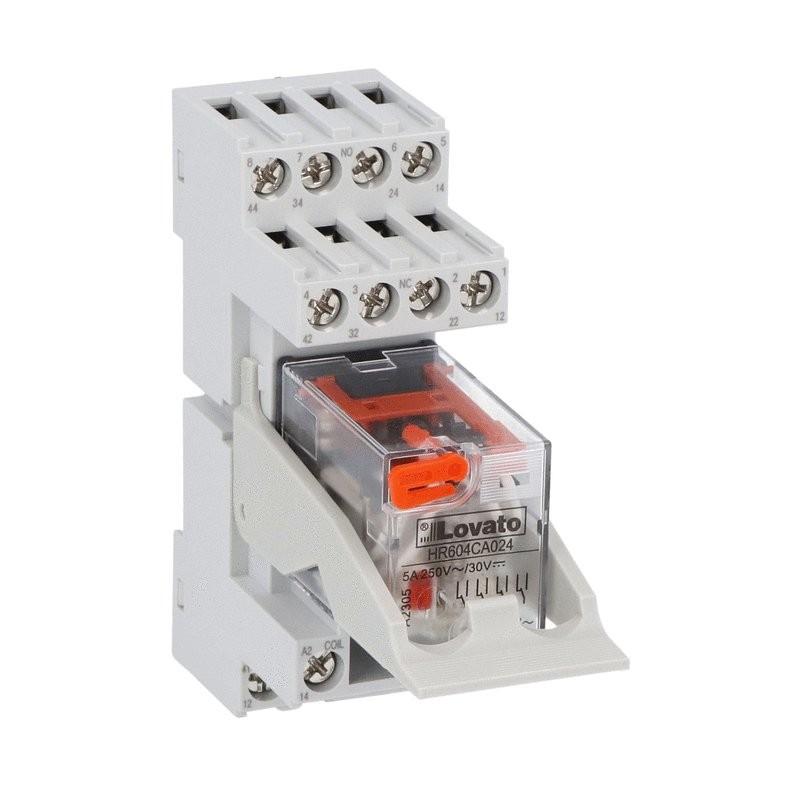

Assembled industrial relay with LED state indicator and mechanical actuator, 24VAC, 5A, 4 C/O contact. Screw terminals with retain/release clip
Relays > Switching relay
Industrial relays
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲HRA604CA024K4
Assembled industrial relay with LED state indicator and mechanical actuator, 24VAC, 5A, 4 C/O contact. Screw terminals with retain/release clip
Technical specifications
- Type of product:
- Assembled industrial relays
- Type of contacts:
- 4 C/O
- Relay control voltage:
- 24VAC
- IEC Conventional free air thermal current Ith [A]:
- 5
- LED state indicator:
- Yes
- Mechanical actuator:
- Yes
- Type of socket:
- Screw terminals
| Order code | HRA604CA024K4 |
|---|---|
| Weight [g] | 126.38 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 140X082X109 |
| Volume [cm³] | 250.264 |
| Bar code [EAN13] | 8013975322321 |
| HS Code | 85364900 |
23.49 £
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Number of contacts as change-over contact (EF008257) | 4 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Nominal current (EF000001) | 5 A |
| With LED indication (EF005950) | No |
| Complete with socket (EF003359) | Yes |
| With forced-guided contacts (EF003357) | No |
| With detachable clamps (EF003340) | No |
| Material of contact insert (EF008521) | Other |
| Voltage type for actuating (EF008242) | AC |
| Material contact (EF007544) | Other |
| Degree of protection (IP) (EF005474) | IP20 |
| Material of contact surface (EF004020) | Other |
| Type of electric connection (EF003961) | Spring clamp connection |
| Type of switch contact (EF003358) | Single contact |
| Drive, switching attitude (EF003356) | Mono stable |
| Drive, polarization (EF003355) | Polarized |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| HRA604CA024K4 EN_HRA604CA024K4.pdf | 205 Kbytes |
|
